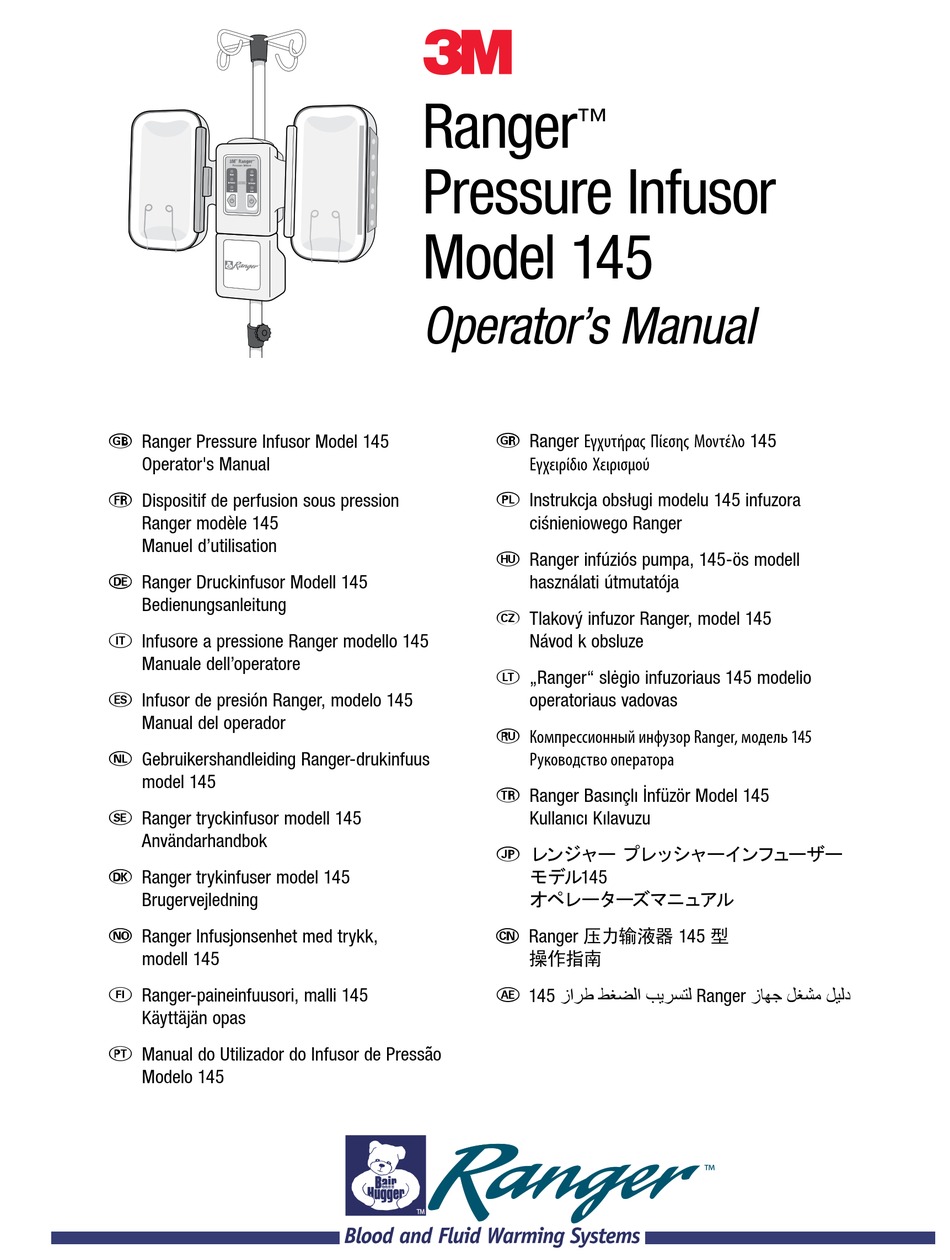

  • Page 1 Ranger ™ Pressure Infusor Model 145 Operator’s Manual 1 Ranger Pressure Infusor Model 145 = Ranger Εγχυτήρας Πίεσης Μοντέλο 145 Operator's Manual Εγχειρίδιο Χειρισμού 2 Dispositif de perfusion sous pression H Instrukcja obsługi modelu 145 infuzora Ranger modèle 145 ciśnieniowego Ranger Manuel d’utilisation J Ranger infúziós pumpa, 145-ös modell 3 Ranger Druckinfusor Modell 145 használati útmutatója...
  • Page 3 Ranger ™ Pressure Infusor Model 145 Operator’s Manual English Français Deutsch Italiano Español Nederland Svenska Dansk Norsk Suomi Português Ελληνικά Polski Magyar Česky Lietuvių Kalba Русский Türkçe 日本語 英语 ‫اللغة العربية‬...

  • Page 4: Revision History

    Revision History Revision Reason for Change Pages Affected Date New Revision - First Release May 2013 Translations added July 2013...

  • Page 5: Table Of Contents

    Table of Contents Section 1: Technical Service and Order Placement � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � Technical service �...

  • Page 7: Section 1: Technical Service And Order Placement

    Servicing All service must be performed by 3M Health Care or an authorized service technician. Call 3M Health Care technical service at 800- 228-3957 for service information. Outside of the U.S. contact your local 3M Health Care representative.
  • Page 8 Technical Service and Order Placement...

  • Page 9: Section 2: Introduction

    Section 2: Introduction Indications for use The 3M™ Ranger™ pressure infusor is intended to provide pressure to I.V. solution bags when rapid infusion of liquids is required. Explanation of symbols The following symbols may appear on the product’s labeling or exterior packaging.

  • Page 10: Explanation Of Signal Word Consequences

    Please consult IEC 60601-1; 2005 for requirements. CAUTION: Recycle to avoid environmental contamination This product contains recyclable parts. For information on recycling - please contact your nearest 3M Service Center for advice. Fuse Explanation of signal word consequences WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 11 Introduction CAUTIONS To prevent tipping, do not mount this unit more than 56” (142 cm) from the floor to the base of the pressure infusor unit. This product is designed for pressure infusion only. Do not sterilize the pressure infusor. To reduce the risks associated with environmental contamination follow applicable regulations when disposing of this device or any of its electronic components.

  • Page 12: Product Description

    Introduction Product description The Ranger pressure infusor can be used with the Ranger blood/fluid warming unit, standard and high flow disposable sets, the Ranger irrigation warming unit, and irrigation warming sets . The infusor can accept solution bags ranging from 250 mL to 1000 mL. The pressure infusor delivers a maximum fluid pressure of 300 mmHg.

  • Page 13: Pressure Infusor Panel

    Introduction Pressure infusor panel The pressure infusor panel displays the status of the pressure infusors. The pressure infusor power indicator illuminates amber (standby) when the main power switch is turned ON and the pressure infusors are able to be turned ON. A green LED indicates that the infusor is ON.
  • Page 14 330 mmHg. If the High condition is observed, the infusor chamber should be turned OFF by using the pressure infusor power button. Use of the infusor chamber should be discontinued immediately, and 3M Health Care technical support contacted for repair and servicing. In Range Visual only: The In Range green indicator flashes as the pressure is increasing in the pressure infusor.

  • Page 15: Section 3: Instructions For Use

    Instructions for Use Section 3: Instructions for Use Attaching the pressure infusor to the I.V. pole Mount the Model 145 pressure infusor onto a Model 90068/90124 pressure infusor I.V. pole/base as shown below. Caution: To prevent tipping, do not mount this unit more than 56" (142 cm) from the floor to the base of the pressure infusor unit. Securely fasten the clamps at the back of the infusor and tighten the knob screws until the infusor is stable.

  • Page 16: Load And Pressurize The Infusors

    Instructions for Use Load and pressurize the infusors Plug the power cord into an appropriately grounded outlet. Using the main power switch located under the pressure infusor, turn the unit ON. Remove excess air from I.V. solution bags and prime. Open pressure infusor door.

  • Page 17: Section 4: Troubleshooting

    All repair, calibration, and servicing of the Ranger pressure infusor requires the skill of a qualified, medical equipment service technician who is familiar with good practice for medical unit repair. All repairs and maintenance should be in accordance with manufacturer’s instructions. For additional technical support contact 3M patient warming. Standby/ON mode...

  • Page 18: Pressure Infusor

    Troubleshooting Pressure infusor Condition Cause Solution Pressure infusor is not Unit is not plugged into the power entry Make sure the power cord is plugged into the power working. module, or power cord is not plugged into an entry module of the pressure infusor. Make sure the appropriately grounded outlet.

  • Page 19: Section 5: Maintenance And Storage

    Wipe the outside of the unit with warm, soapy water, nonabrasive cleaning solutions, diluted bleach, or cold sterilants. Do not use abrasive materials. Contact 3M Patient Warming technical support for a complete list of approved cleaning solutions. Wipe with a dry, soft cloth.
  • Page 20 Maintenance and Storage...

  • Page 21: Section 6: Specifications

    Specifications Section 6: Specifications Physical characteristics Dimensions 15.75 in (40 cm) high 20 in (51 cm) wide, 7.75 in (20 cm) deep Weight 17 lb. (7.7 kg) Mounting Dual clamp Classification Classifed under IEC 60601-1 Guidelines as Class 1, Type BF, Ordinary Equipment. Medical Equipmen t 24RL Classified by Underwriters Laboratories Inc.

  • Page 22: Performance Characteristics

    Specifications Performance characteristics Operating pressure 300 mmHg setpoint Note: • Pressure system is In Range when the pressure infusor bladders are inflated to between 230 mmHg (low) and 330 mmHg (high). If pressure falls below 230 mmHg for more than approximately 30 seconds the Low amber indicator will illuminate and an audible alarm will sound.
  • Page 24 Made in the USA of globally sourced material by 3M Health Care� 3M is a trademark of 3M Company, used under license in Canada� RANGER and the BAIR HUGGER logo are trademarks of Arizant Healthcare Inc�, used under license in Canada� ©2013 Arizant Healthcare Inc� All rights reserved�...
