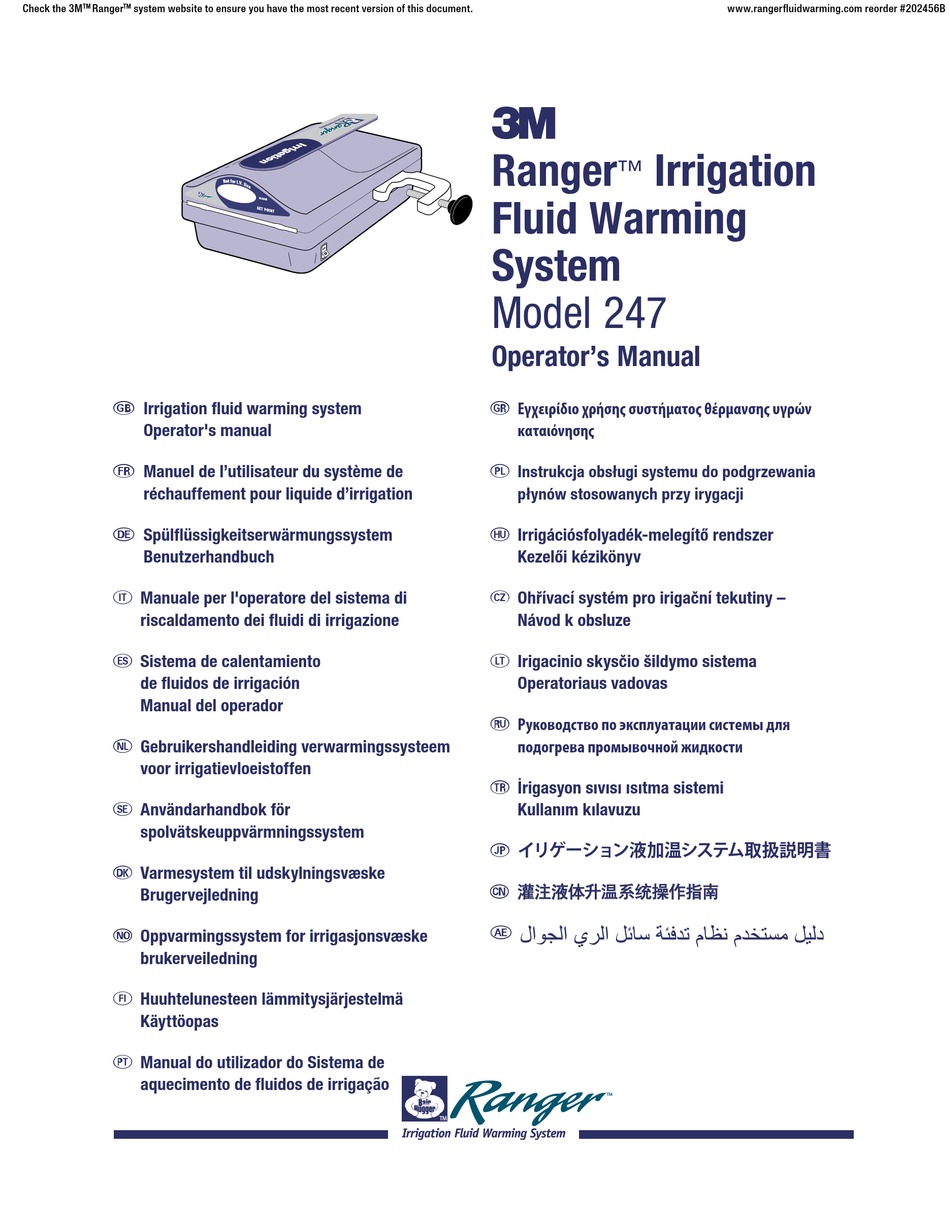

1 Irrigation fluid warming system
Operator's manual
2 Manuel de l'utilisateur du système de
réchauffement pour liquide d'irrigation
3 Spülflüssigkeitserwärmungssystem
Benutzerhandbuch
4 Manuale per l'operatore del sistema di
riscaldamento dei fluidi di irrigazione
5 Sistema de calentamiento
de fluidos de irrigación
Manual del operador
6 Gebruikershandleiding verwarmingssysteem
voor irrigatievloeistoffen
7 Användarhandbok för
spolvätskeuppvärmningssystem
8 Varmesystem til udskylningsvæske
Brugervejledning
9 Oppvarmingssystem for irrigasjonsvæske
brukerveiledning
0 Huuhtelunesteen lämmitysjärjestelmä
Käyttöopas
- Manual do utilizador do Sistema de
aquecimento de fluidos de irrigação
3
Ranger
Irrigation
Fluid Warming
System
Model 247
Operator's Manual
= Εγχειρίδιο χρήσης συστήματος θέρμανσης υγρών
καταιόνησης
H Instrukcja obsługi systemu do podgrzewania
płynów stosowanych przy irygacji
J Irrigációsfolyadék-melegítő rendszer
Kezelői kézikönyv
F Ohřívací systém pro irigační tekutiny –
Návod k obsluze
Q Irigacinio skysčio šildymo sistema
Operatoriaus vadovas
M Руководство по эксплуатации системы для
подогрева промывочной жидкости
: İrigasyon sıvısı ısıtma sistemi
Kullanım kılavuzu
E イリゲーション液加温システム取扱説明書
I 灌注液体升温系统操作指南
U
www.rangerfluidwarming.com reorder #202456B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ranger 247 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3M Ranger 247

  • Page 1 Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B Ranger Irrigation ™ Fluid Warming System Model 247 Operator’s Manual = Εγχειρίδιο χρήσης συστήματος θέρμανσης υγρών 1 Irrigation fluid warming system Operator's manual καταιόνησης...
  • Page 2 Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B...
  • Page 3 Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B Ranger Irrigation Fluid ™ Warming System Model 247 Operator’s Manual English Français Deutsch Italiano Español Nederland Svenska Dansk Norsk Suomi Português...
  • Page 4 Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B...
  • Page 5: Table Of Contents

    Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B English Table of Contents Technical Service and Order Placement ������������������������������������������������������������������������3 In-warranty Repair and Exchange �������������������������������������������������������������������������������3 When You Call for Technical Support ������������������������������������������������������������������������3 Introduction ������������������������������������������������������������������������������������������������������������������4...
  • Page 6 Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B...
  • Page 7: Technical Service And Order Placement

    Contact your local 3M Patient Warming representative. In-warranty Repair and Exchange To return a device to 3M Patient Warming for service, first obtain a Return Authorization (RA) number from a customer service representative. Please use the (RA) number on all correspondence when returning a device for service.
  • Page 8: Introduction

    Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B Ranger Irrigation Fluid Warming System English Introduction The 3M Ranger irrigation fluid warming system is designed to warm irrigation fluids and deliver these at flow rates under gravity up to 867 mL/min when the bag is hung 100 cm above the scope.
  • Page 9: Explanation Of Signal Word Consequences

    Protective earth ground Consult instructions for use Follow instructions for use Recycle to avoid environmental contamination. This product contains recyclable parts. For information on recycling - please contact your nearest 3M Service Center for advice. Date of manufacture Manufacturer Sterile, ethylene oxide...
  • Page 10: Warning

    • Do not continue use of the unit if the over-temperature alert continues to sound and the temperature does not return to the set point temperature. Immediately stop fluid flow and discard the disposable set. Have the warming unit tested by a biomedical technician or call 3M Patient Warming technical service.
  • Page 11: Product Description

    Ranger Irrigation Fluid Warming Unit The warming unit is a compact, lightweight, liquid-resistant device with a clamp located on the side for attachment to an I.V. pole. When mounted to the I.V. pole, the unit fits easily above the 3M Bair Hugger 500 or 700 series warming unit.
  • Page 12: Model 247 Product Safety Features

    Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B Ranger Irrigation Fluid Warming System English Model 247 Product Safety Features The following chart describes the safety alarm features of the Ranger irrigation fluid warming unit.
  • Page 13: Instructions For Use

    Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B Ranger Irrigation Fluid Warming System English Instructions For Use Preparation and Setup of the Ranger Irrigation Fluid Warming Unit 1. Attach the Ranger irrigation fluid warming unit to the I.V. pole. Tighten the pole clamp securely.
  • Page 14: Troubleshooting

    Unit will no longer operate. if temperature rises to 50°C. Turn unit off and unplug it. Discontinue use of unit. Discard disposable set. Alert will continue to sound if you do not unplug unit. Call 3M Patient Warming technical support. Condition Cause Solution...
  • Page 15 Call 3M Patient Warming technical support. Condition Cause Solution Alpha-numeric display Open wire on temperature sensor. Do not use unit. Call 3M Patient reads “Er 4” or “Open.” Warming technical support. Condition Cause Solution Alpha-numeric display Electrical interference.
  • Page 16: Maintenance And Storage

    Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B Ranger Irrigation Fluid Warming System English Maintenance and Storage Cleaning the Ranger Irrigation Fluid Warming Unit Clean the Ranger irrigation fluid warming unit on an as-needed basis.
  • Page 17 There are no user-serviceable parts in the Ranger irrigation fluid warming unit. All service must be performed by 3M Patient Warming or an authorized service technician. Call 3M Patient Warming technical service at 800-733-7775 or 952-947-1200 for service information. Alconox is a trademark of Alconox, Inc.
  • Page 18: Specifications

    Check the 3M Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #202456B Ranger Irrigation Fluid Warming System English Specifications Physical Characteristics warming unit 4.5 in. (11 cm) high x 7.5 in. (19 cm) wide x 10 in. (25 cm) long;...
  • Page 19 3M is a trademark of 3M Company. RANGER, BAIR HUGGER and the BAIR HUGGER logo are trademarks of Arizant Healthcare Inc., used under license in Canada. ©2013 Arizant Healthcare Inc. a 3M company. All rights reserved. 3M Deutschland GmbH, Health Care Business Carl-Schurz-Str.
