1 F-Series Camera Installation
If the Software Override DIP switch is set to the software position (as it is by default), all of the other
DIP switches will be ignored, and configuration changes must be made through software. If the switch
is set to the hardware position, all configuration settings related to serial communications are made
with the DIP switches, and changes that are made via software (with a web browser) will be ignored.

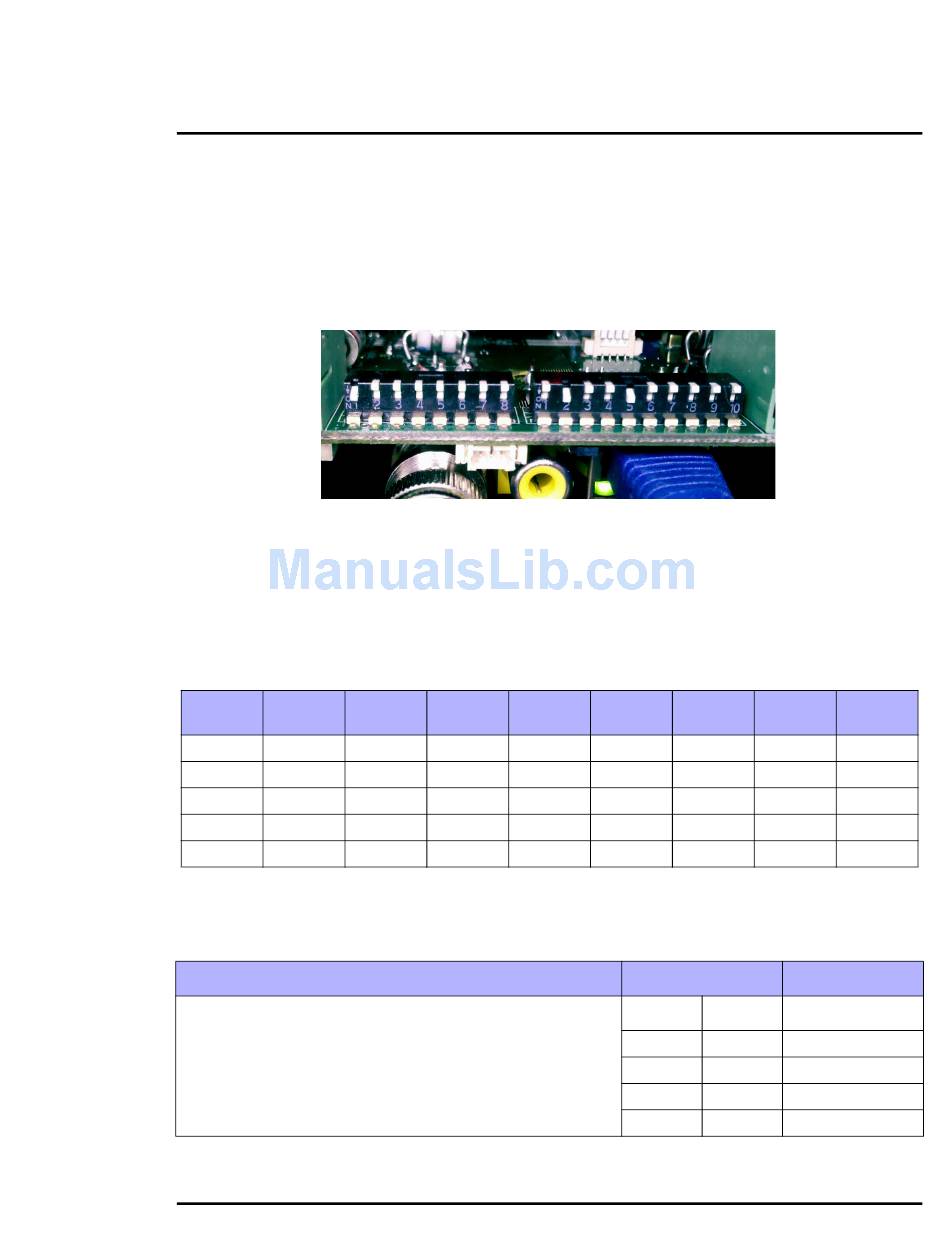

The following image shows the factory default settings, with address 1, 9600 baud, Pelco D, RS-422,
Software Override set to software:
Serial Address: Use the block of switches on the left (SW101) to set the serial address of the
camera. The available range of values is from decimal 1 to 255. The dip switches are interpreted as a
binary number, with switch 1 representing the least significant bit (the switches are in the reverse order
of the bits). For convenience, a table of serial addresses and their binary equivalents is included at the
end of the manual. Refer to
ID
1
2
3
...
255
Other Serial Communication Parameters: The tables below defines the switch locations, bit
numbering and on/off settings used in controlling the other serial communication parameters.
Baud Rate: This is the baud rate of the system user serial
port. The available values are 2400, 4800, 9600, 19200
kbaud.
427-0030-00-12 Version 180
Serial Address: Decimal To Binary Conversion, pg.
Table 1-1: Dip Switch Address/ID Settings—SW101
Sw 1
Sw 2 Sw 3
LSB
On Off Off
Off On Off
On On Off
... ... ...
On On On
Table 1-2: Dip Switch Settings—SW102
Sw 4 Sw 5
Off Off
Off Off
Off Off
... ...
On On
March 2018
37.
Sw 6 Sw 7
Off Off
Off Off
Off Off
... ...
On On
Settings Description
Bit 1 Bit 2
Off Off 2400
On Off 4800
Off On 9600
On On 19200
Sw 8
MSB
Off
Off
Off
...
On
