Torx
wrench
Screws
and anchors
Caution!
Do not disassemble the FB-Series camera. Damage to the camera can occur
as the result of careless handling or electrostatic discharge (ESD).
Before installing the FB-Series camera you should read and understand the
following documents which provide details regarding mechanical dimensions
and installation safety.
•
FLIR FB-Series Installation Manual (427-0064-00-12)
Power: Power Over Ethernet (PoE) or 12 Vdc or 24 Vac
Power terminal plug: wire size from 16 AWG to 20 AWG
Analog Video Cable: BNC-terminated RG-59/U solid-center coax cable
Ethernet Cable: Cat5e or Cat6
I/O terminal plug: not supported
FLIR Systems, Inc.
6769 Hollister Avenue
Goleta, CA 93117
USA
Support:
http://www.flir.com/security/display/?id=71083
427-0064-00-28 Rev 100
Quick Connect Guide
Alarm
plug
Power
plug

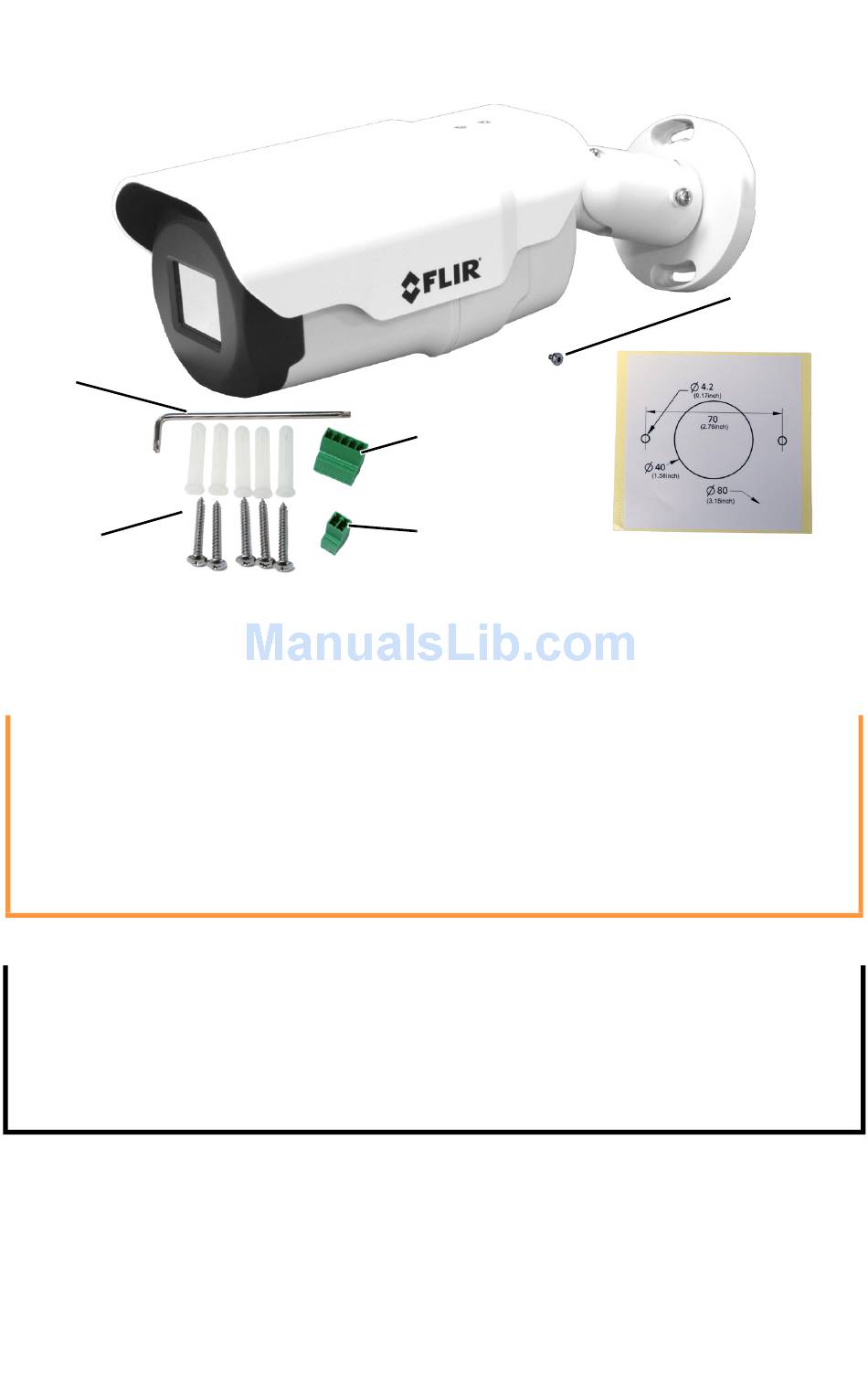

Items Included in Kit
FB-Series Camera
Corporate Headquarters
27700 SW Parkway Ave.
Wilsonville, OR 97070
USA
Torx screw
(spare)
Mounting
template
August 2017
Advertisement
Table of Contents
Related Manuals for FLIR FB-Series
Summary of Contents for FLIR FB-Series
- Page 1 Items Included in Kit Caution! Do not disassemble the FB-Series camera. Damage to the camera can occur as the result of careless handling or electrostatic discharge (ESD). Before installing the FB-Series camera you should read and understand the following documents which provide details regarding mechanical dimensions and installation safety.
- Page 2 Figure 1-1: Camera Connections Connection Purpose Analog video Green barrel not supported Purple D- not supported Grey D+ Pink barrel not supported PoE power, communications, IP video Ethernet stream 5-pin plug not supported 2-pin plug Vac or Vdc power 427-0064-00-28 Rev 100 August 2017...
- Page 3 Power the camera. Use a PC connected to the camera network and the DNA utility to discover the camera. a.Download the DNA utility (2.1.3.15 or later) from: http://www.flir.com/security/display/?id=73533. b. Un-zip the utility, then double-click and run the executable file DNA.exe. All the units on the VLAN are discovered.
- Page 4 Step 3 Point camera. Setting the final scene view of the camera may require two people; one to view the video, the other to point the camera. Typically direct the camera towards the ground with a tilt angle α of 45° to 60°.
