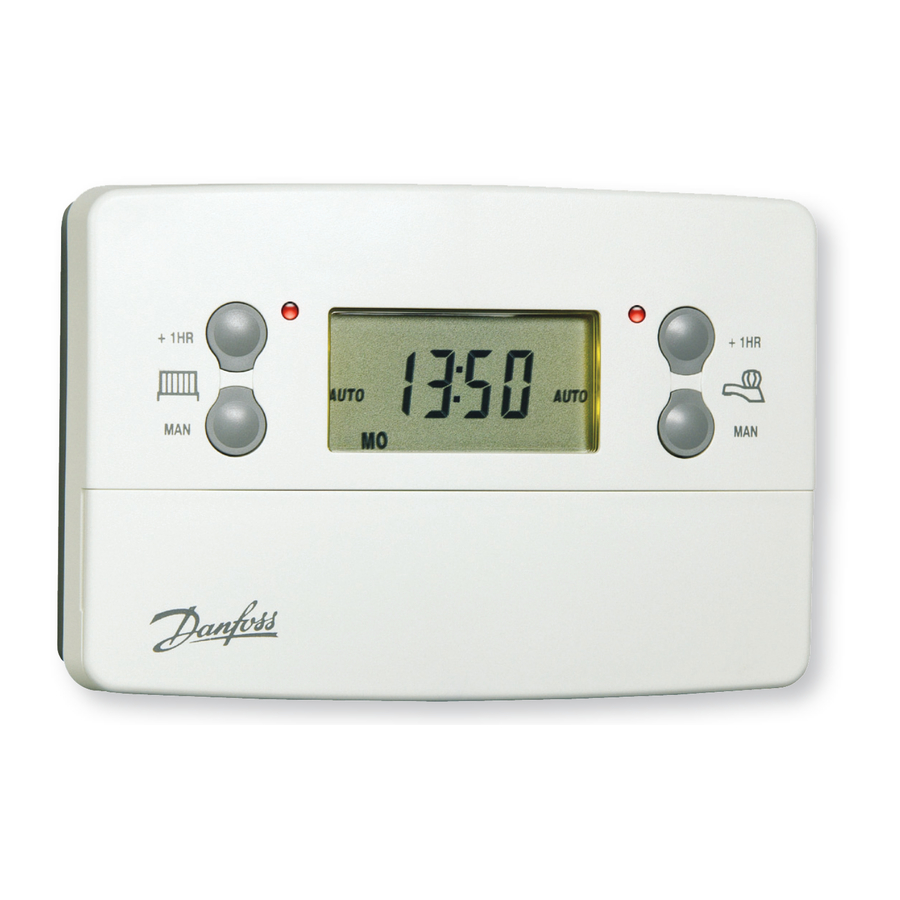

Danfoss TP9000 Si User Instructions

TP9000 Si
User Instructions
Before beginning programming, you should reset the unit. Open the flap on the
front of the clock. Press the RESET button using a non-metallic object (e.g. end of a
bic biro pen top). (Fig 1)
A. Setting the correct Time and Day
The time and date are factory set and do not need to be set.
B. Accepting the Factory Settings
The TP9000 comes ready programmed with a set of Hot Water times and Central Heating
times and temperatures to suit the average household. If you wish to alter these settings
follow instructions below.
Your installer will have set your unit to operate in one of the following modes:
5/2 day – a set of programmes for weekdays and another for weekends
7 day – different settings for each day of the week
24 hour – one set of programmes for the whole week
Please follow the relevant instructions below:
C. Programming your central heating - 5/2 day mode
Monday-Friday
• A)Press the CH/HW button until the CH mode is selected (Fig 2a)
• B) Press PROG to show the 1st pre-set time and temperature (Event 1 Days
mon,tue,wed,thur,fri) (Fig 2b)
• C) Use + or – buttons to adjust the TIME (press and hold to change in 10 min
increments). (Fig 3)
• D) Use Λ or V buttons to adjust the TEMPERATURE. (Fig 4)
• E) Press NEXT to move to next preset time & temp (Event 2) (Fig 5)
• F) Repeat steps c, d and e for programming Events 3, 4, 5 & 6.
Saturday- Sunday
Press DAY/HOL to show 1st pre-set time and temperature (Event 1 Days Sat - Sun) (Fig 6)
(Fig 6)
Repeat steps b, c and d above to programme time and temperature events for
the weekend.
To return to normal operating mode press and hold PROG until screen returns to the current time.
(Fig 7)
D. Programming your central heating - 24 hour mode
• A)Press the CH/HW button until the CH mode is selected (Fig 2a)
• B) Press PROG to show the 1st pre-set time and temperature (Fig 2b)
+ or – buttons to adjust the TIME (press and hold to change in 10 min
• C) Use
increments). (Fig 3)
• D) Use Λ or V buttons to adjust the TEMPERATURE. (Fig 4)
NEXT to move to next preset time & temp (Event 2) (Fig 5)
• E) Press
• F) Repeat steps C, D and E for programming Events 3, 4, 5 & 6.
To return to normal operating mode press and hold PROG until screen returns to the current time.
( Fig 7)
E. Programming your central heating - 7 day mode
CH/HW button until the CH mode is selected (Fig 2a)
• A)Press the
• B) Press PROG to show the 1st pre-set time and temperature (Event 1 Mon) (Fig 2b)
• C) Use + or – buttons to adjust the TIME (press and hold to change in 10 min
increments). (Fig 3)
• D) Use Λ or V buttons to adjust the TEMPERATURE. (Fig 4)
• E) Press NEXT to move to next preset time & temp (Event 2) (Fig 5)
• F) Repeat steps c, d and e for programming Events 3, 4, 5 & 6.
• G) to select the next day, press DAY/HOL and repeat steps c, d, and e
• H) repeat process as necessary to complete programming for all 7 days
To return to normal operating mode press and hold PROG until screen returns to the current
time. (Fig 7)
