Buckets Of Fun RPBOF User Manual page 5

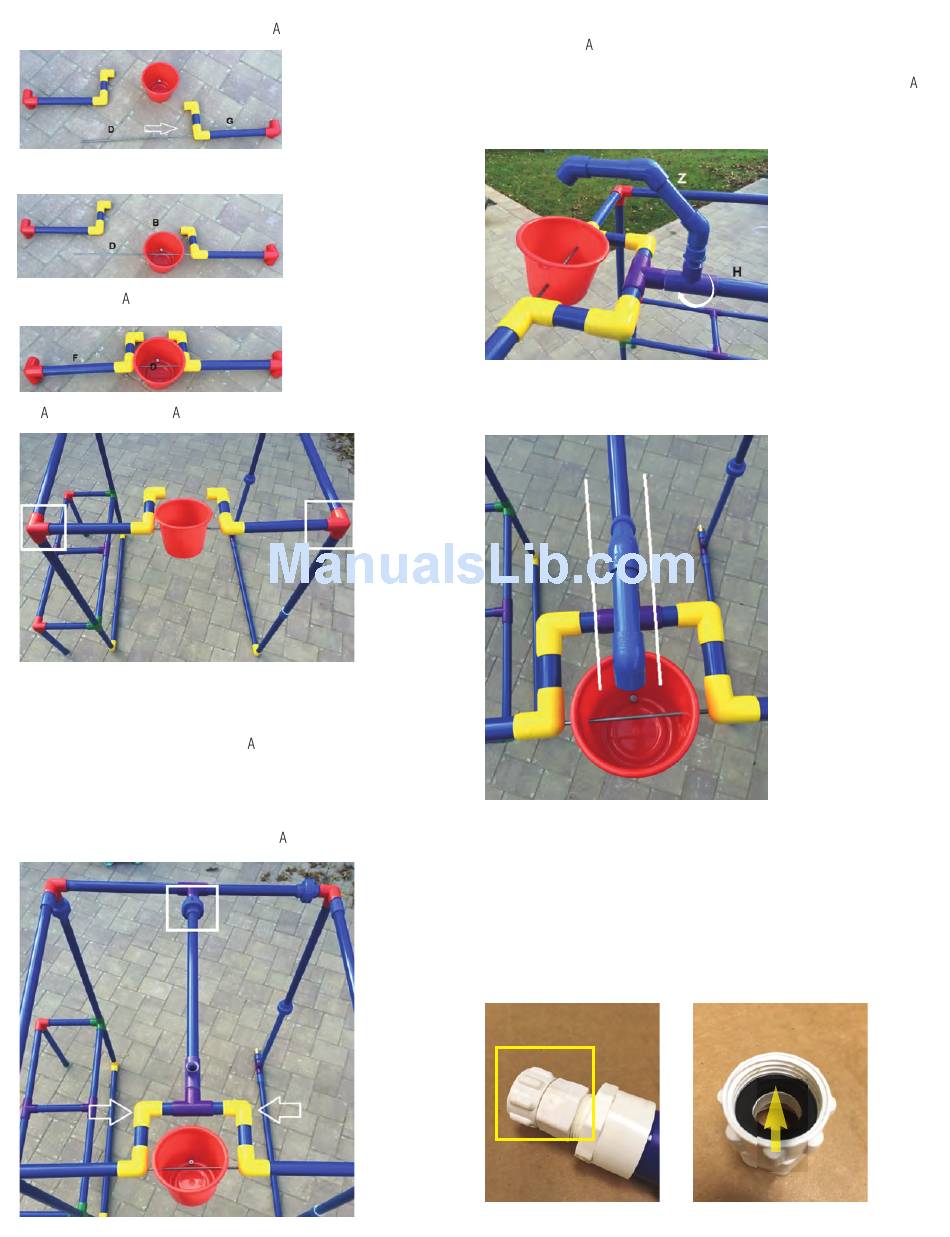

Insert Support Rod (D) into the Right Support rm (G) as shown (Fig. 8B).
Slide Dump Bucket (B) onto Support Rod (D) as shown (Fig. 8C).
Slide Left Support rm (F) onto Support Rod (D) as shown (Fig. 8D).
9. ttach the Dump Bucket ssembly to the waterpark structure as shown (Fig. 9).
NOTE: The Dump Bucket should tilt slightly toward the center of the waterpark. If
it is tilting away from the center, the bucket may be installed backwards - please
check the location of the counterweight.
10. Connect the Bucket Feed Line (Fig 10 and 10B). NOTE: Use an O-ring
when connecting the union.
(1) H Bucket Feed Line
Tighten the union from the Cross Feed Line and secure the front end with
the yellow elbows from the Bucket Support rms as shown (Fig. 10)
.
Fig. 8B
Fig. 8C
Fig. 8D
Fig. 9
Fig. 10
11. Connect the Bucket Spout (Z) to the Bucket Feed Line (H) as
shown (Fig 11 and 11B)
IMPORTANT: Turn from the bottom of the spout, and do NOT over tighten.
snug fit is all that is needed. Do NOT force the spout to finish a rotation. It does
not have to be tightened all the way to work properly.
Ensure that the spout is in line with the Bucket Feed Line and the center of the
Dump Bucket (Fig. 11B).
12. Using a rubber mallet (Do NOT use a metal hammer), lightly tap all the non-
glued components together to ensure they are secure and square.
The assistance of a second person to hold the opposing side when tapping
connections together will make this step easier.
13. Secure the hose connector to the Main Water Feed (K) and ensure the gasket
is in place.
5
Fig. 11A
Fig. 11B
