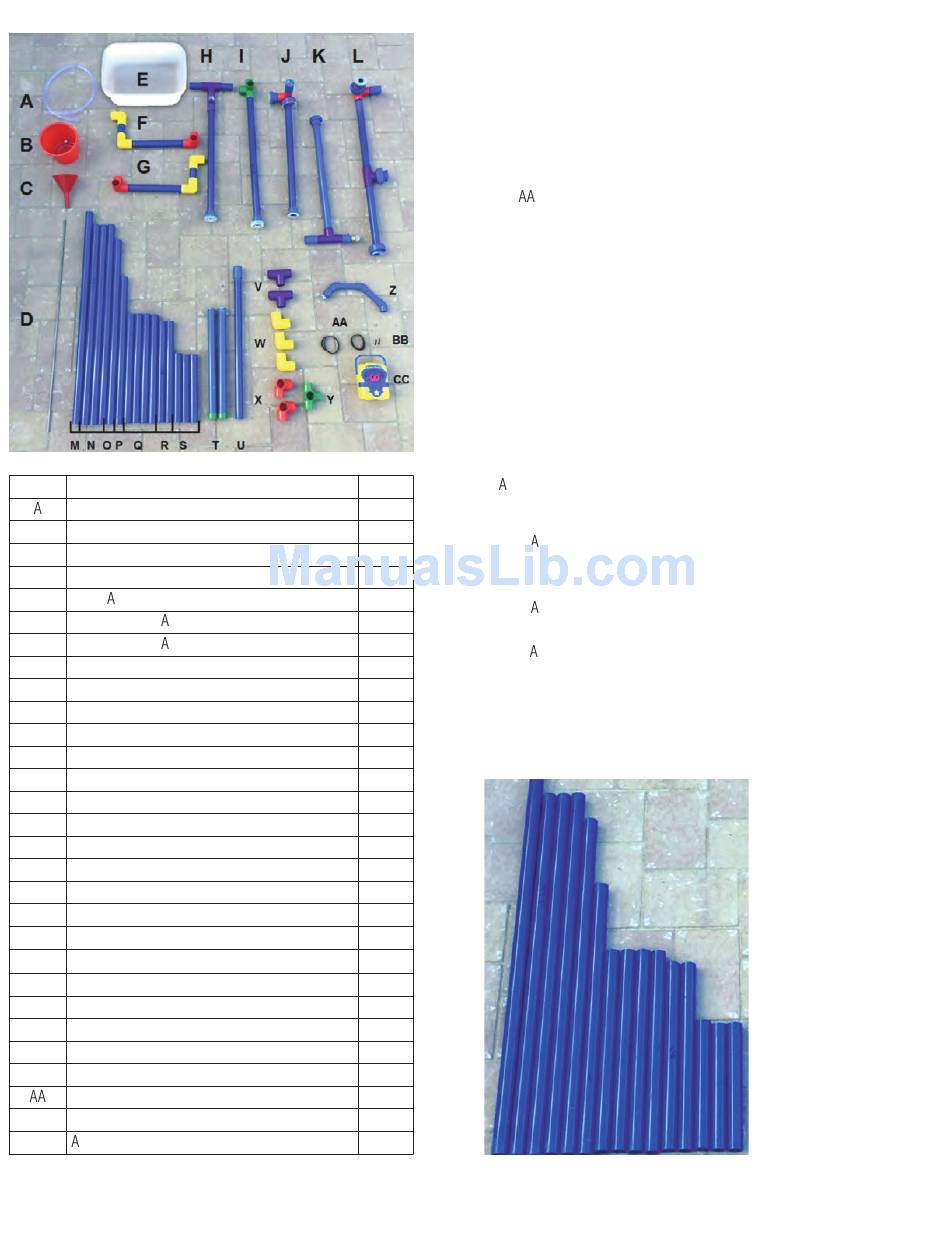

CONTENTS

Item Description
Funnel Hose
B Dump Bucket
C Funnel
D Bucket Support Rod
E Water nd Sand Basins
F Bucket Support rm (Left)
G Bucket Support rm (Right)
H Bucket Feed Line
I Table Upright With 4 Way
J Main Water Feed (Top)
K Main Water Feed (Bottom)
L Cross Feed Line
M 36" Pipe (Bottom/Table Support)
N 33.5" Pipe (Lateral Supports)
O 30.5" Pipe (Table Upright - Top)
P 24" Pipe (Front Upright - Top)
Q 17.25" Pipe (Table Support)
R 16" Pipe (Table Upright - Bottom)
S 12" Pipe (Table Support)
T Table Legs
U 24" Pipe With Coupling (Front Upright - Bottom)
V 3 Way Tee (Purple)
W Elbow (Yellow)
X 3 Way Elbow (Red)
Y 4 Way Elbow (Green)
Z Bucket Spout
Bubble Maker Straps
BB Self Taping Screws
CC utomatic Bubble Maker
NOTE: The hose connector and o-rings for the unions are in a separate
bag with the screws and Velcro straps.
TOOLS (Not Included)
• Rubber Mallet (Do NOT use a metal hammer)
• Phillips Head Screwdriver
• Scissors (may be required to cut funnel hose)
• Measuring Tape (optional)
OTHER SUPPLIES/ACCESSORIES (Not Included)
• Clean, Filtered Play Sand (if desired)
• (3) Batteries
• Bubble solution
• Water/Sand and Riding Toys
ASSEMBLING THE WATERPARK STRUCTURE
Helpful Tips to a Quick Build:
• Construct on a flat, firm surface - this will help when tapping components
together
• Tap components together after the structure is fully assembled - easier to take
apart if a wrong component is installed
• Wear gloves with a rubber coating - provides additional grip on the PVC
components
• measuring tape can be used to help identify components if needed
Qty
1
INSTRUCTIONS
1
IMPORT NT: Please pay additional attention to the orientation of the components
1
when placing them together. Connectors need to face the correct direction for
1
proper assembly.
2
IMPORT NT: Hand fit all the components at first. When fully assembled, tap the
1
unglued components lightly with a rubber mallet (Do NOT use a metal hammer).
1
IMPORT NT: To reduce leaking, ensure the o-rings are installed in the (4) unions
1
prior to tightening.
1
NOTE: The hose connector and o-rings for the unions are in a separate bag.
1
1 1. Lay the blue pipe in descending order, as seen in the CONTENTS section of
the manual. This will help to identify the components (Fig. 1).
1
1
3
1
1
4
2
3
2
1
2
3
2
1
1
2
2
1
2
Fig. 1
