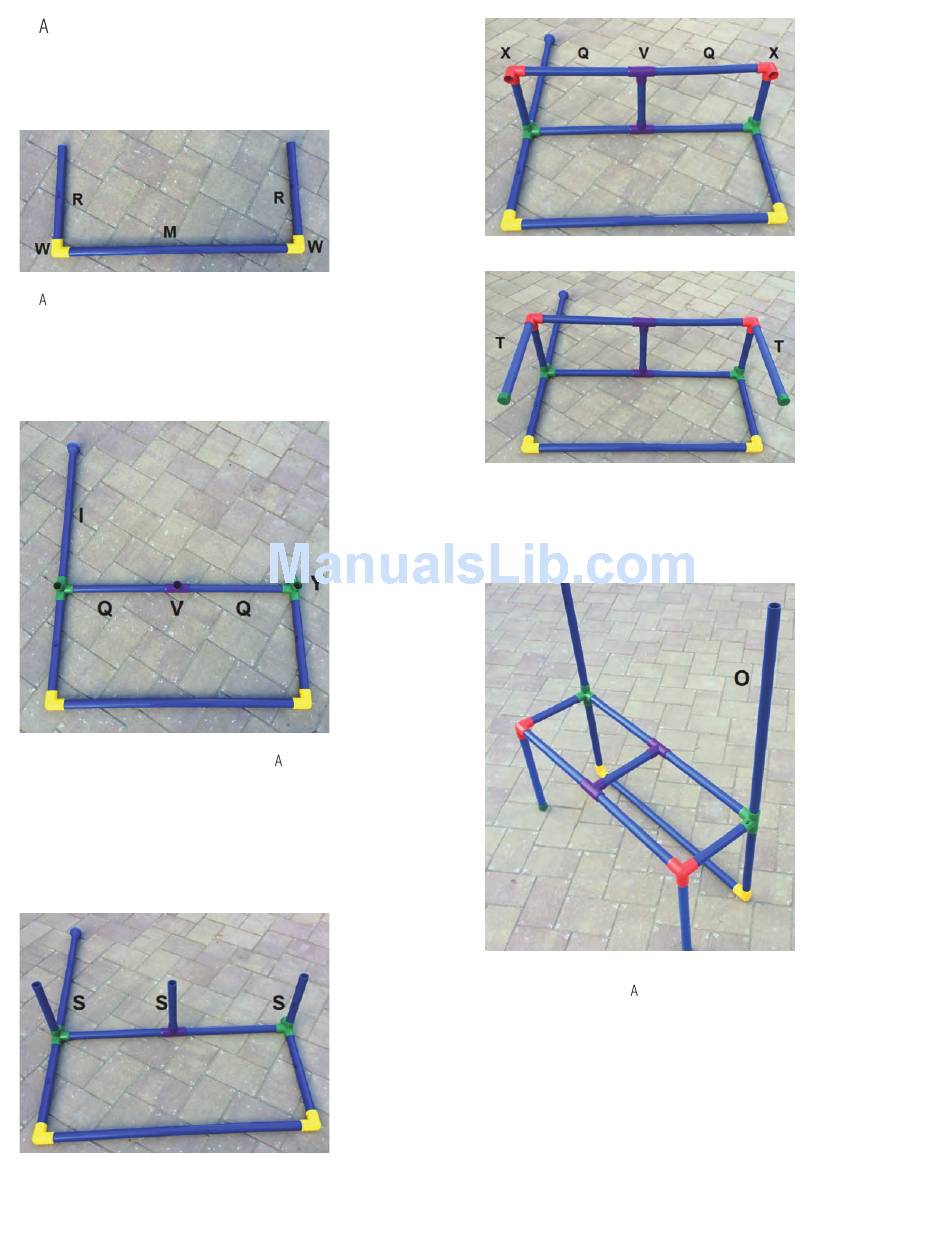

2. ssemble the bottom support of the table (Fig. 2).
(1) M 36" Pipe (Bottom/Table Support)
(2) R 16" Pipe (Table Upright - Bottom)
(2) W Elbow (Yellow)
3.
ssemble the top cross support of the table (Fig. 3).
(1)
I
Table Upright With 4 Way
(2)
Q
17.25" Pipe (Table Support)
(1)
V
3 Way Tee (Purple)
(1)
Y
4 Way Elbow (Green)
4. Construct the water and sand tables (Fig. 4 - 4C).
(3)
S
12" Pipe (Table Support)
(2)
Q
17.25" Pipe (Table Support)
(2)
X
3 Way Elbow (Red)
(2)
T
Table Legs
(1)
V
3 Way Tee (Purple)
Fig. 2
Fig. 3
Fig. 4A
5. Stand the table upright (resting on the yellow elbows/green caps) and install
the top upright (Fig. 5).
(1)
O
30.5" Pipe (Table Upright - Top)
6. The following steps will cover the assembly of the opposite side to the water
and sand tables (Fig. 6 - 6C). NOTE: Use an O-ring when connecting the
union
(1)
J
Main Water Feed (Top)
(1)
K
Main Water Feed (Bottom)
(2)
N
33.5" Pipe (Latteral Supports)
(1)
W
Elbow (Yellow)
(1)
P
24" Pipe (Front Upright - Top)
(1)
U
24" Pipe With Coupling (Front Upright - Bottom)
