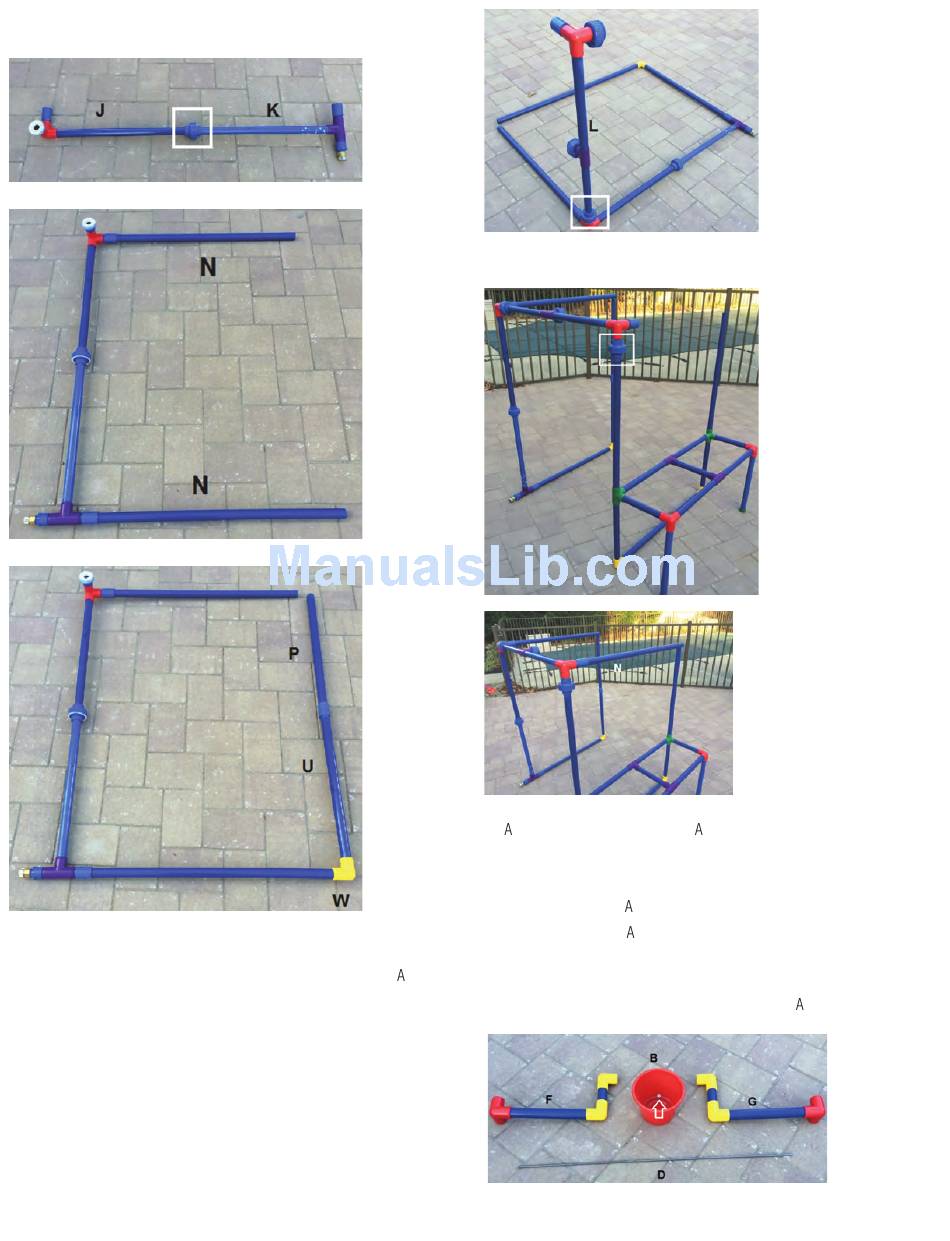

Connect by tightening the union.
7. Connect the two halves of the waterpark together by attached the Cross Feed
Line and install the lateral support for the bucket assembly (Fig. 7 - 7C).
NOTE: Use an O-ring when connecting the union.
(1)
L
Cross Feed Line
(1)
N
33.5" Pipe (Lateral Supports)
Connect by tightening the union. Stand the structure and align the union with
the water and sand table structure. Tighten the union to connect the two
structures
Fig. 6A
Fig. 6B
Fig. 6C
Stand the structure and align the union with the water and sand table structure.
Tighten the union to connect the two structures
8.
ssemble the Dump Bucket (Fig. 8 - 8D).
(1) B Dump Bucket
(1) D Bucket Support Rod
(1) F Bucket Support rm (Left)
(1) G Bucket Support rm (Right)
Lay out the components as shown, ensuring the yellow and red elbows are
arranged properly. In addition, ensure the counterweight, inside the bucket
(identified by the arrow), is in the correct position (Fig. 8 ).
4
Fig. 7A
Fig. 7B
Fig. 7C
Fig. 8A
