LAGOON USER MANUAL
January, 2018 Version 1.2.1
Copyright © 2017-2018 ePropulsion All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAGOON and is the answer not in the manual?

Questions and answers

Related Manuals for ePropulsion LAGOON

Summary of Contents for ePropulsion LAGOON

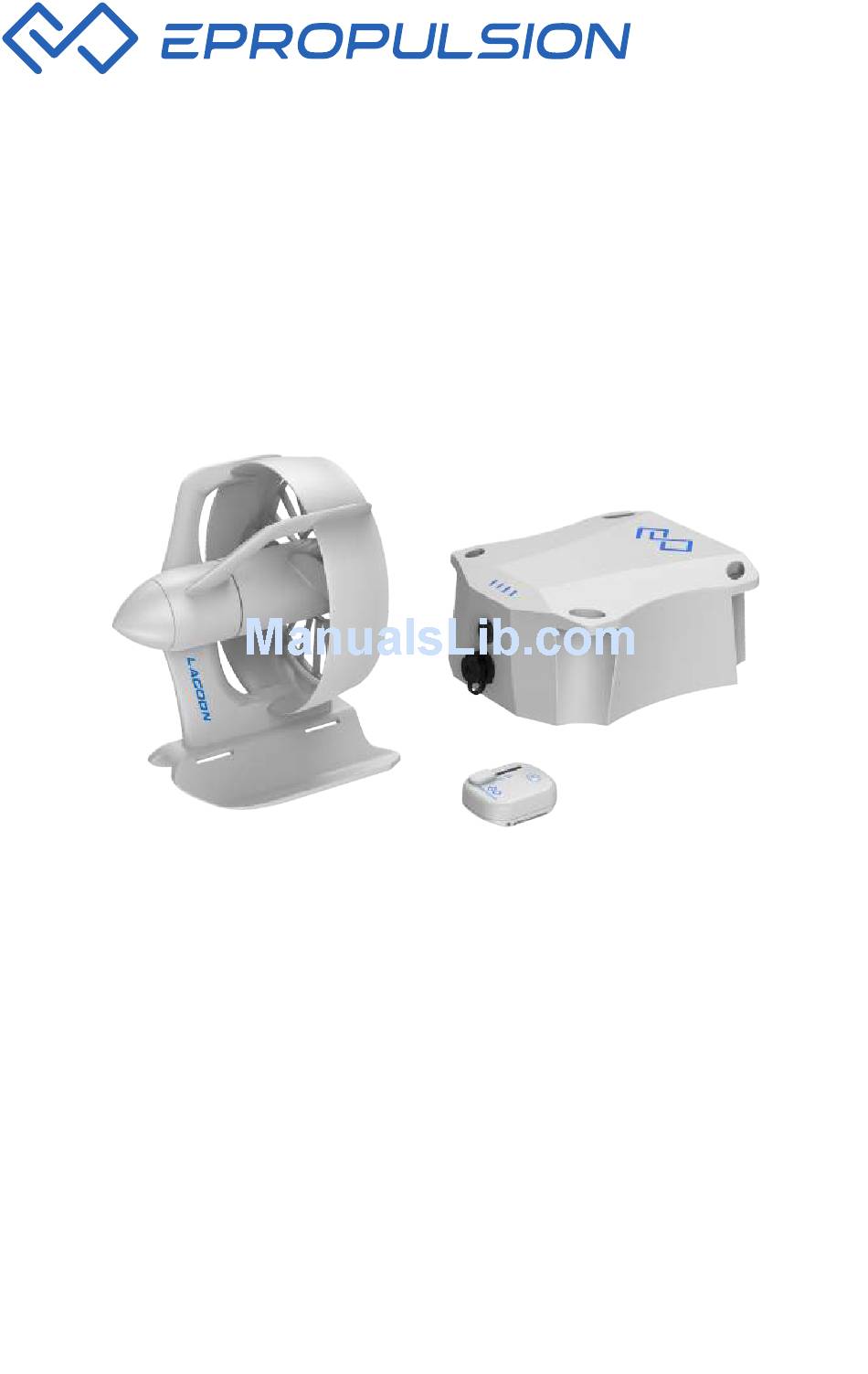

  • Page 1 LAGOON USER MANUAL January, 2018 Version 1.2.1 Copyright © 2017-2018 ePropulsion All Rights Reserved...

  • Page 3: Acknowledgements

    By using this product, you hereby agree that you have fully read and understood all contents of this manual. ePropulsion accepts no liability for any damage or injury caused by operations that contradict this manual.

  • Page 4: Product Identification

    Product Identification Below Figure 0-1 indicates the position of the serial number for LAGOON Battery. Figure 0-2 and Figure 0-3 indicate the position of serial numbers for LAGOON Remote Control and LAGOON Motor. Model: Lagoon Battery CAUTIONS Rated Capacity: 324Wh...

  • Page 5: Table Of Contents

    3. Installation ..................14 3.1 Installation of LAGOON Motor ............14 3.1.1 Installing with Standard Adapters .......... 14 3.1.2 Installing with LAGOON Universal Adapter ......16 3.2 Fixing LAGOON Battery ..............18 3.3 Connecting Battery to Motor ............20 3.4 Attaching LAGOON Remote Control ..........20 4.
  • Page 6 5. Detaching LAGOON Motor ..............30 6. Transport and Storage ............... 36 6.1 Transport ..................36 6.2 Storage ..................36 7. Routine Maintenance ................. 37 8. Warranty ....................38 8.1 Warranty Policies ................38 8.2 Out of Warranty ................39...

  • Page 7: Important Safety Instructions

    Before Operation Users who are allowed to use LAGOON should be in good physical state, know how to swim and how to paddle. Always wear a life vest and always wear a leash when operating.
  • Page 8 Pay attention to battery safety and operate it in the right way to avoid short-circuit, overheat, overcharge and over-discharge. Never drop the battery. Only use LAGOON Charger designed for the battery. Other chargers may lead to shortened runtime, premature battery failure, or even fire or explosion.

  • Page 9: Product Overview

    2. Product Overview LAGOON is a set of electric propulsion kit designed for SUP/kayak. The well-adapted LAGOON is compatible with nearly all SUPs, kayaks, canoes, etc. This product mainly consists of a LAGOON Motor, a LAGOON Battery and a wireless LAGOON remote control. This small but mighty propulsion kit supports about 1 hour of full-speed running, perfectly backing you up whether you need a rest or want to go further.
  • Page 10 1 set Warranty Card Attach the LAGOON Motor to the bottom of the watercrafts by using a standard adapter which is compatible with the fin box on the watercraft, or using the LAGOON universal adapter for watercrafts that have different fin boxes or without a fin mounting system.

  • Page 11: Parts And Diagrams

    2.2 Parts and Diagrams LAGOON Controller LAGOON Battery Power Cable LAGOON Motor Figure 2-1 LAGOON Overvies Motor Module Propeller Power Cable Protective Frame Motor Base Front View Side View Figure 2-2 LAGOON Motor LED Lights Battery Power Button Buckles Charge/Discharge...
  • Page 12 Throttle On/Off Button Velcro Tape Figure 2-4 LAGOON Remote Control Inflatable SUP fin box adapter Retaining Clip Screw US fin box adapter Back Nut Strap Buckle LAGOON Ratchet universal Strap adapter Figure 2-5 Adapters...

  • Page 13: Technical Data

    2.3 Technical Data LAGOON General Data Input power 300W Static thrust 23lbs Total weight 4Kg / 8.8lbs LAGOON Motor weight 1.5Kg / 3.3lbs Dimension 162mmx167mmx182 mm / 6.4”x6.6”x7.2” Propeller diameter 150mm / 5.9” Propeller pitch 115mm / 4.5” Max propeller speed in rpm...

  • Page 14: Declaration

    2.4 Declaration Object of the Declaration: Product: Small Electric Thruster Model: LAGOON, LAGOONS Company Name: Dongguan ePropulsion Intelligence Technology Limited Company Address: Room 202, Bldg.17A, Headquarter No.1, 4th XinZhu Road, SongShan Lake District, Dong Guan, Guang Dong, China The object of the declaration is in conformity with the following directives:...
  • Page 15 The manufacturer is not responsible for any radio or TV itnerference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Signature: Shizheng Tao, Chief Executive Officer & Cofounder of Dongguan ePropulsion Intelligence Technology Limited...

  • Page 16: Installation

    3. Installation LAGOON comes with two adapters that can be fit into two major standard fin boxes which are widely used on most SUPs and a universal adapter for kayaks and any small watercraft without standard fin boxes. 3.1 Installation of LAGOON Motor Before installing the LAGOON Motor to an SUP/kayak, etc., note that the...
  • Page 17 Step3: Move the back nut in the slot to align it with the hole on the adapter, then insert the screw into the hole and screw it tightly into the back nut. Step4: The LAGOON motor is well attached to the US fin box. back nut...

  • Page 18: Installing With Lagoon Universal Adapter

    3.1.2 Installing with LAGOON Universal Adapter If the SUP/kayak, etc. has no fin box or if both the two standard adapters can’t fit into the existing fin mounting system, it’s suggested to use LAGOON universal adapter to attach the LAGOON Motor. While mounting with the LAGOON universal adapter, please follow the below steps.
  • Page 19 Figure 3-5 3) Fix the two ratchet straps: first, penetrate the strap into the buckle; then, repeat unfolding and folding the buckle to tense the strap. Fold the buckle when the strap is tensed. Figure 3-6 4) Attach the motor module to the universal adapter in the arrow direction.

  • Page 20: Fixing Lagoon Battery

    3.2 Fixing LAGOON Battery a. Fixing LAGOON Battery on SUPs There are two major methods of fixing the LAGOON Battery on an SUP. For SUP with a bungee system, the battery can be fixed with the bungee cords. SUP bungee cord...
  • Page 21 For SUPs without bungee system, users can make use of the buckles on the bottom of the LAGOON Battery to clip a ratchet strap tied around the SUP. Fix the redundant cable with a Velcro tape Model: 24V Li-ion Battery...

  • Page 22: Connecting Battery To Motor

    Flip the SUP/kayak, etc. over after the motor module is firmly installed on the bottom. Plug the motor cable connector into the charge/discharge port of the LAGOON Battery and tighten the connector. Fix the power cable with a Velcro tape.
  • Page 23 Method1: Wear the LAGOON Controller on the wrist Method2: Attach the LAGOON Controller to a paddle Figure 3-12...

  • Page 24: Operation

    4. Operation To operate LAGOON, it’s critical to understand how to use the battery and remote correctly. Read this part carefully before any operation. 4.1 Using the Battery 4.1.1 Battery LEDs The four LEDs on LAGOON Battery can display battery level while charging and discharging and indicate errors during operation.
  • Page 25 (for 3s) and the error (for 3s) alternately. If multiple errors occur simultaneously, the errors will be displayed in this priority sequence: Error4 Error3 Error1 Error2. Error4 LAGOON Battery over-temperature may occur during charging. If the problem persists, please consult ePropulsion authorized dealers for assistance.

  • Page 26: Switching On/Off Lagoon Battery

    4.1.2 Switching On/Off LAGOON Battery Power Button Figure 4-2 The below table indicates how to switch on/off the LAGOON Battery. Operation Description In power-off state, press the power button and hold until all the four LEDs light up one by one from left to right. Then...

  • Page 27: Charging The Battery

    4.1.3 Charging the Battery Important notes before charging Only use LAGOON Charger to charge LAGOON Battery. Do not use any third party chargers. Only charge the LAGOON Battery in within 0˚C~45˚C (32˚F~113 ˚F). Avoid water contact during charging process.

  • Page 28: Use Of Lagoon Remote Control

    4.2 Use of LAGOON Remote Control 4.2.1 Switching On/Off the Remote Control Figure 4-4 Below table displays how to switch on/off the LAGOON Remote Control. Operations Description In switch-off state, short press the on/off button and Switch on a beep is heard.

  • Page 29: Controlling The Motor

    Control to stop the motor at once. Make sure the throttle is at zero position before starting or re-starting the motor. If LAGOON Remote Control falls into water by accident, the system will stop at once to protect. b. Controlling Speed LAGOON Remote Control supports stepless forward speed control.

  • Page 30: Replacing Battery For Remote Control

    4.2.3 Replacing Battery for Remote Control LAGOON Remote Control is powered by a built-in battery (model: CR2032). If the remote beeps continuously when the remote control is switched on and powers off in 10 seconds, it indicates that the button cell is of low battery level and replacement of a new cell is required.

  • Page 31: Pairing Remote Control To Battery

    4.3 Pairing Remote Control to Battery LAGOON Remote Control has been paired to LAGOON Battery prior to delivery, but pairing job has to be carried out if the original LAGOON Battery or LAGOON Remote Control is replaced with a new one. Users can follow the following instructions to finish pairing.

  • Page 32: Detaching Lagoon Motor

    5. Detaching LAGOON Motor After use of LAGOON, please detach the LAGOON Motor from the SUP/ kayak, etc. in correct procedures. Notes before detaching LAGOON Motor. First, take the LAGOON Battery out of your SUP/kayak, etc. by below procedures: 1) Long press the power button to switch off the LAGOON Battery.
  • Page 33 Step3: Pull the release buckles in the direction of ① ; meanwhile, slide the adapter in the direction of ② . Release buckle Figure 5-3 Step4: When the rear part of the adapter is slid to the positio as shown in below left figure, take out the adapter.
  • Page 34 Figure 5-5 Step2: Slide LAGOON Motor and adapter out of the fin box. Figure 5-6 Step3: Pull the release buckle and slide the adapter backward in the direction of the arrow. Release buckle Figure 5-7 Step4: When the rear part of the adapter is slid to the postion as shown in...
  • Page 35 Rear part of the adapter Figure 5-8 Clean the motor and adapter with fresh water after getting them detached. c. Detaching from universal adapter Step1: Loosen the ratchet strap buckles (Figure 5-9). Press the limiting stopper First, unfold the strap buckle by 180° Second, pull the longer side of the strap by pressing the limiting stopper.
  • Page 36 Step2: Detach the LAGOON universal adapter and LAGOON Motor from the SUP/kayak, etc. Figure 5-10 Hold the LAGOON Motor while loosening the ratchet strap. Step3: Pull the release buckle and slide the universal adapter in the direction of the arrow.
  • Page 37 Rear part of the adapter Figure 5-12 If you are not going to use the universal adapter very soon, it’s advised to detach the ratchet straps from the adapter. Clean the motor and adapter with fresh water after getting them detached.

  • Page 38: Transport And Storage

    Check applicable laws and regulations before transport. 6.2 Storage If you are not going to use LAGOON for a long time, it is advised to clean and check it prior to storage. It is recommended to pack LAGOON with its original package for storage.

  • Page 39: Routine Maintenance

    Routine maintenance is very important for keeping LAGOON in its optimal operating state. It’s suggested to take the LAGOON Motor out of the water after use. Check the cable regularly for damage. Charge the LAGOON Battery after each use.

  • Page 40: Warranty

    8. Warranty The ePropulsion limited warranty is provided for the first end purchaser of an ePropulsion product. Consumers are entitled to a free repair or replacement of defective parts or parts which do not conform with the sales contract. This warranty operates in addition to your statutory rights under your local consumer law.

  • Page 41: Out Of Warranty

    Warranty Card, ex-factory serial number, and evidence of purchase. 2. Send the defective product to your authorized ePropulsion service point after getting the confirmation. Note that the label should be kept intact.
  • Page 42 3. The defective components or parts will be either repaired or replaced according to the diagnosis made by the ePropulsion authorized service partner. 4. If your warranty claim is accepted, the equipment will be repaired or replaced free of charge.
  • Page 44 Thanks for reading this user manual. If you have any concerns or find any problems while reading, please don't hesitate to contact us. We are delighted to offer service for you. ePropulsion Innovation (HK) Ltd. Website: www.epropulsion.com Email: service@epropulsion.com...
