LAGOON USER MANUAL
November, 2016 Version 1.0
Copyright © ePropulsion 2016-2017 All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAGOON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ePropulsion LAGOON

Summary of Contents for ePropulsion LAGOON

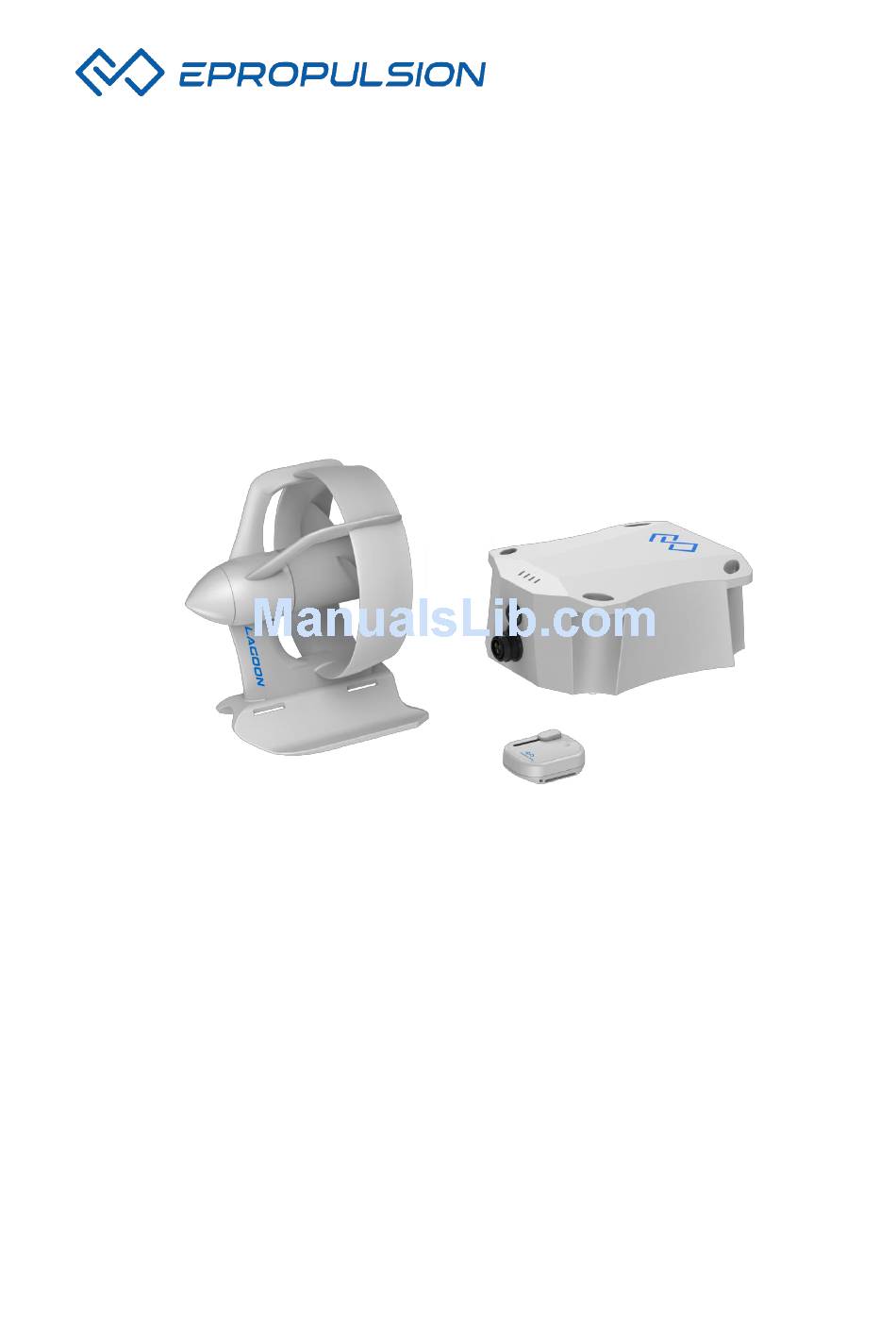

  • Page 1 LAGOON USER MANUAL November, 2016 Version 1.0 Copyright © ePropulsion 2016-2017 All Rights Reserved...

  • Page 2: Acknowledgements

    Before use of the product, please read this reference manual thoroughly to understand the correct and safe operations. By using this battery, you hereby agree that you have fully read and understood all contents of this manual. ePropulsion accepts no liability for any damage or injury caused by operations that contradict this manual.

  • Page 3: Product Identification

    Product Identification Below Figure 0-1 indicates the position of the Lagoon Battery label where the serial number locates. P l eas e record the serial number for access to maintenance or other after-sale services. Figure 0-1 Figure 0-2 Figure 0-3...

  • Page 4: Table Of Contents

    4.2.1 Switch On/Off the Lagoon Battery ..........18 4.2.2 Put Lagoon Battery into Pairing Status .......... 19 Pair the Lagoon Controller with Lagoon Battery ........20 Wirelessly Control the Lagoon Motor ............20 Charging and Discharging ................. 22 4.5.1 Lagoon Battery Indicators ............... 22 4.5.2...

  • Page 5: Important Safety Instructions

    Before Operation:  Users who are allowed to use Lagoon should be in good physical state, know how to swim, how to paddle. Users who don’t know how to swim must wear a life vest while using this product.

  • Page 6: Product Overview

    SUPs, kayaks, canoes, etc. that traditionally depend on human paddling. This thruster mainly consists of a Lagoon Motor, a Lagoon Battery and a Lagoon Controller. This small-but-mighty propulsion system supports 1.1 hours of full-speed running, perfectly backing you up whether you need a rest...
  • Page 7 Lagoon universal adapter to attach Lagoon motor to any type of SUP boards/kayaks or other small boats without a fin mounting system.

  • Page 8: Parts And Diagram

    Parts and Diagram Figure 2-1 Lagoon Figure 2-2 Lagoon Motor Figure 2-3 Lagoon Battery...
  • Page 9 Figure 2-4 Lagoon Controller Figure 2-5 Adapters...

  • Page 10: Technical Data

    25lbs Total weight 4kg / 8.8lbs Lagoon Motor weight 1.5kg / 3.3lbx Dimension of Lagoon Motor 162mm x 167mm x 182 mm / 6.4" x 6.6" x 7.2" Standard propeller diameter 150 mm / 5.9" Propeller pitch 115 mm / 4.5"...

  • Page 11: Declaration

    Storage: -40˚C ~ 75˚C / -40˚F ~ 167˚F ≥87% Efficiency Battery performance is dependent on external factors such as operating conditions and watercraft, etc. Declaration This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 12: Installation

    3 Installation Lagoon is designed to be perfectly fits into two major standard fin boxes – US fin boxes and inflatable SUP fin boxes. The Lagoon universal adapter can easily adapt the Lagoon Motor to nearly all kinds of SUPs/kayaks/canoes, etc. without a standard fin-mounting system.
  • Page 13 Figure 3-2 b. Installing with an inflatable SUP fin box adapter Attach an inflatable SUP fin box adapter onto the motor module base as shown in Figure 3-3. First align the adapter with the motor base; then insert the adapter into the motor base until it is well attached.

  • Page 14: Installing With Lagoon Universal Adapter

    If the SUP/kayak, etc. has no fin box or if both the two standard adapters can’t fit into the existing fin mounting system, it’s suggested to use Lagoon universal adapter to fix the motor module onto the bottom of the board/boat. This universal adapter is especially designed by ePropulsion engineers for adaptation of Lagoon to almost every kinds of SUPs/kayaks/canoes/small boats, etc.

  • Page 15: Fixing Lagoon Battery

    SUP/kayak, etc. Fixing Lagoon Battery a. Fixing Lagoon Battery on SUPs There are two major methods of fixing the Lagoon Battery on a SUP board. For SUP boards with a bungee system, the battery can be fixed with the bungee cords.
  • Page 16 Figure 3-7 Fix the battery with the SUP bungee system For SUP boards without bungee system, users can make use of the Battery buckles on the bottom of the Lagoon Battery to clip a strap tied around the board. Figure 3-8 Fix Lagoon Battery with its bottom buckles Fix the redundant power cable with a Velcro.

  • Page 17: Connecting Lagoon Battery To Lagoon Motor

    Figure 3-9 Connecting Lagoon Battery to Lagoon Motor Flip the SUP/kayak, etc. over after the motor module is firmly installed on the bottom. Plug the motor cable connector into the battery and fix the power cable with a Velcro as shown in the below figure.

  • Page 18: Operation

    This part introduces how to switch on/off the Lagoon Controller and Lagoon Battery, how to pair the Lagoon Controller with the Lagoon Battery, how to control the speed, charge the Lagoon Battery as well as how to replace a new button cell built in the Lagoon On/Off Button on Lagoon Controller Users can both switch on/off the controller or put the controller into pairing status by pressing the on/off button of Lagoon Controller.

  • Page 19: Put Lagoon Controller Into Pairing Status

    Before conducting the above operations, users should first put Lagoon Battery into pairing status. Please refer to the following section 4.2.2 to learn how to put the Lagoon Battery into pairing status. Power Button on Lagoon Battery Users can both switch on/off the battery or put the battery into pairing status by pressing the power button of Lagoon Battery.

  • Page 20: Put Lagoon Battery Into Pairing Status

    Switch off the Battery before detaching the Motor from the SUP/kayak, etc. When switching on the Lagoon Battery, first all the four LED lights will light up one by one from left to right regardless of the actual remaining battery; then the LEDs will display the remaining battery capacity, eg.

  • Page 21: Pair The Lagoon Controller With Lagoon Battery

    If the pairing succeeds, another beep will be issued by the Lagoon Controller, and the four LED lights on the Lagoon Battery will light up one by one, otherwise the pairing fails. Keep the Lagoon Controller close to the Lagoon Battery while pairing.
  • Page 22 Figure 4-3 b. Start/Stop the Lagoon Motor Start the motor: in power-off state, short press the on/off button on the Lagoon Controller to switch it on. Stop the motor: in power-on state, short press the on/off button on the Lagoon Controller to stop rotation of the motor.

  • Page 23: Charging And Discharging

    Charging and Discharging 4.5.1 Lagoon Battery Indicators There are a total of four LED lights indicating battery level on the Lagoon Battery. The below Figure 4-3 indicates the position of the four LED lights. Figure 4-5 The following table illustrates the state of the four LED lights on the Lagoon Battery while charging and discharging.

  • Page 24: Replacing Button Cell For Lagoon Controller

    You can replace a new button cell referring to the below steps: Step1: Screw off the cell cover on the back of the Lagoon Controller in the direction marked with “UNLOCK”. Step2: Open the cell cover and replace the old button cell with a new one.
  • Page 25 Figure 4-7...

  • Page 26: Troubleshooting

    If an error occurs during the wireless pairing process, the LED lights will only display the pairing status until the pairing is completed. If multiple errors occur simultaneously, the errors are displayed as the following sequence: battery over-temperature  Other errors of the battery  Lagoon Controller communication failure.

  • Page 27: Transport And Storage

     Check applicable laws and regulations before transport. Storage If you are not going to use Lagoon for a long time, it is advised to clean and check it prior to storage. It is recommended to pack Lagoon with its original package for storage.

  • Page 28: Routine Maintenance

     Clean the exterior of Lagoon Motor with fresh water after each use.  Clean the debris in the cave of the adapters after each use.  Do not drop Lagoon Battery and avoid it from direct sun/rain exposure for a long time.  Check the battery level on a regular basis.

  • Page 29: Warranty Claims

    Technology Ltd. keeps its products free of defects in material and workmanship for a limited period since the date of purchase. Once a fault is discovered, the user has the right to make a warranty claim under the warranty policies of ePropulsion. Product...

  • Page 30: Out Of Warranty

    Warranty Claim Card, ex-factory serial number, and evidence of purchase. 2. Send the defective product to your authorized ePropulsion service point after getting the confirmation. Note that the label should be kept intact. You can also deliver the product to your authorized ePropulsion dealer after getting confirmation.
  • Page 31 Thanks for reading this user manual. If you have any concerns or find any problems while reading, please don’t hesitate to contact us. We are delighted to offer service for you. ePropulsion Technology Ltd. Website: www.epropulsion.com Email: service@epropulsion.com...
