GVA LIRA Installation Manual
Architectural spot and flood light
Hide thumbs
Also See for LIRA:
- Installation manual (9 pages) ,
- Installation manual (2 pages) ,
- Installation manual (9 pages)
Related Manuals for GVA LIRA
Summary of Contents for GVA LIRA

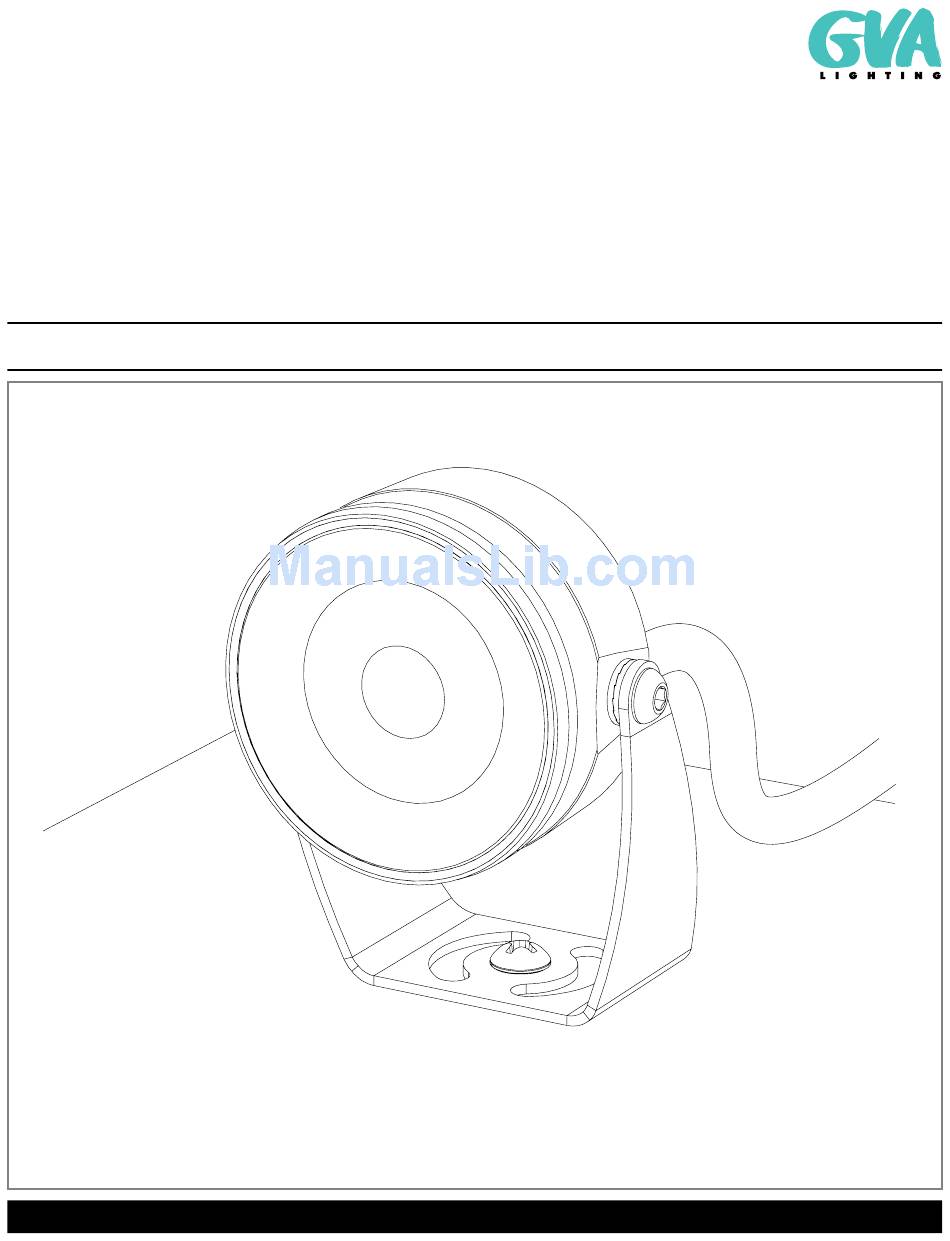

- Page 1 LIRA Architectural Spot and Flood Light INSTALLATION GUIDE GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2 IG, LIRA, 18-05-17 Page 1 / 8 Tel: + 1 905 569 6044 Email: info@gvalighting.com gvalighting.com...
-
Page 2: Mounting Bracket Installation
Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate. GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information. -
Page 3: Required Hardware
SCREWS TO 1NM LUMINAIRE INSTALLATION (WITH LIRA VISOR) Using the provided hardware, install the LIRA luminaire as shown. If installing the LIRA visor, do so in conjunction with the luminaire installation as shown. Diagram 3.A. Luminaire with Visor Diagram 3.B. Luminaire without Visor... -
Page 4: Overall System Diagram
Make connections to junction boxes (supplied by others) and to the luminaires. NOTE: LIRA luminaire 12 or 24VDC power conductors should be connected in parallel. DMX Common to be also connected in parallel. NOTE: DMX I/O must be connected in series. - Page 5 PDB/PS-ELV WARNING Ensure that line power is disconnected before making connections to PDB/PS-ELV. For LIRA DMX luminaires refer to Diagram 5.A. for PDB-ELV connections. For LIRA non-dimming luminaires, refer to Diagram 5.B. for PS-ELV connections. Diagram 5.A. PDB-ELV Wiring Diagram...
- Page 6 Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate. GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
- Page 7 Connect Class 2, 12~24VDC output to power conductors of LIRA luminaire : red(+), black(-). Connect DMX I/O to DMX conductors of LIRA DMX luminaire (output optional). NOTE: LIRA Luminaires require 12VDC or 24VDC Class 2 or limited to 25A Power Supply with Class 2 outputs. If PSU is other than Class 2, provisions must be made to create Class 2 outputs.
- Page 8 Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate. GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
