Table of Contents
- 1 Surface Mounting
- 2 Post Mounting
- 3 Layout Configurations - On/Off, no Dimming Version
- 4 Fixture Connections - On/Off, no Dimming Version
- 5 Wiring Diagram - On/Off, no Dimming Version
- 6 Layout Configurations - DMX Version
- 7 Fixture Connections - DMX Version
- 8 Wiring Diagram - DMX Version
- Download this manual
Advertisement
Table of Contents
Related Manuals for GVA FL
Summary of Contents for GVA FL

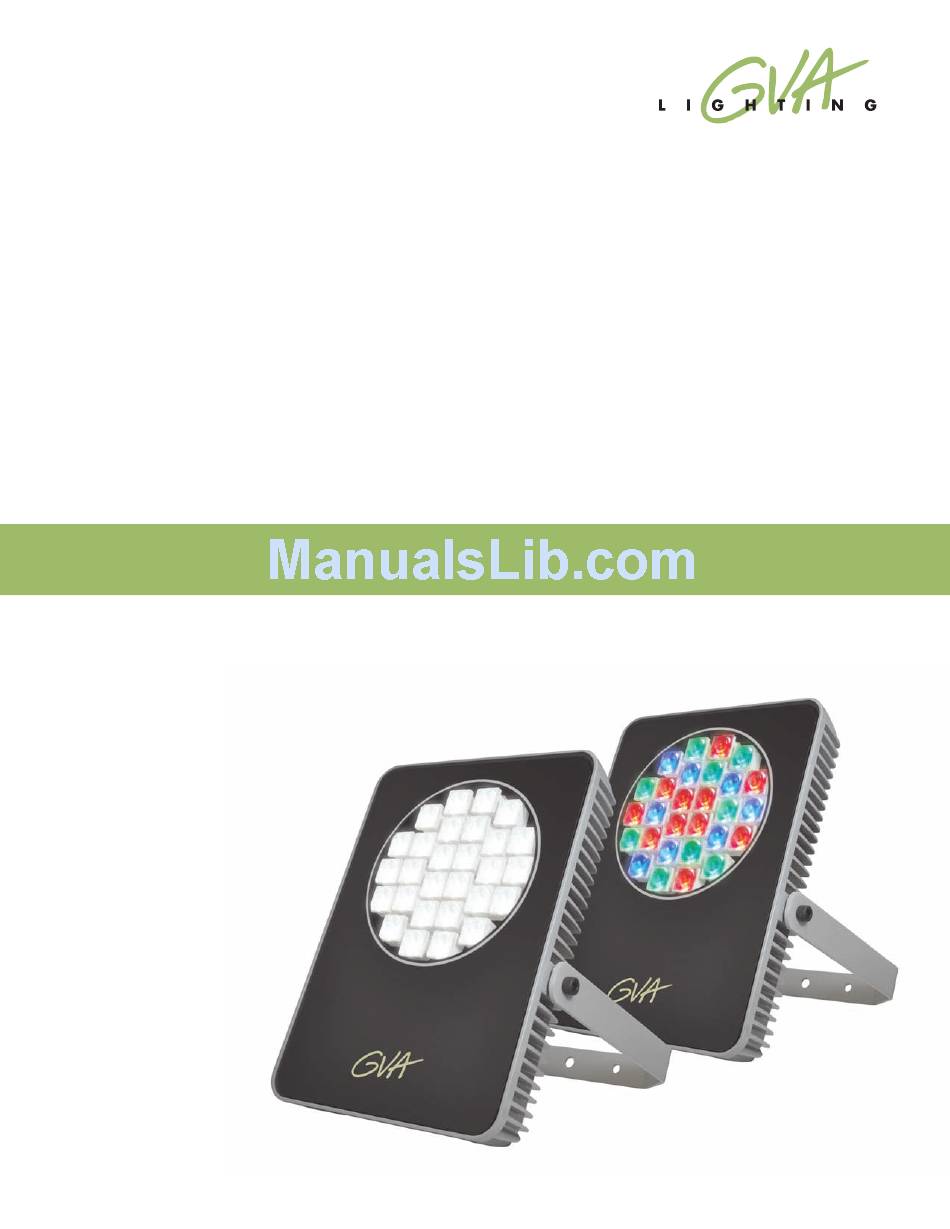

- Page 1 ™ FL LED Projector and Flood Light Installation Instructions...
- Page 2 FL Installation Instructions ™ Surface Mounting ADJUST AIM TO DESIRED ANGLE AND TIGHTEN LOCKING BOLTS M8 FASTENER SUITABLE FOR MOUNTING SURFACE 100mm 3.94in Post Mounting ADJUST HORIZONTAL AIM TO DESIRED ANGLE AND TIGHTEN MOUNTING BOLT ADJUST VERTICAL AIM TO DESIRED ANGLE...
- Page 3 FL Installation Instructions ™ Layout Configurations - On/Off, No Dimming Version PARALLEL CONFIGURATION AC VOLTAGE INPUT 100~240VAC 50-60HZ SERIES CONFIGURATION AC VOLTAGE INPUT 100~240VAC 50-60HZ Fixture Conenctions - On/Off, No Dimming Version AC INPUT CONDUCTOR DESIGNATION BROWN LIVE BLUE NEUTRAL...
- Page 4 FL Luminaires must be installed by a qualified professional in accordance with NEC and relevant local codes. Ensure that power supply is off before installing or wiring FL LED Luminaire. Do not attempt to install or use FL LED Luminaire until you read and understand this instruction manual and safety labels. CAUTION Do not exceed the specified voltage and current input.
- Page 5 FL Installation Instructions ™ Layout Configurations - DMX Version PARALLEL POWER CONFIGURATION AC VOLTAGE INPUT 100~240VAC 50-60HZ DMX DATA INPUT SERIES POWER CONFIGURATION AC VOLTAGE INPUT 100~240VAC 50-60HZ DMX DATA INPUT Fixture Connections - DMX Version AC INPUT CONDUCTOR DESIGNATION...
- Page 6 FL Luminaires must be installed by a qualified professional in accordance with NEC and relevant local codes. Ensure that power supply is off before installing or wiring FL LED Luminaire. Do not attempt to install or use FL LED Luminaire until you read and understand this instruction manual and safety labels. CAUTION Do not exceed the specified voltage and current input.
- Page 7 3400 Ridgeway Drive, # 14 Mississauga, Ontario L5L 0A2, Canada Phone: + 1 905 569 6044 Toll Free Phone (Canada and USA): 1 877 GVA LIGT or 1 877 482 5448 Fax: + 1 905 569 9823 Email: info@gvalighting.com gvalighting.com...
