Installation Guide LIRA™
CAUTION
Do not attempt to install or use Luminaire until you read and understand this installation guide and safety
labels.
Luminaires must be installed by a qualified professional in accordance with all national and local electrical
and construction codes and regulations.
Ensure that main power supply is OFF before installing or wiring Luminaire(s).
Do not exceed the specified voltage and current input.
GVA Luminaires have no serviceable parts. Do not attempt to open the units.
Do not use a luminaire with a damaged lens, body or cable.
Do not hot swap. Ensure power supply is off before connecting or disconnecting fixtures.
Not heading cautions may result in a hazardous situation which can cause injury or property
damage.

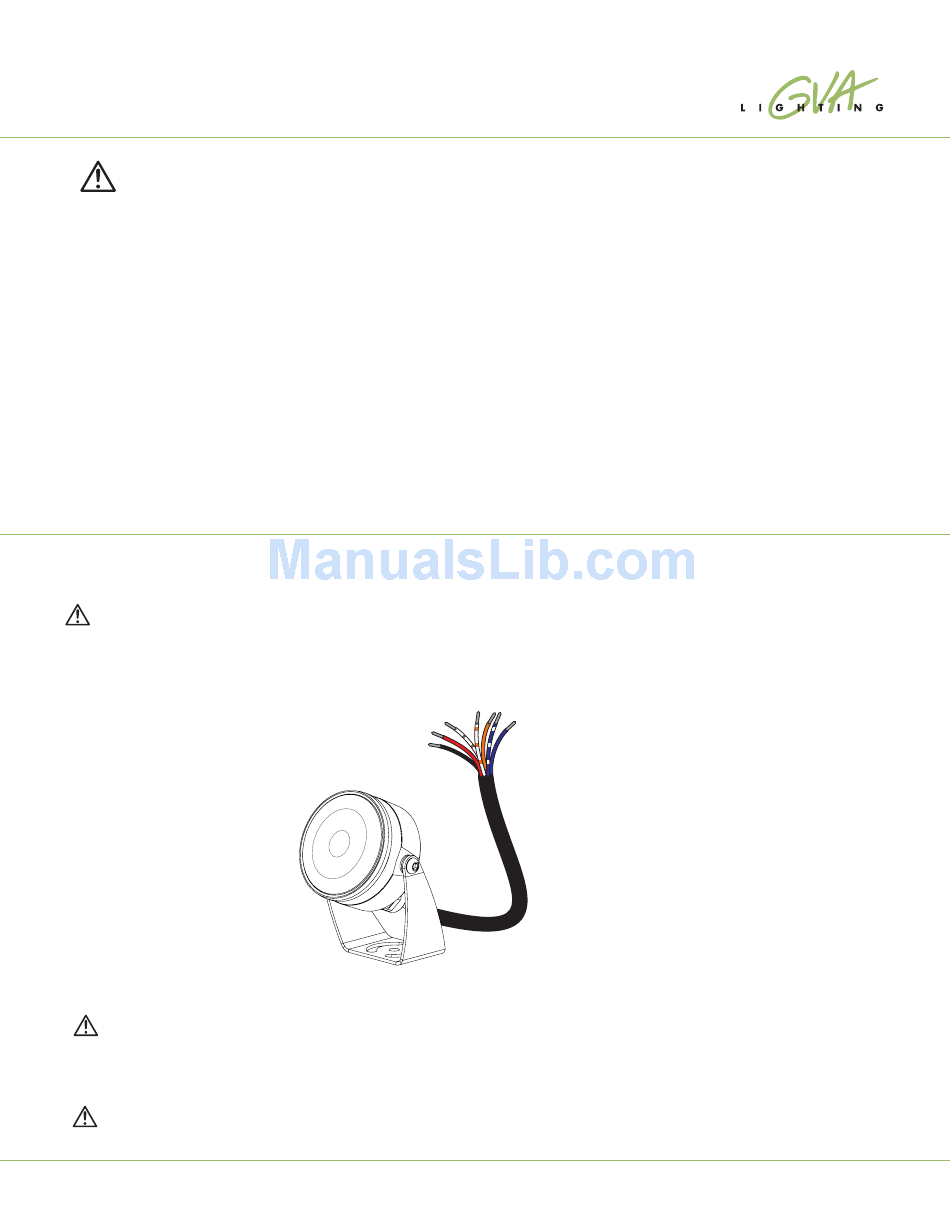

Connecting Luminaires

LIRA Luminaires require 12VDC or 24VDC Class 2 or limited to 25A Power Supply
with Class 2 outputs. If PSU is other than Class 2, provisions must be made to create Class 2 outputs
Ensure main power supply is turned OFF before beginning work
Connect Class 2, 12~24VDC output to power conductors of LIRA luminaire : red(+), black(-)
Connect DMX I/O to DMX conductors of LIRA luminaire (output optional)
Do not connect luminaire directly to line voltage
12~24VDC
Red = (+)
Black = (-)
1

DMX Data

Orange = DMX (-) INPUT
White/Orange = DMX (+) INPUT
Blue = DMX (-) OUTPUT
Blue/White = DMX (+) OUTPUT
Brown/White = DMX COMMON
