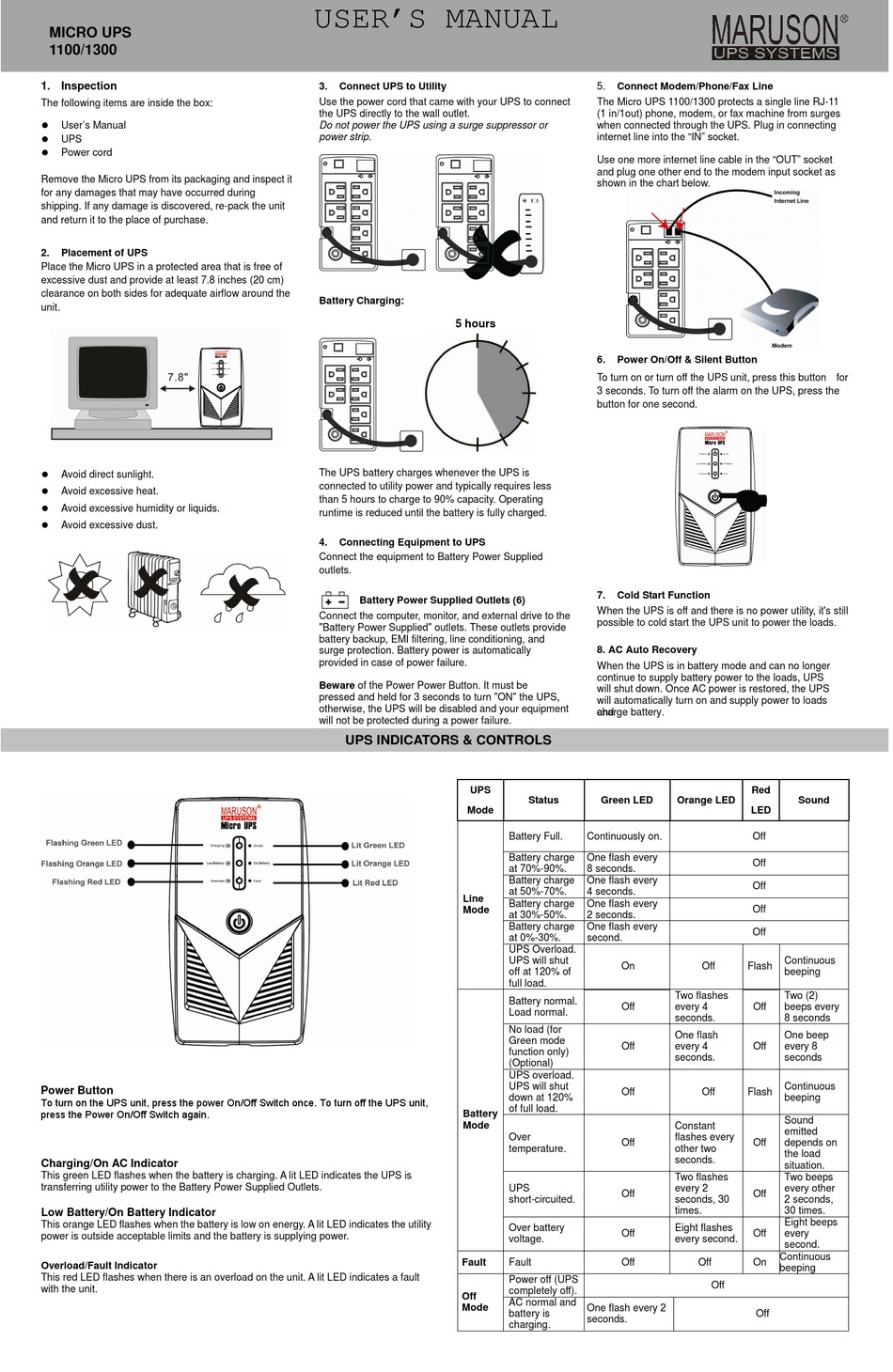

Maruson 1100 User Manual

MICRO UPS
1100/1300
1. Inspection
The following items are inside the box:
User's Manual
UPS
Power cord
Remove the Micro UPS from its packaging and inspect it
for any damages that may have occurred during
shipping. If any damage is discovered, re-pack the unit
and return it to the place of purchase.
2. Placement of UPS
Place the Micro UPS in a protected area that is free of
excessive dust and provide at least 7.8 inches (20 cm)
clearance on both sides for adequate airflow around the
unit.
Avoid direct sunlight.
Avoid excessive heat.
Avoid excessive humidity or liquids.
Avoid excessive dust.

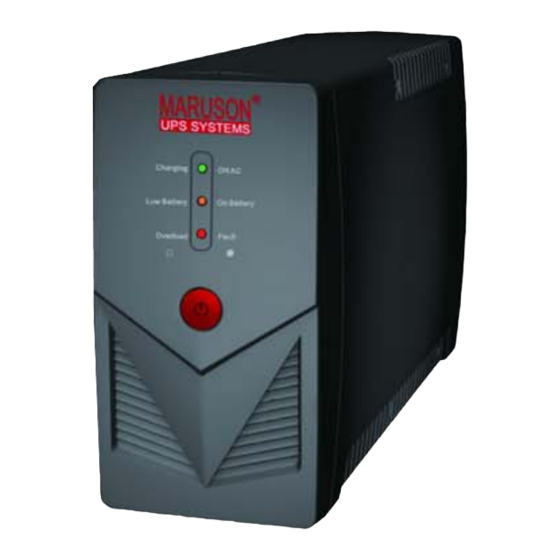

Power Button
To turn on the UPS unit, press the power On/Off Switch once. To turn off the UPS unit,
press the Power On/Off Switch again.
Charging/On AC Indicator
This green LED flashes when the battery is charging. A lit LED indicates the UPS is
transferring utility power to the Battery Power Supplied Outlets.
Low Battery/On Battery Indicator
This orange LED flashes when the battery is low on energy. A lit LED indicates the utility
power is outside acceptable limits and the battery is supplying power.
Overload/Fault Indicator
This red LED flashes when there is an overload on the unit. A lit LED indicates a fault
with the unit.
USER'S MANUAL
3. Connect UPS to Utility
Use the power cord that came with your UPS to connect
the UPS directly to the wall outlet.
Do not power the UPS using a surge suppressor or
power strip.
Battery Charging:
5 hours
The UPS battery charges whenever the UPS is
connected to utility power and typically requires less
than 5 hours to charge to 90% capacity. Operating
runtime is reduced until the battery is fully charged.
4. Connecting Equipment to UPS
Connect the equipment to Battery Power Supplied
outlets.
Battery Power Supplied Outlets (6)
Connect the computer, monitor, and external drive to the
"Battery Power Supplied" outlets. These outlets provide
battery backup, EMI filtering, line conditioning, and
surge protection. Battery power is automatically
provided in case of power failure.
Beware of the Power Power Button. It must be
pressed and held for 3 seconds to turn "ON" the UPS,
otherwise, the UPS will be disabled and your equipment
will not be protected during a power failure.
UPS INDICATORS & CONTROLS
UPS
Mode
Line
Mode
Battery
Mode
Fault
Off
Mode
5. Connect Modem/Phone/Fax Line
The Micro UPS 1100/1300 protects a single line RJ-11
(1 in/1out) phone, modem, or fax machine from surges
when connected through the UPS. Plug in connecting
internet line into the "IN" socket.
Use one more internet line cable in the "OUT" socket
and plug one other end to the modem input socket as
shown in the chart below.
6. Power On/Off & Silent Button
To turn on or turn off the UPS unit, press this button for
3 seconds. To turn off the alarm on the UPS, press the
button for one second.
7. Cold Start Function
When the UPS is off and there is no power utility, it's still
possible to cold start the UPS unit to power the loads.
8. AC Auto Recovery
When the UPS is in battery mode and can no longer
continue to supply battery power to the loads, UPS
will shut down. Once AC power is restored, the UPS
will automatically turn on and supply power to loads
charge battery. and
Status Green LED
Battery Full. Continuously on.
Battery charge One flash every
at 70%-90%. 8 seconds.
Battery charge One flash every
at 50%-70%. 4 seconds.
Battery charge One flash every
at 30%-50%. 2 seconds.
Battery charge One flash every
at 0%-30%. second.
UPS Overload.
UPS will shut
On
off at 120% of
full load.
Two flashes
Battery normal.
Off every 4
Load normal.
seconds.
No load (for
One flash
Green mode
Off every 4
function only)
seconds.
(Optional)
UPS overload.
UPS will shut
Off
down at 120%
of full load.
Constant
Over
flashes every
Off
temperature. other two
seconds.
Two flashes
UPS every 2
Off
short-circuited. seconds, 30
times.
Over battery Eight flashes
Off
voltage. every second.
Fault Off
Power off (UPS
completely off).
AC normal and
One flash every 2
battery is
seconds.
charging.
Red
Orange LED Sound
LED
Off
Off
Off
Off
Off
Continuous
Off Flash
beeping
Two (2)
Off beeps every
8 seconds
One beep
Off every 8
seconds
Continuous
Off Flash
beeping
Sound
emitted
Off depends on
the load
situation.
Two beeps
every other
Off
2 seconds,
30 times.
Eight beeps
Off every
second.
Continuous
Off On
beeping
Off
Off
