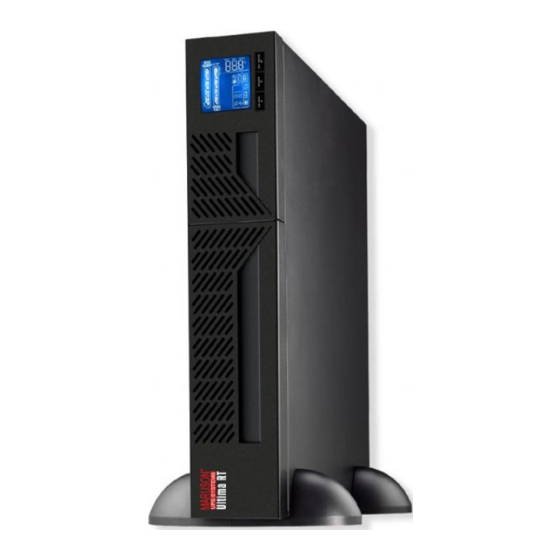

ULTIMA RACK/TOWER SERIES
6K ~ 10KVA
On-Line UPS

USER MANUAL

Maruson Technology Corporation
P.O. Box 1986, Walnut, CA 91788 USA
Toll Free: 1-888-MARUSON
Website: www.MarusonUSA.com
|
E-Mail: Info@MarusonUSA.com
*Copyright © 2014 All Rights Reserved. Maruson® is a registered trademark of Maruson Technology (U.S. Trademark Reg. No.
3,150,957). All other trademarks are the property of their respective owners. Product specifications are subject to change
without notice. Battery backup time is based on half load and varies with equipment, configuration, battery age, temperature,
etc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultima RT 6K and is the answer not in the manual?

Questions and answers

Related Manuals for Maruson Ultima RT 6K

Summary of Contents for Maruson Ultima RT 6K

  • Page 1: User Manual

    Website: www.MarusonUSA.com E-Mail: Info@MarusonUSA.com *Copyright © 2014 All Rights Reserved. Maruson® is a registered trademark of Maruson Technology (U.S. Trademark Reg. No. 3,150,957). All other trademarks are the property of their respective owners. Product specifications are subject to change without notice. Battery backup time is based on half load and varies with equipment, configuration, battery age, temperature,...
  • Page 2 Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY WARNINGS AND EMC INSTRUCTIONS ................1 1-1. UPS L ........................3 OCATION ARNINGS 1-2. C ........................3 ONNECTION ARNINGS 1-3. M ........................2 AINTENANCE ARNINGS 1-4. B ..........................2 ATTERY ARNINGS 1-5. S ............................3 TANDARDS 2.

  • Page 4: Safety Warnings And Emc Instructions

    1. Safety Warnings and EMC instructions CAUTION: Before performing the procedures in this document, read and follow the safety instructions and important regulatory information in your Safety, Environmental, and Regulatory Information document. This manual contains important instructions that you should follow during installation and maintenance of the UPS and batteries.

  • Page 5: Maintenance Warnings

    Table 1: Module type Manufacturer Type Rating Tianshui 213 Electrical GSC1(CJX4-d)-4011 220Vac,40A Apparatus Co.,Ltd LS Industrial systems Co.,Ltd. GMC(D)-32 600Vac,45A Tianshui 213 Electrical GSC1(CJX4-d)-6511 220Vac,65A Apparatus Co.,Ltd • This UPS should be connected with TN earthing system. • The power supply for this unit must be single-phase rated in accordance with the equipment nameplate. It also must be suitably grounded.

  • Page 6: Standards

    • Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe proper precautions. a) Remove watches, rings, or other metal objects b) Use tools with insulated handles. c) Wear rubber gloves and boots. d) Do not lay tools or metal parts on top of batteries. e) Disconnect charging source prior to connecting or disconnecting battery terminals.

  • Page 7: Installation

    2. Installation There are two types: standard and long-run models. Please refer to the following model table. Model Type Model Type Ultima RT 6K Standard model Ultima RT 6KL Long-run model Ultima RT 10K Standard model Ultima RT 10KL Long-run model 2-1.
  • Page 8 Diagram 3: Battery Pack Rear Panel Diagram 4:ISO Bank Rear Panel Overlook Diagram 5: ISO Bank Output Terminal...
  • Page 9 Diagram 6: Connection between Battery Pack and UPS 1. RS-232 communication port 2. USB communication port 3. EPO (Emergency Power Off) connector 4. Share current port (for parallel function) 5. Parallel port (for parallel function) 6. Intelligent slot 7. EMBS (External Maintain Bypass Switch) port 8.

  • Page 10: System Single Line Diagram

    16. ISO bank output terminal (Refer to Diagram 5 for the details) 17. ISO bank input 18. ISO bank output 1 19. ISO bank output 2 Note: Keep the EPO connector closed for UPS normal operation. To activate EPO function, please remove the jumper.

  • Page 11: Rack/Tower Type Installation

    2-4. Rack/Tower type installation 2-4-1 Tower type installation The UPS system is shipped with four plastic feet and 6 plastic extensions (2 short extension plus 6 long extensions). Those can be used to tower mount the UPS’s power module (3U) or UPS’s power module and a battery bank (6U) or UPS module with ISO bank and one battery bank (9U).

  • Page 12: Single Ups Installation

    Install UPS module with ISO bank and one Step 1 Step 2 battery bank in 6U Assemble two feet and three long extension -s with one short extension as one tower stand shown in step 1. Align the two stands approximately 35cm apart in step 2.
  • Page 13 Ultima RT 6K(L) Ultima RT 10K(L) NOTE 1: The cable for Ultima RT 6K(L) should be able to withstand over 40A current. It is recommended to use 10AWG or thicker wire for safety and efficiency. NOTE 2: The cable for Ultima RT 10K(L) should be able to withstand over 63A current. It is recommended to use 8AWG or thicker wire for safety and efficiency.
  • Page 14 System Connection Overlook NOTE 1: Make sure that the wires are connected tightly with the terminals. NOTE 2: Please install the output breaker between the output terminal and the load, and the breaker should be qualified with leakage current protective function if necessary. Put the terminal block cover back to the rear panel of the UPS.

  • Page 15: Output Configuration

    2-6. Output Configuration The UPS’s output should be connected to the input of ISO bank and the output of ISO bank is the final output of system. The UPS’s output connect to the input of ISO bank ★ Option 1: The output of ISO bank There are 2 sets of low-voltage outputs (104/110/115/120V) on L1-N1 &...
  • Page 16 After connecting L1&L2 and N1&N2, it becomes one low-voltage output (104/110/115/120V) at L1-N1 for 100% of UPS rating power. Connect load to L1-N1 or L2-N2. ★ Option 3: The output of ISO bank After connecting N1 and L2, it becomes one high-voltage output (208/220/230/240V) at L1-N2 for 100% of UPS rating power.

  • Page 17: Parallel Ups Installation

    2-7. Parallel UPS Installation For parallel UPS installation, please contact your dealer for more professional support.

  • Page 18: Operations

    3. Operations 3-1. Operating Mode/Status Description Mode/Status Description UPS Power On When UPS is powered on, it will enter into this mode for a few seconds for initializing the CPU and system. AC Mode When the input voltage is within acceptable range, and the UPS is turned on (the inverter is running), the UPS will provide pure and stable sine wave AC voltage.

  • Page 19: Led Indicators

    Button Function  Press this button to turn on the UPS. ON/ENTER  Or press it to confirm the selection in the menu.  Press this button to turn off the UPS. OFF/ESC  Or press it to return to last menu. ...
  • Page 20 On”; Move the arrow to “Yes” by up or down button, then press “ON/ENTER”, the UPS will be starting up with beeping once. You could also enter the “control menu” to select the instruction “Turn On” to startup the UPS. Please refer to the section of “LCD operation”. 3) A few seconds later, the UPS will enter into Line mode;...
  • Page 21 down all loads as soon as possible to protect the devices or save data. Otherwise, there is a risk of data loss or load failure; 2) In Battery mode, if buzzer sounds annoying, you could enter ”Control->Mute” on LCD to silence it. Please refer to the section of “LCD operation”;...

  • Page 22: Parallel Ups Operation

    Note：1 = insert with jumper; 0 = no jumper; x = these pins are for other functions. NOTE: This operation should be done by professional technicians, please contact the dealer for support. 3-6. Parallel UPS Operation For parallel UPS operation, please contact your dealer for more professional support. 3-7.

  • Page 23: Operation Menu

    3-7-1. Main interface (home page) 1) In the first line, it will display the mode name in different running mode; 2) When the alarms happen, the warning or fault information will display below the “load” line; 3) When the front panel is not operated for quite a long time, the page will recovery to this home page; 4) Press the “UP”...

  • Page 24: Control Items

    3-7-2-2. Control items NOTE 1: Usually, all these four items could be seen on this interface except for “Para Unlock”. “Para Unlock” appears when and only when parallel communication failure is happening. NOTE 2: “Turn On” will be displayed if UPS is not turned on; “Turn Off” will be displayed if UPS is turned on; In the general situation, these items will not be displayed in the same time or in all operation modes.
  • Page 25 → → 3) Mute This item is to mute the buzzer on battery/bypass/fault mode. In any other modes, this item also could be seen but does not work and related hint will be shown meanwhile. After confirm, it will go to the home page and you could see the change of the mute icon.
  • Page 26 3-7-2-3．Measurement pages These pages display the measurement value of the parameters such as voltage / current / frequency / power / capacity / time etc. Press “UP” or “DOWN” to explore the pages. 3-7-2-4．Information Pages These pages display the information of parameters setting value or status. Press “UP” or “DOWN” to explore the pages.
  • Page 27 3-7-2-5. Setting Menu This menu is used to adjust the parameters or do the calibrations. NOTE: Not all settings could be available in every operation mode; If the setting is not available in present mode, the LCD will show prompt message with “Item can not be set in this mode”. Press any button or just wait for several seconds then this message will disappear.
  • Page 28 2) ECO setting (only available or effective on bypass mode) Interface Description 1. Status Enable: Enable ECO Function Disable: Disable ECO Function If ECO function is disabled, voltage range and frequency range for ECO mode still can be set, but it is meaningless unless the ECO function is enabled.
  • Page 29 UPS will shut down to protect battery after backup time arrives when the “Dischg Protect” is enabled. If “Dischg protect” is disabled, then this setting does not make sense whatever the setting is; The default value for this setting is 990mins. 2.
  • Page 30 6) Other settings (available on all operation modes) Interface Description Hot standby: Enable: Hot standby function is enabled. It means that the current UPS is set to be host of hot standby system, and it will automatically restart after AC recovery even without battery connected. Disable: Hot standby function is disabled.
  • Page 31 3-7-2-6. Alarm page This page record and display the faults or warnings event happened in history.

  • Page 32: Trouble Shooting

    4. Trouble Shooting 4-1. Warning status When Fault LED flashes and the buzzer beeps once every second, it means that there are some problems with UPS. Users can see the warning code from LCD panel and refer to the trouble shooting table to check what problem probably happen.
  • Page 33 Warning 10: IP Fuse Open Input fuse on the power stage Check and replace the input board is burnt. fuse. Warning 33: Overload 3Times Locked in bypass after overload 3 Remove excess loads from UPS times in 30 minutes. output first, then shut down the UPS and restart it.
  • Page 34 Fault 1A: NegPower UPS output power is negative. It Contact the dealer. means there is energy feedback into the internal of UPS from output. It may be caused by regenerative load; or caused by the current control failure in the parallel system.

  • Page 35: Storage

    5. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months 1-2 hours 40°C - 45°C...

  • Page 36: Specifications

    6. Specifications MODEL ULT-6K(L)RT ULT-10K(L)RT CAPACITY* 6000 VA / 5400 W 10000 VA / 9000 W INPUT Nominal Voltage 200–240V 110 VAC ± 3 % at 50% Load; Low Line Loss Voltage 176 VAC ± 3 % at 100% Load Range Low Line Comeback Low Line Loss Voltage + 10V...
