Summary of Contents for Maruson SUR-809UPS

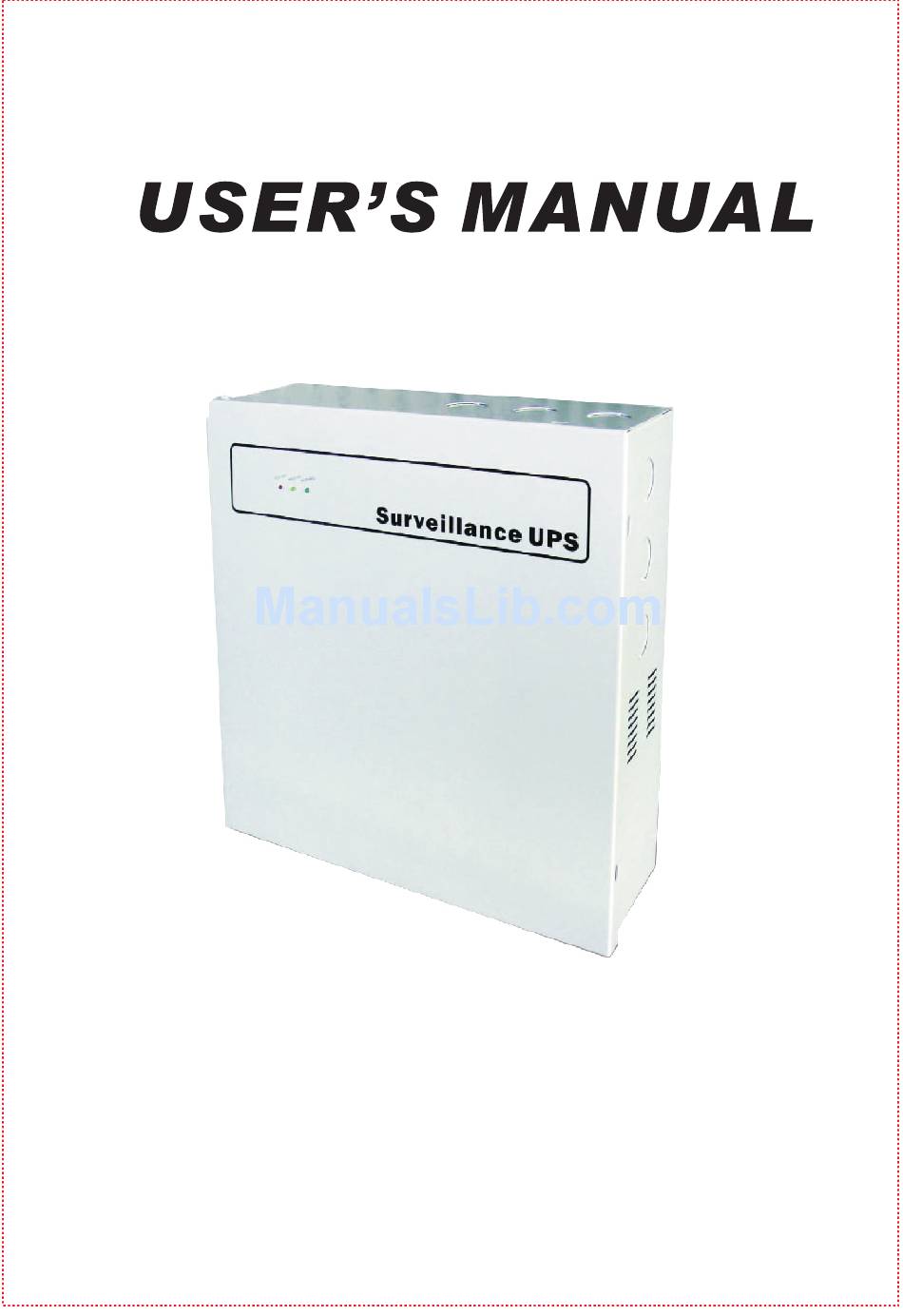

- Page 1 Surveillance UPS...
- Page 2 The Surveillance UPS Series is an innovative and professional battery backup solution for all your surveillance needs. You will be kept at ease knowing that during a power outage, your CCTV camera and DVR/NVR equipment will continue running so you can keep monitoring and recording your premises.
- Page 4 IPS- SW-0 06 COD E:2 2012 -2-1 5...
- Page 5 4 3 2 IPS -SW -00 6 COD E:2 201 2-2 -15 1. Input Fuse 2. AC Input 3. AC Output 4. Fan (SUR-1218UPS/1518UPS): Operating on battery mode and over heat.
- Page 6 When AC power fails, “NC” and “NO” connection will provide a notification signal to the DVR/NVR or alarm system. Majority of DVR/NVR systems also have e-mail alert features to send notification of AC power failure. UPS Bypass Switch A) UPS Mode: Unit will go into backup mode if power fails. B) AC Bypass Mode: Switch to this mode when batteries need to be changed or UPS is abnormal.
- Page 7 * You can only turn dip switches ON with ports number you have your camera connected * You will get an wrong message if you switch ON with ports that have no camera connected. 8. 12VDC Port 1 ~ Port 9 (SUR-809UPS) 12VDC Port 1 ~ Port 14 (SUR-1218UPS)
- Page 8 5.2 Turning off the unit: Push the button for 4 seconds to turn the UPS power off.The UPS will turn off power completely within 10 seconds if there is a utility failure during off mode. If the utility power is normal, the UPS will continue to charge the battery.
- Page 9 This unit is shipped from the factory with its internal battery fully charged, however, some charge may be lost during shipping and the battery should be recharged prior to use. Plug the unit into an appropriate power supply and allow the UPS to charge fully by leaving it plugged in for at least 10 hours.
- Page 11 Press the ON/OFF/ TEST/SILENCE button more than 1 second Power cord loose...
- Page 12 24.5 lbs 24 lbs ISO 9001-2008 *Battery backup time varies with equipment, configuration, battery age, temperature, etc. Turning off the monitor will extend backup time. *Additional batteries and cable are optional. Specifications are subject to change without further notice. 701-0110205 IP-DCUPS-Maruson-04...
