AT-MWS0091
Introduction
This guide provides assembly instructions for the AT-MWS0091 Multi-region Power AC Adapter.
The AC adapter is shipped with the AC plug for US attached. When the AC socket on your wall is
other then the USA type, you can replace the AC plug attached with one of the optional AC plugs.
Verify Package Contents
1. Unpack the shipment and ensure that the AT-MWS0091 package contents match the
components shown in Figure 1.
Detach AC Plug From AC Adapter
1. Press the release tab on the AC plug with your thumb and slide the AC plug as shown in
Figure 2.
2. Remove the AC plug from the AC adapter as shown in Figure 3.
PN 613-002434 Rev B
(WA‐24Q12R)
Quick Install Guide

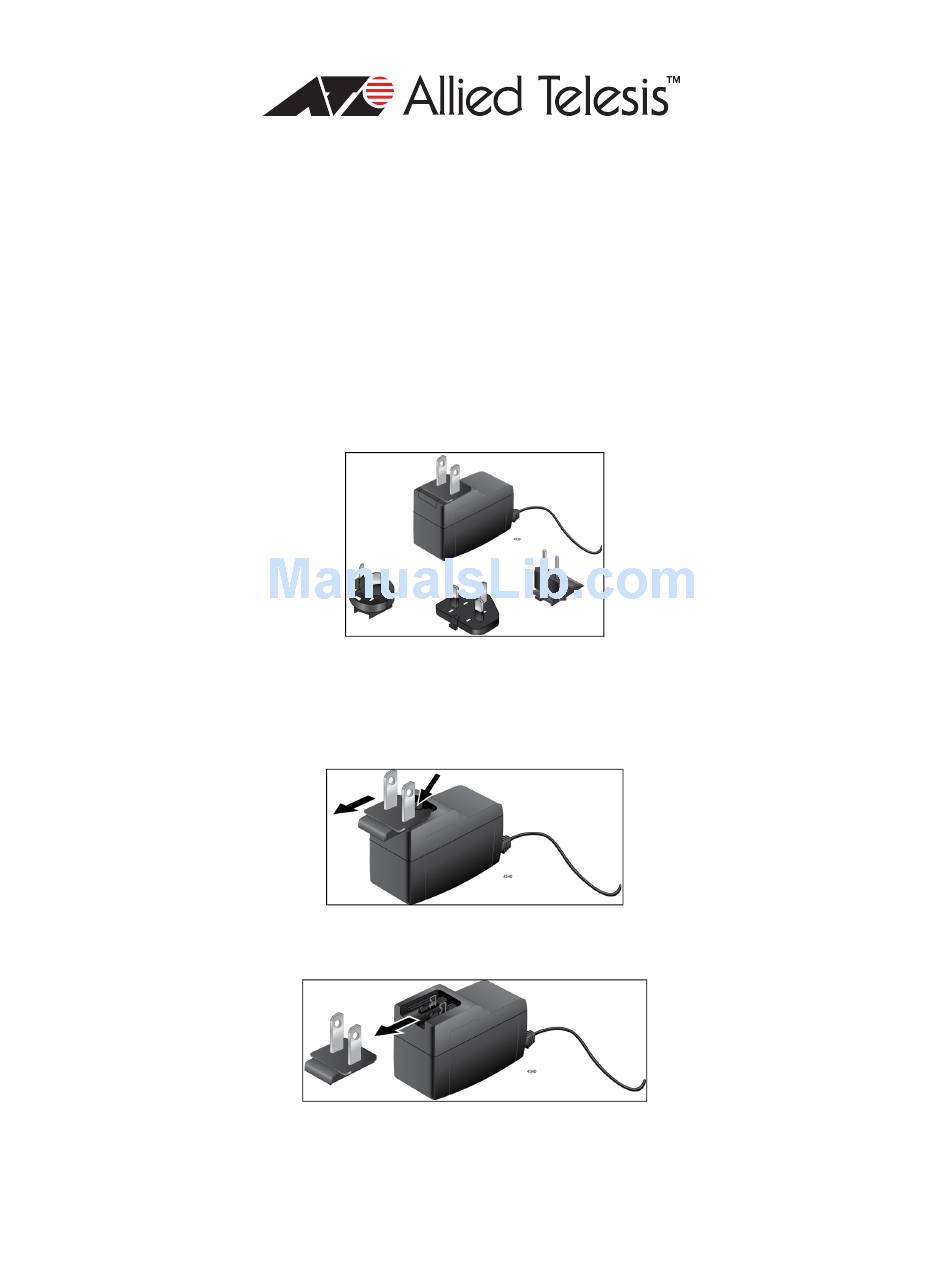

Figure 1. Package Contents
Figure 2. Press Release Tab On AC Plug
Figure 3. Detach AC Plug
1
AC/DC Adapter Kit
