Becker AR 4201 VHF Radio Guide
Squelch
Button
Active
Frequency
Standby
Frequency

Volume/Power

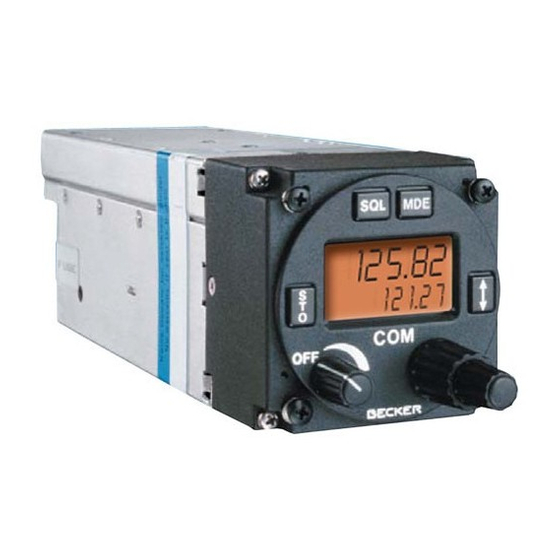

The Becker AR 4201 is a compact unit with many functions yet is easy to operate.

Basic Operation

Adjust volume using the volume knob. Turn fully counter clockwise to turn the unit off.
Squelch is preset so does not need to be adjusted manually. It can be manually turned off by
pressing the squelch button when receiving weak singals and is indicated by an ON or OFF on the
screen when pressed.
The LCD screen will show two frequencies. The top frequency (large numbers) is the active
frequency where radio signals are being transmitted and received. The bottom frequency (small
numbers) is the standby frequency that the pilot can change when selecting another one to use.
To change frequency use the MHZ and KHZ adjustment knobs to select the desired frequency on the
standby frequency and press the Frequency Toggle Button. This will swap the two over and now
make the desired frequency active.
Press the toggle button to
change the active channel
Pressing the toggle button
has now changed 122.7 to
being the active channel
Mode Button
Frequency Toggle
Button
MHZ Adjust
KHZ Adjust

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR 4201 and is the answer not in the manual?

Questions and answers

Related Manuals for Becker AR 4201

Summary of Contents for Becker AR 4201

  • Page 1: Basic Operation

    MHZ Adjust KHZ Adjust Volume/Power The Becker AR 4201 is a compact unit with many functions yet is easy to operate. Basic Operation Adjust volume using the volume knob. Turn fully counter clockwise to turn the unit off. Squelch is preset so does not need to be adjusted manually. It can be manually turned off by pressing the squelch button when receiving weak singals and is indicated by an ON or OFF on the screen when pressed.

  • Page 2: Mode Button

    Mode Button Pressing the mode button will give access to three different modes. Mode 1 is the default screen as explained above. Mode 2 will access the Stored Memory Frequencies. The memory number will be shown on the bottom of the screen and the active frequency on the top. To cycle through the stored memories rotate the KHZ knob to view one by one or the MHZ knob to view in steps of ten memories at a time.
