Summary of Contents for Becker USB-BKR

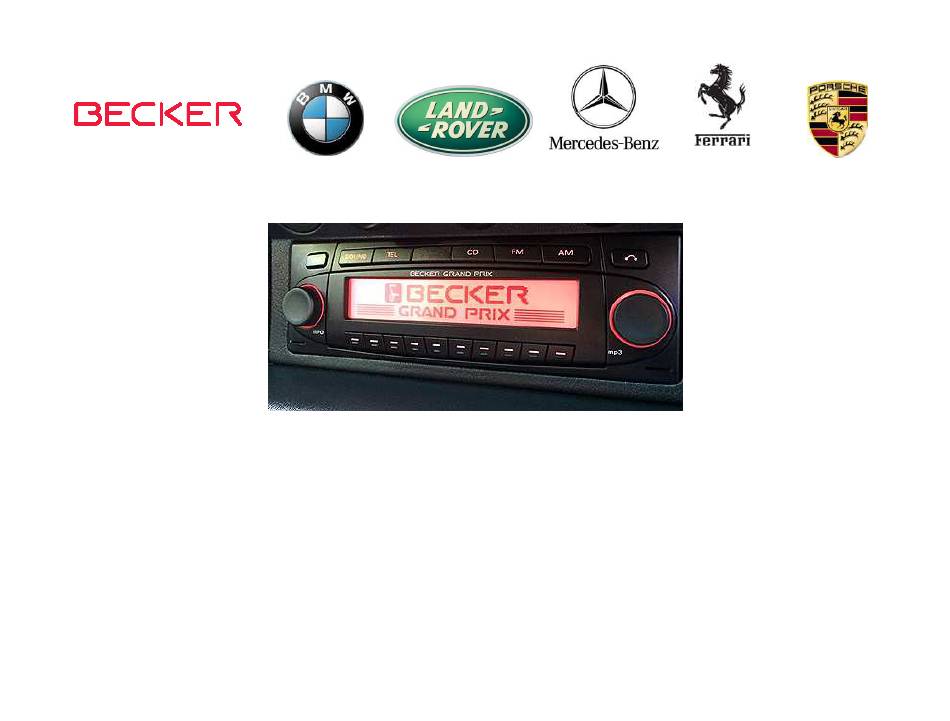

- Page 1 Courtesy of:DiscountCarStereo.com USB-BKR Apple iPhone, iPod & iPad USB Adapter Installation Guide for Becker Radios with AUX Feature This adapter works on any Becker radio that has an AUX menu option Revised: May 8, 2015...
-
Page 2: Installation
The USB-BKR works on all Becker Radios that has an AUX setting in the user menu and connecting the adapter requires sacrificing the CD Changer. - Page 3 A. Flush Mounting the USB Terminal to the Dash Drill a ¾” hole in the dash using a step drill bit or equivalent (See Fig. 3) Fig. 5 USB Male (left) USB Female (Right) Push the USB flat terminal ( See Fig. 6) through the hole until it snaps in place and flush with mounting surface (See Fig.
- Page 4 Tuck and secure extra wire from moving parts and test operation (See Enabling the AUX section below) B. Installing Optional Mounting Bracket without drilling Fig. 10 Locate a flat surface in the location of choice that is within 6 ft. of radio to mount the optional bracket to surface Push the flat USB terminal through the hole in the using adhesive/tape or screws.
-
Page 5: Operation
Other Radios with ☼button (i.e. BE4602) Radios with TP button: (i.e. CDR-220) Turn radio ON. Press and hold the ☼ button for 8 seconds, until Becker 1 Turn radio "ON" is displayed. Press and hold the "TP" button for about 8 seconds until Turn the Tuning Knob until AUX OFF is displayed. - Page 6 Press the rotary control/push (OK) button Press AUX to enable/disable. Turn the rotary control /push (OK) button to select External Device Becker 4775 (Land Rover Traffic Pro) Confirm selection by pressing the rotary control/push (OK) button Select “AUX” from list and turn it “ON”.
-
Page 7: Test Operation
Becker DTM /High speed (i.e. BE-7892, BE7910) Disclaimer • This product has no affiliation with Porsche, Becker or Apple • There are no warranties expressed or implied by purchase of this product • We’re not liable for misuse of this product.
