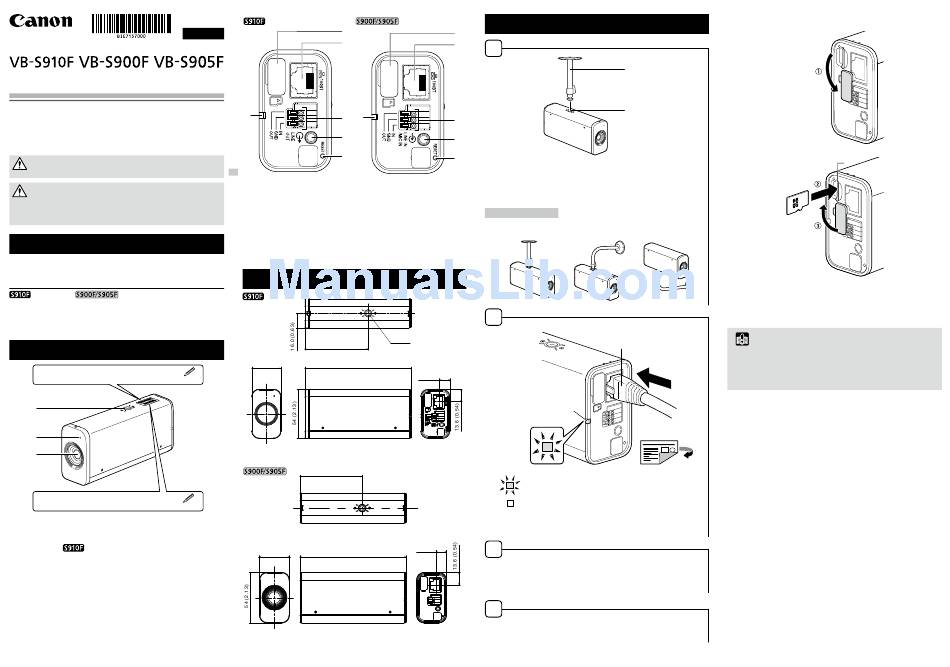

Canon VB-S910F Installation Manual

BIE-7157-000
ENGLISH
Network Camera
/ /

Installation Guide

Please be sure to read the "Safety Precautions" section for
correct use. After reading this Installation Guide, keep it in a
readily accessible location for future reference. This camera
is for indoor use only.
* Some cameras are not available in certain countries or regions.
WARNING To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
Caution
Request a professional installer for all installation
work. Never try to install the camera yourself.
Doing so may result in unforeseen accidents
such as dropping the camera or electric shock.
Check Included Items
Camera Warranty Card
Installation Guide (This document) Setup CD-ROM
Symbols Indicating Camera Model
: VB-S910F : VB-S900F/VB-S905F
© CANON INC. 2016 Printed in Taiwan

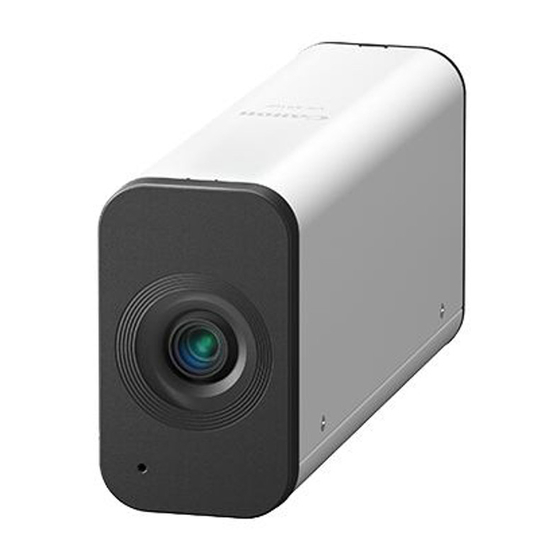

Part Names

Serial_ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
1
2
3
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
1. Mounting Screw Hole (a 1/4-20 UNC mounting screw less than
5.5 mm (0.22 in.) in length will fit the screw hole)
2. Microphones
3. Lens
4
5
9
6 9
7
8
4. Memory card slot cover
5. 100Base-TX LAN connector
6. External device I/O terminal
7. Audio output terminal
8. Reset switch (please refer to the "Operation Guide")
9. LED
10. Audio input terminal

External Dimensions

*1
69.9 (2.75)
32 (1.26) 117 (4.61)
11.4 (0.45)
*1 tripod screw holes
67 (2.64)
11.4 (0.45)
32 (1.26) 114 (4.49)

Installing the Camera

4
5 1
6
10
8
Weight: Approx. 180 g (6.4 oz.)
(camera only)
a. Mounting pole
b. Mounting screw hole
Example installations
Using a ceiling
mounting pole Using a wall mounting pole
2
d
Unit: mm (in.)
LED
: When powered on, during reboot,
during normal use
: When [Turn Off] is selected
(please refer to the "Operation Guide")
c. LAN cable d. LED
3
Set the camera angle
Please manually adjust the camera angle while checking the
video on a computer (please refer to the "Operation Guide").
4
Perform camera settings by using the software found on the
Unit : mm (in.)
Setup CD-ROM (please refer to the "Operation Guide").

If Using a Memory Card

a
b
e. Memory Card Slot
To remove the memory card, push it in all the way until the card
slightly pops out and remove.
Important
c
• Insert a memory card before installing the camera.
• When using a memory card with the camera for the first time, it is
recommended to format the card after inserting it into the camera
(please refer to the "Operation Guide").
Please refer to the
reverse side of this
guide for details.
e
