Canon VB-S30D Installation Manual

BIE-7018-001
ENGLISH
Network Camera
/ / /

Installation Guide

Please be sure to read the "Safety Precautions" section for
correct use. After reading this Installation Guide, keep it in a
readily accessible location for future reference. This camera is
for indoor use only.
* Some cameras are not sold in some regions.
WARNING T o reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
Caution
R equest a professional installer for all camera
installation work. Never try to install the camera
yourself. Doing so may result in unforeseen
accidents such as dropping the camera or
electric shock.
Check Included Items
Camera (VB-S30D/VB-S31D/ Template
VB-S800D/VB-S805D) Installation Guide (This document)
Setup CD-ROM Warranty Card
Safety Wire Notice
Symbols Indicating Camera Model
Camera specific functions will be listed using the icons below.
: VB-S30D : VB-S31D : VB-S800D/VB-S805D
© CANON INC. 2015 Printed in Taiwan

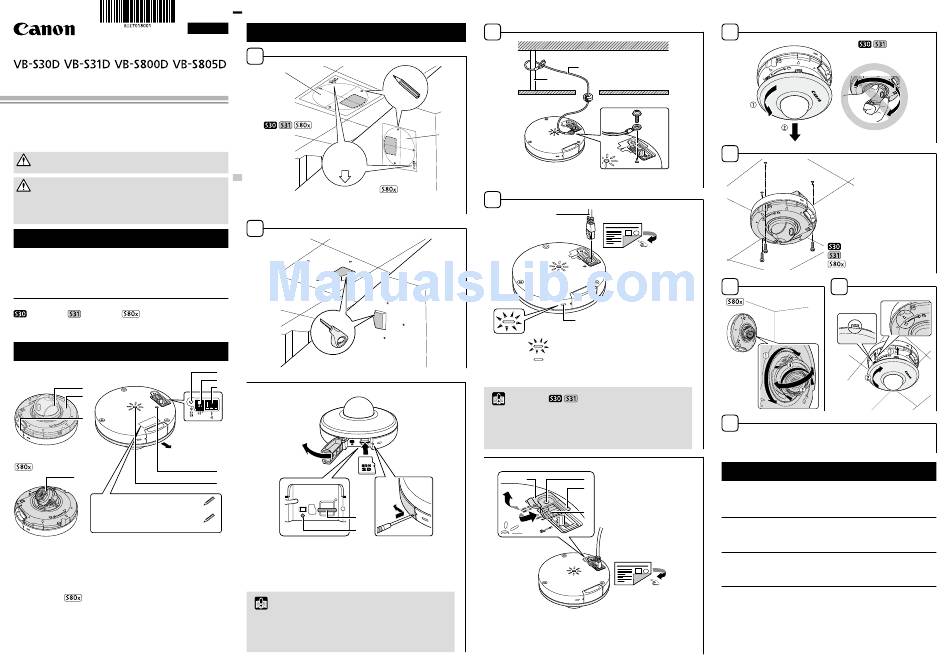

Part Names
1
2
3
FRONT
9
Serial_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
1. Camera Head / 2. Top Cover / 3. Memory Card Slot Cover /
4. Audio Input Terminal / 5. External Device I/O Terminal /
6. 100Base-TX LAN Connector / 7. Safety Wire Attachment /
8. Tripod Mounting Screw Hole (a 1/4-20 UNC tripod mounting
screw less than 5.5 mm (0.22 in.) in length will fit the screw hole) /
9. Rotation Dial
Installing the Camera
1
a
Ceiling Installation
FRONT
Wall Installation
a. Template
2
4
5
6
If Using a Memory Card
7
8
b
c
b. Memory Card Slot
c. Reset Switch (see "Operation Guide")
To remove the memory card, push it in and release it so it pops out
slightly. Grasp the card and remove it.
Important
• Insert a memory card before installing the camera.
• When using a memory card with the camera for the first time, it is
recommended to format the card after inserting it into the camera
(see "Operation Guide").
3
e
d
a
d. Anchor or Structure / e. Safety Wire
4
f
Please see the reverse side
of this guide for details.
g
LED
: When powered on, during reboot, during normal use
: When [Turn Off] is selected (see "Operation Guide")
f. LAN cable / g. LED
Important
The camera head will move and make noise when the power is
turned on.
• D o not touch the camera head.
• A fter the head stops moving, mount the camera.
If Using the External Device Terminal or Audio Terminal
h
i
j
k
Please see the reverse side
of this guide for details.
h. Protective Cover for Audio Input Terminal
i. Audio Input Terminal
j. Protective Cover for External Device I/O Terminal
k. External Device I/O Terminal
5
6
Weight:
Approx. 270 g (9.6 oz.)
Approx. 270 g (9.6 oz.)
Approx. 240 g (8.5 oz.)
7 8
9
Perform camera settings by using the software found
on the Setup CD-ROM (see "Operation Guide").
Accessories
The following accessories can be purchased separately as
necessary. Some accessories are not sold in some regions.
Pendant Mounting Kit PC30-VB
This is an attachment for large stores with high ceilings used to install
the camera at the end of a pipe stretching down from the ceiling.
Surface Mounting Spacer SS30-VB
This is an attachment used to install a camera without having to
drill any holes in the wall or ceiling for cables.
Junction Box Mounting Kit PS30-VB
This is an attachment used to install a camera using an electrical
junction box.
The contents of this guide are subject to change without any prior notice.
