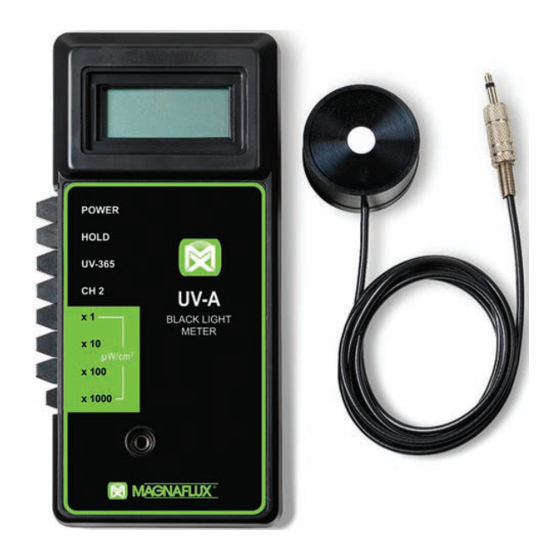

MAGNAFLUX UV-A LIGHT METER
SPECIFICATIONS:
The Magnaflux UV-A Digital Light Meter comes loaded with all of the
standard features necessary to accurately monitor and calibrate
UV Black Light sources used in fluorescent magnetic particle and
liquid penetrant NDT applications. The unit's rugged, cost effective
design features many of the operating advantages of more expensive
UV light meters, but without the added cost or complexities of data
storage and plotting features for those who do not require them.
UV-A BLACK LIGHT METER SPECIFICATIONS
Lighting Types
UV-365 Sensor (320 - 400nm)
Display
4-Digit LCD
Accuracy
±10%
Sampling Time
1 Second
Sensor Cord length
45" (114 cm)
Power Supply
DC 9V Battery
7.08" x 3.14" x .41"
Dimensions (Unit)
(18 x 8 x 3.6 cm)
Weight (Unit)
7.05 oz. (0.2kg)
Data Hold
Yes
Range Selection
Yes (x1, x10, x100 and x1000)
Low Battery Warning
Yes
Warranty
Manufacturer 1 Year Limited
MAGNAFLUX 3624 West Lake Avenue Glenview, IL 60026
magnaflux.com www.magnaflux.com
(847) 657- 5300 CS@
OPERATING MANUAL
MAGNAFLUX
UV-A LIGHT METER
P/N 00-000
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Magnaflux UV-A
Summary of Contents for Magnaflux UV-A
-
Page 1: Operating Manual
OPERATING MANUAL MAGNAFLUX UV-A LIGHT METER SPECIFICATIONS: MAGNAFLUX The Magnaflux UV-A Digital Light Meter comes loaded with all of the UV-A LIGHT METER standard features necessary to accurately monitor and calibrate UV Black Light sources used in fluorescent magnetic particle and liquid penetrant NDT applications. - Page 2 Power Button. 8. High-impact, protective shell STORAGE When not in use, the Magnaflux UV-A Digital Light Meter should be stored in its protective case to insulate the instrument from strong vibrations or impact damage that could effect its operation.
