Avante FUROMCTBAA4BG Assembly Manual

Office Massage Chair Assembly Guide
Parts List
No. Image Name
A Wheel
Base
B
C Gas Strut
* D Strut Cover
Height
E Adjustment
Lever
M6x20mm
F
Screw
M6x25mm
G
Screw
H Arm Rest
Seat Base
I
J Back Support
K Cap
* Applies to some non-chrome finish models.
Design and appearance may vary to those shown in this guide.
Qty.
5
1
1

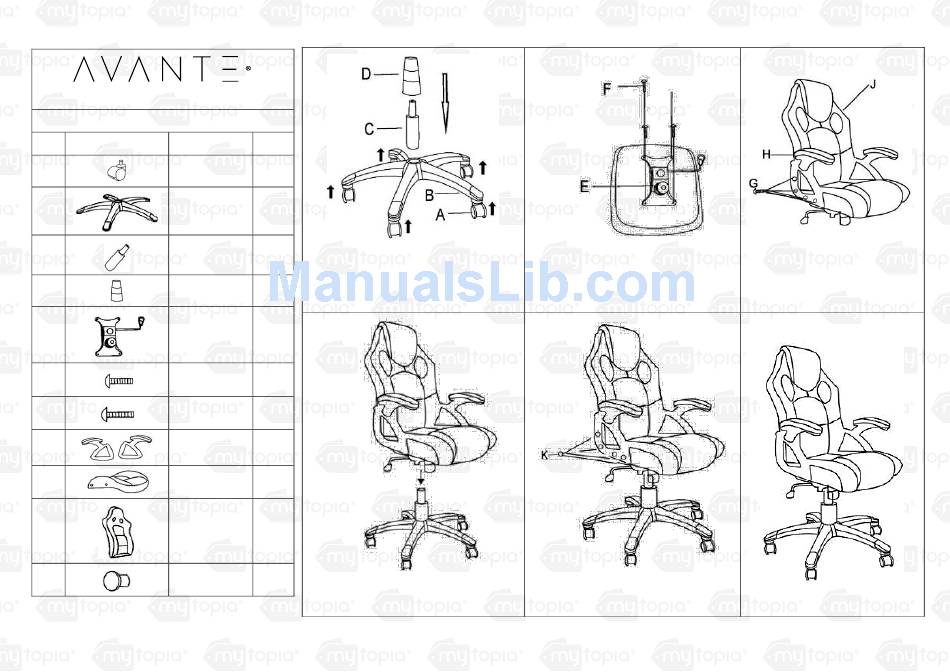

1: Attach wheels (A) to frame (B), then
insert gas strut (C) into base. Some non-
chrome models may include a strut cover
1
(D) – if included, place it over the strut.
1
4
8
2
1
1
8
4: Push the seat assembly firmly on to the
top of the gas strut.
2: Attach height adjustment lever (E) to
the seat base (I) using 4 M6x20mm
screws (F). The end of the lever should
face toward the front of the chair.
5: Insert a cap (K) into each arm rest
screw hole.
3: Attach each arm rest (H) to the
seat base (I) using 2 M6x25mm
screws (G), then attach the back
support (J) to each arm rest using
2 M6x25mm screws (G).
The chair is now ready for use.
