- Page 1 HI-LO CHAIR ADJUSTABLE BED MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ………...……………………………….….….… 1 Introduction ………………...………………..………. 3 Care ……………………………………………..4 Features ...…………..………………..………..……..5 Unpacking Your Base ………………………….…..7 Attaching Legs …………………..………...…………8 Attaching Side Rails …………………………………...9 Attaching Headboard …………………………...……10 Hand Control Overview …………..….……………11 Troubleshooting ..……………………………..……..12 Product Guarantee ………..…………………..……13 Notes …………………………………………………..14... -
Page 3: Safety
SAFETY ATTENTION: Important Safety Disclaimers Read all instructions before using your adjustable base. Save these instructions. WARNING Always unplug the base from electrical outlet before servicing any part of the base. Unplug the base before cleaning. To safely disconnect, ensure base is in a flat position with all motors off. - Page 4 SAFETY To reduce the risk of falls on height adjustable bases, the base should • always be in its lowest position for sleeping and resting. The highest position should only be used for carer’s access to the user, ease of entry and exit of bed for the user and ease of making the bed.
-
Page 5: Introduction

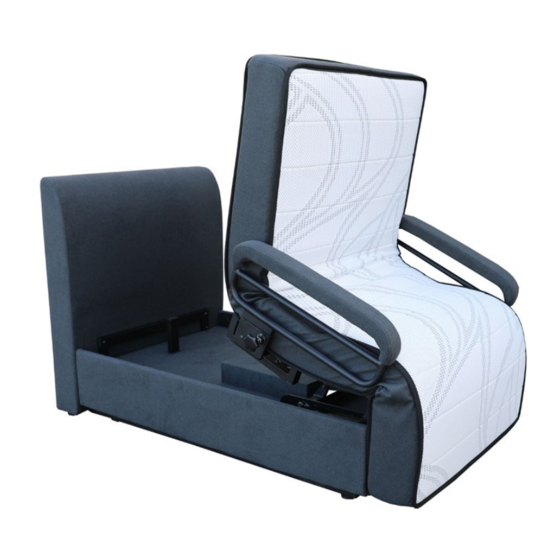

Congratulations on the purchase of your new AVANTE HI-LO CHAIR ADJUSTABLE BED The Hi-Lo Chair bed has been expertly designed to make getting into and out of bed easier. With vibration massage motors and Cool Balance mattress this product is a revolutionary leap forward in intelligent design. -
Page 6: Care
• intended use - not for entertainment. Lubricate moving parts using a non-corrosive lubricant every • 6 months or as required. Avante recommends the use of INOX. Beds should be positioned with clearance from walls and • objects so as not to cause damage. -
Page 7: Features
FEATURES PRODUCT FEATURES Stylish modern living design • Adjustable head and foot parts • Chair and lift position to assist • getting on and off bed Head and foot massage function • Wired remote control with LED • backlighting Fixed side grab rails for extra •... - Page 8 UNPACKING YOUR BASE Open both boxes (bed base and headboard) and remove protective plastic. Page 6...
-
Page 9: Unpacking Your Base
UNPACKING YOUR BASE 3. Locate box of parts and side rails, cutting the zip ties and removing the protective plastic. 4. Locate hand controller, cutting the zip tie and removing the protective plastic. Page 7... -
Page 10: Attaching Legs
ASSEMBLING - ATTACHING LEGS 1. Flip the bed carefully on its side. 2. Locate box of legs and screw in to each corner of the bed base. 3. Once completed, flip bed carefully back to a flat position. Page 8... -
Page 11: Attaching Side Rails
ASSEMBLING - SIDE RAILS 1. With the bed in an upright position, locate the side rails and line up with holes as shown. 2. Push the two prongs into the holes, pushing against the mattress as shown. 3. Locate the bolt as shown and fasten until as tight as possible. -
Page 12: Attaching Headboard
ASSEMBLING - ATTACHING THE HEADBOARD 1. Locate bracket slot at the bottom of the headboard. 2. Find the same matching bracket slot at the top of the bed base. 3. Slide the headboard brackets into the top of the bed base to secure the headboard. -
Page 13: Hand Control Overview
HAND CONTROL OVERVIEW Ensure the remote is plugged into the control box underneath the bed. The remote should look like the one to the right. Please refer to the following diagram explaining the functions. Raise head Lower head part part of the bed of the bed Lower leg part Raise leg part... -
Page 14: Troubleshooting
Head & Foot functions. If you have followed the instructions outlined in this manual, and your problem is persisting, please contact the retailer you originally purchased your bed from or Avante Australia for further assistance. Page 12... -
Page 15: Product Guarantee
Avante Australia proudly provides a full guarantee (10 years—applies to frame, structure & electric motors only. All other electronic components & upholstery are covered for 2 years). Please refer to www.avante.com.au for details against faulty workmanship and/or faulty materials. During the guarantee period, if we are satisfied there is a genuine fault, we will repair or replace the product if it’s an option. - Page 16 To make a claim under this Guarantee please contact your bedding retailer who will initiate the claim process with us. If this cannot be done, please contact Avante Australia Pty Ltd directly via the details on the back of this manual.
-
Page 17: Notes
NOTES Page 15... - Page 18 NOTES Page 16...
- Page 19 Avante Australia Pty Ltd Unit 2, 29-71 Saltwater Circuit Narangba, QLD 4504 Phone: 07 3284 3133 Fax: 07 3284 3199 www.avante.com.au...
