- Page 1 ERGOADJUST DELUX ADJUSTABLE BED MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ………...……………………………….….….… 1 Introduction ………………...………………..………. 3 Care ……………………………………………..4 Features ...…………..………………..………..……..5 Unpacking Your Base ………………….…..…... 6 Attaching Castors ...……………………...……...…… 7 Attaching Mattress Bars ……………………………… 8 Hand Control Overview…………………..….…..9 Troubleshooting ..………………………..…………..12 Product Guarantee ………..…………………..……14 Notes …………………………………………………..16... -
Page 3: Safety
SAFETY ATTENTION: Important Safety Disclaimers Read all instructions before using your adjustable base. Save these instructions. WARNING Always unplug the base from electrical outlet before servicing any part of the base. Unplug the base before cleaning. To safely disconnect, ensure base is in a flat position with all motors off. - Page 4 SAFETY To reduce the risk of falls on height adjustable bases, the base should • always be in its lowest position for sleeping and resting. The highest position should only be used for carer’s access to the user, ease of entry and exit of bed for the user and ease of making the bed.
-
Page 5: Introduction

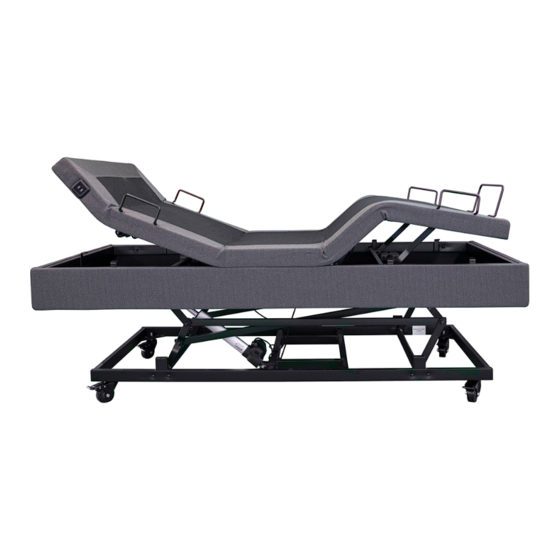

Congratulations on the purchase of your new AVANTE ERGOADJUST DELUX BED The ErgoAdjust Delux is Avante’s new advanced adjustable bed that embodies function and comfort. The bed is equipped with a full package of functionalities for mobility including Hi-Lo lift and pre-set customised positions. -
Page 6: Care
• intended use - not for entertainment. Lubricate moving parts using a non-corrosive lubricant every • 6 months or as required. Avante recommends the use of INOX. Beds should be positioned with clearance from walls and • other objects so as not to cause damage. -
Page 7: Features
FEATURES PRODUCT FEATURES Stylish modern living design • Adjustable head and foot parts • Head tilt function supporting • neck muscles Massage function • Wireless multifunction remote • control USB charging ports • Under-bed lighting • Head Tilt Function FRAME DESIGN FEATURES Whisper quiet, low voltage, DC •... -
Page 8: Unpacking Your Base
UNPACKING YOUR BASE Open the carton box & remove the protective plastic. 2. Locate box of parts, remove zip ties. 3. Locate hand controller, remove zip tie and protective plastic. Page 6... -
Page 9: Attaching Castors
ASSEMBLING (CASTORS) 1. Turn your ErgoAdjust Delux base on its side. 2. Locate the four castors from the box of parts; before screwing in, ensure all castors are in a locked position. 3. Screw in the castors into each hole at the corners of the bed as shown below. -
Page 10: Attaching Mattress Bars
ASSEMBLING (MATTRESS BARS) 1. Turn the base back to a flat position, with castors now attached. 2. Locate the mattress bars; attach each mattress bar as shown below. Page 8... -
Page 11: Hand Control Overview
Memory Position Head Up Head Down Foot Up Foot Down Head Tilt Up Head Tilt Down Flat Position Head Massage Massage Time Foot Massage Switch Turn Massage Underbed Light On and Off Massage Type Switch ERGOADJUST DELUX HAND CONTROLLER Page 9... - Page 12 SET UP MEMORY POSITION ERGOADJUST DELUX HAND CONTROLLER 1. Adjust the bed into desired position. 2. Press and hold the “Memory” button and the flat position button simultaneously for 5 seconds, until the backlight begins to flash.
- Page 13 LED light on the control box will turn green to indicate that pairing is complete. If not successful, repeat the above steps. ERGOADJUST DELUX To Sync TWO bases to ONE remote HAND CONTROLLER Requires Link Cable Insert link cable end into each control box on the separate bases you wish to sync.
-
Page 14: Troubleshooting
TROUBLESHOOTING Below is a list of possible problems & their solutions should the adjustable base fail to operate properly PROBLEM SOLUTION The base does not respond when Perform any or all of the following: the remote is used. Check that the power cord is plugged •... - Page 15 Fast Charge. If you have followed the instructions outlined in this manual, and your problem is persisting, please contact the retailer you originally purchased your bed from or Avante Australia for further assistance. Page 13...
-
Page 16: Product Guarantee
Avante Australia proudly provides a full guarantee (10 years—applies to frame, structure & electric motors only. All other electronic components & upholstery are covered for 2 years). Please refer to www.avante.com.au for details against faulty workmanship and/or faulty materials. During the guarantee period, if we are satisfied there is a genuine fault, we will repair or replace the product if its an option. - Page 17 To make a claim under this Guarantee please contact your bedding retailer who will initiate the claim process with us. If this cannot be done, please contact Avante Australia Pty Ltd directly via the details on the back of this manual.
-
Page 18: Notes
NOTES Page 16... - Page 19 NOTES Page 17...
- Page 20 Avante Australia Pty Ltd Unit 2, 29-71 Saltwater Circuit Narangba, QLD 4504 Phone: 07 3284 3133 Fax: 07 3284 3199 www.avante.com.au...
