6. While another person holds the Console (4) near the
Upright (2), connect the console wire harnesses to the
Upper and Main Wire Harnesses (42, 43). Insert the
excess wire downward into the Upright.
Attach the Console (4) to the Upright (2) with four
M4 x 16mm Round Head Screws (80). Be careful to
avoid pinching the Wire Harnesses (42, 43).
7. Attach the Seat (9) and the Backrest Bracket (3) to the
Seat Bracket (11) with four M6 x 42mm Button
Screws (81) and four M6 Washers (44) as shown.
Start all four Button Screws before you tighten any
of them.
8. Attach the Backrest (8) to the Backrest Bracket (3)
with three M6 x 38mm Button Screws (72) and three
M6 Washers (44). Start all three Button Screws
before you tighten any of them.

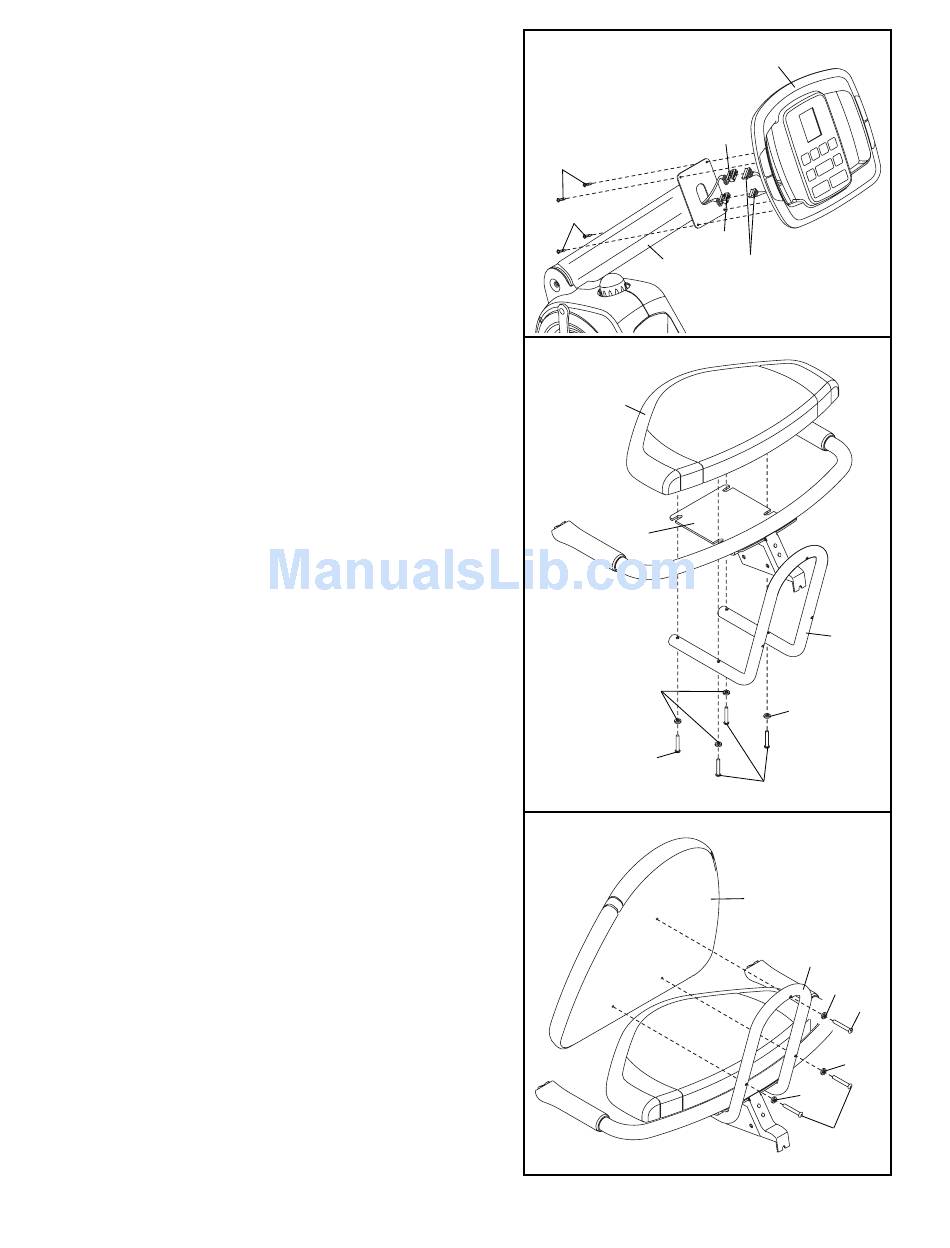

6
