FlashLogic FLRSHA6 Install Manual page 8

MODULE
A
RF PORT/WEBLINK PORT
G
F TELEMATIC PORT
B
E
C
D
A
MS2 MS2
2 1
4 3
6 5
B
2 1
4 3
6 5
8 7
MS1 MS1
10 9
12 11
14 13
16 15
18 17
20 19
C
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
2 1 04 EMPTY
4 3 05 EMPTY
6 5 06 PURPLE/GREEN - LOCK (-) OUTPUT
8 7 07 EMPTY
10 9 08 BLUE/GREEN (NC)
12 11 09 EMPTY
10 EMPTY
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
D
2 1
03 GRAY/BLACK (NC)
4 3
04 GRAY/WHITE - HOOD STATUS (-) INPUT
6 5
8 7
10 9
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2016
RELAY
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
AFTERMARKET HOOD SWITCH (-)

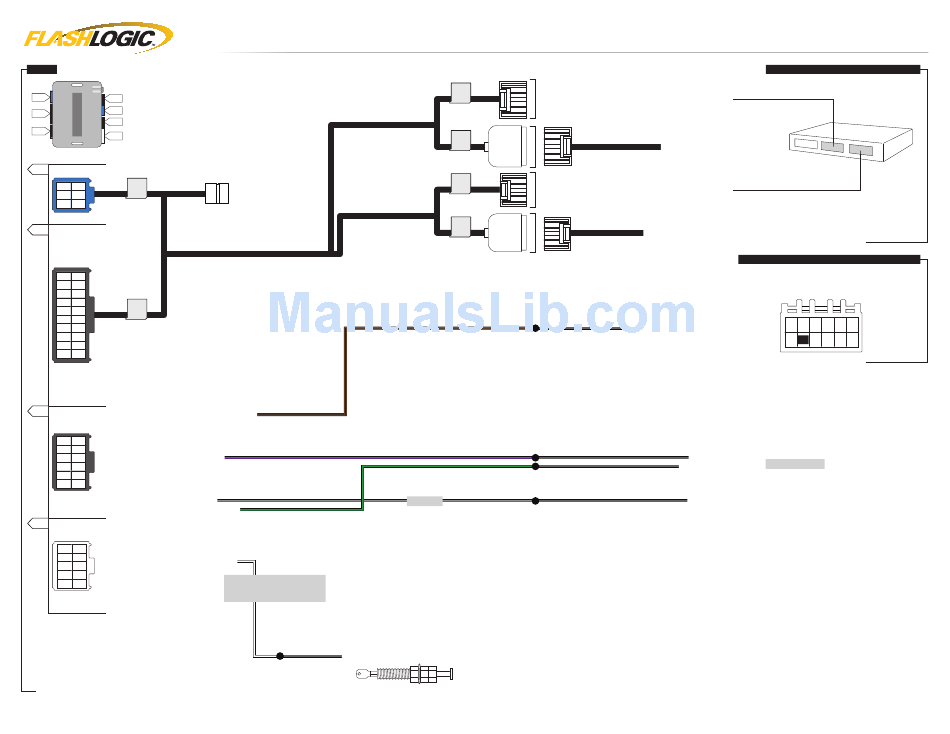

TYPE 2 - WIRING DIAGRAM - 1 OF 1
VS2 VS2
VS1 VS1
VS4 VS4
VS3 VS3
OPTIONAL
FLC-HA(RS)-HA6P-[FLRSHA6]-EN
SMART PCU (SEE WIRE CHART FOR LOCATION)
28 PIN PTS CONNECTOR
28 PIN PTS HARNESS
24 PIN IGNITION CONNECTOR
24 PIN IGNITION HARNESS
PARKING LIGHT SWITCH (LEFT OF STEERING COLUMN)
1 2 3
PARKING LIGHT (-) - 08
7 8 9 10 11 12
LOCK (-)
SEE WIRE CHART
UNLOCK (-)
HORN (-)
PAGE 8 OF 18
• 20160302
DOC.: #27448
