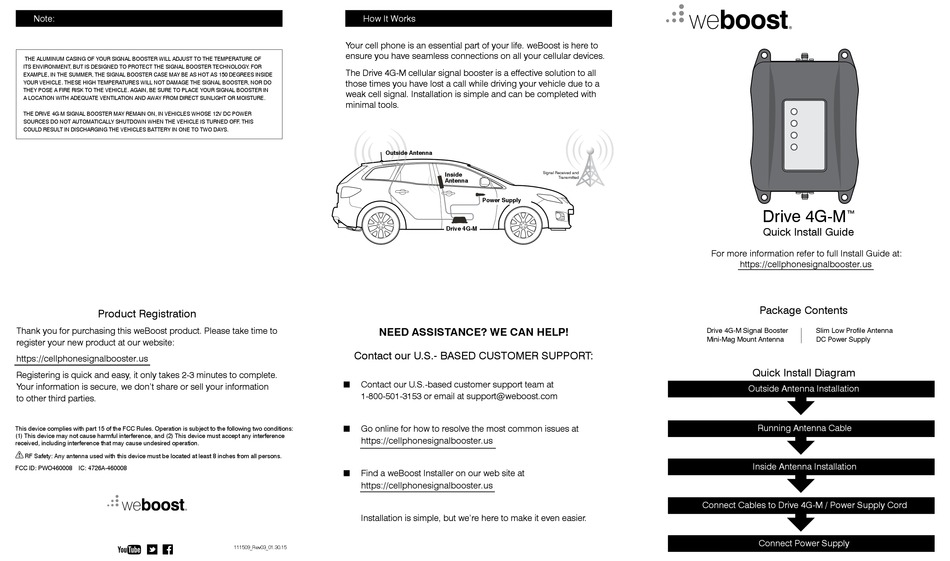

weBoost Drive 4G-M Quick Start Manual

Note:
THE ALUMINUM CASING OF YOUR SIGNAL BOOSTER WILL ADJUST TO THE TEMPERATURE OF
ITS ENVIRONMENT, BUT IS DESIGNED TO PROTECT THE SIGNAL BOOSTER TECHNOLOGY. FOR
EXAMPLE, IN THE SUMMER, THE SIGNAL BOOSTER CASE MAY BE AS HOT AS 150 DEGREES INSIDE
YOUR VEHICLE. THESE HIGH TEMPERATURES WILL NOT DAMAGE THE SIGNAL BOOSTER, NOR DO
THEY POSE A FIRE RISK TO THE VEHICLE. AGAIN, BE SURE TO PLACE YOUR SIGNAL BOOSTER IN
A LOCATION WITH ADEQUATE VENTILATION AND AWAY FROM DIRECT SUNLIGHT OR MOISTURE.
THE DRIVE 4G-M SIGNAL BOOSTER MAY REMAIN ON, IN VEHICLES WHOSE 12V DC POWER
SOURCES DO NOT AUTOMATICALLY SHUTDOWN WHEN THE VEHICLE IS TURNED OFF. THIS
COULD RESULT IN DISCHARGING THE VEHICLES BATTERY IN ONE TO TWO DAYS.
Product Registration
Thank you for purchasing this weBoost product. Please take time to
register your new product at our website:
https://cellphonesignalbooster.us
Registering is quick and easy, it only takes 2-3 minutes to complete.
Your information is secure, we don't share or sell your information
to other third parties.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
RF Safety: Any antenna used with this device must be located at least 8 inches from all persons .
FCC ID: PWO460008 IC: 4726A-460008
How It Works
Your cell phone is an essential part of your life. weBoost is here to
ensure you have seamless connections on all your cellular devices.
The Drive 4G-M cellular signal booster is a effective solution to all
those times you have lost a call while driving your vehicle due to a
weak cell signal. Installation is simple and can be completed with
minimal tools.
Outside Antenna
NEED ASSISTANCE? WE CAN HELP!
Contact our U.S.- BASED CUSTOMER SUPPORT:
n C ontact our U.S.-based customer support team at
1-800-501-3153 or email at support@weboost.com
n Go online for how to resolve the most common issues at
https://cellphonesignalbooster.us
n F ind a weBoost Installer on our web site at
https://cellphonesignalbooster.us
Installation is simple, but we're here to make it even easier.
111509_Rev03_01.30.15
Signal Received and
Inside
Transmitted
Antenna
Power Supply
Drive 4G-M
Drive 4G-M
™
Quick Install Guide
For more information refer to full Install Guide at:
https://cellphonesignalbooster.us
Package Contents
Drive 4G-M Signal Booster Slim Low Profile Antenna
Mini-Mag Mount Antenna DC Power Supply
TM
Cellular Signal Booster
Quick Install Diagram
460101
Outside Antenna Installation
Running Antenna Cable
Inside Antenna Installation
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Connect Cables to Drive 4G-M / Power Supply Cord
Connect Power Supply
