GE Security EST3 Installation And Service Manual page 319

Select data circuit from
list displayed here
Select controller from
list displayed here
Select cabinet from
list displayed here
Graphical representation of devices
remaining to be processed
Graphical representation of devices
already processed
Click here to start receiving
status information
Click here to reinitialize the
selected controller card

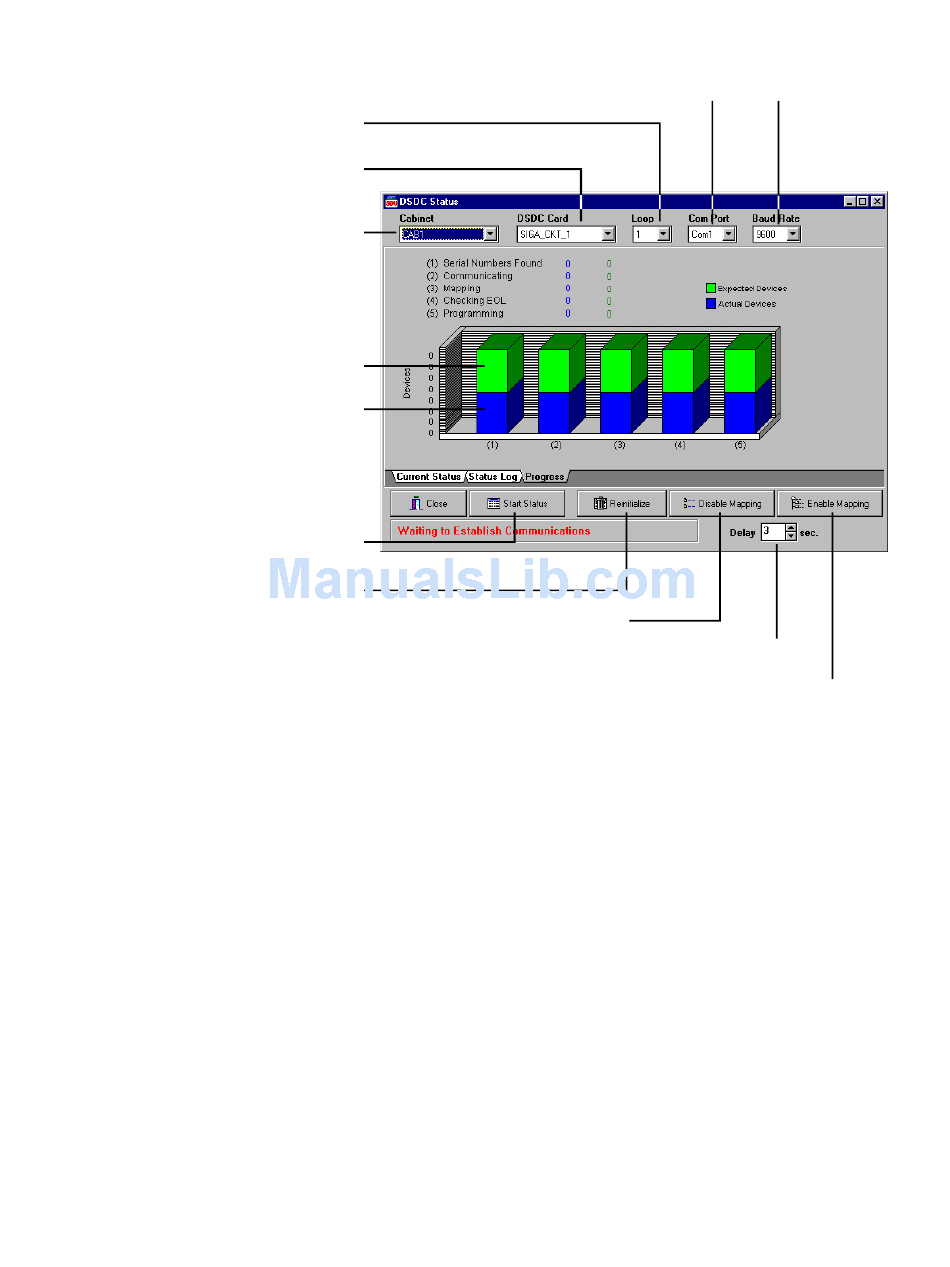

Figure 8-24: DSDC in-process progress chart
EST3 Installation and Service Manual
[LPCSTAT3.CDR]
Click here to disable mapping on
the selected controller card
Service and troubleshooting
Select COM port here Select baud rate here
Select display refresh
rate here
Click here to enable mapping on
the selected controller card
8.69
