GE Security EST3 Installation And Service Manual page 170

Installation
SIGA B+
SIGA B–
SIGA A+
SIGA A–
Class A
(required)

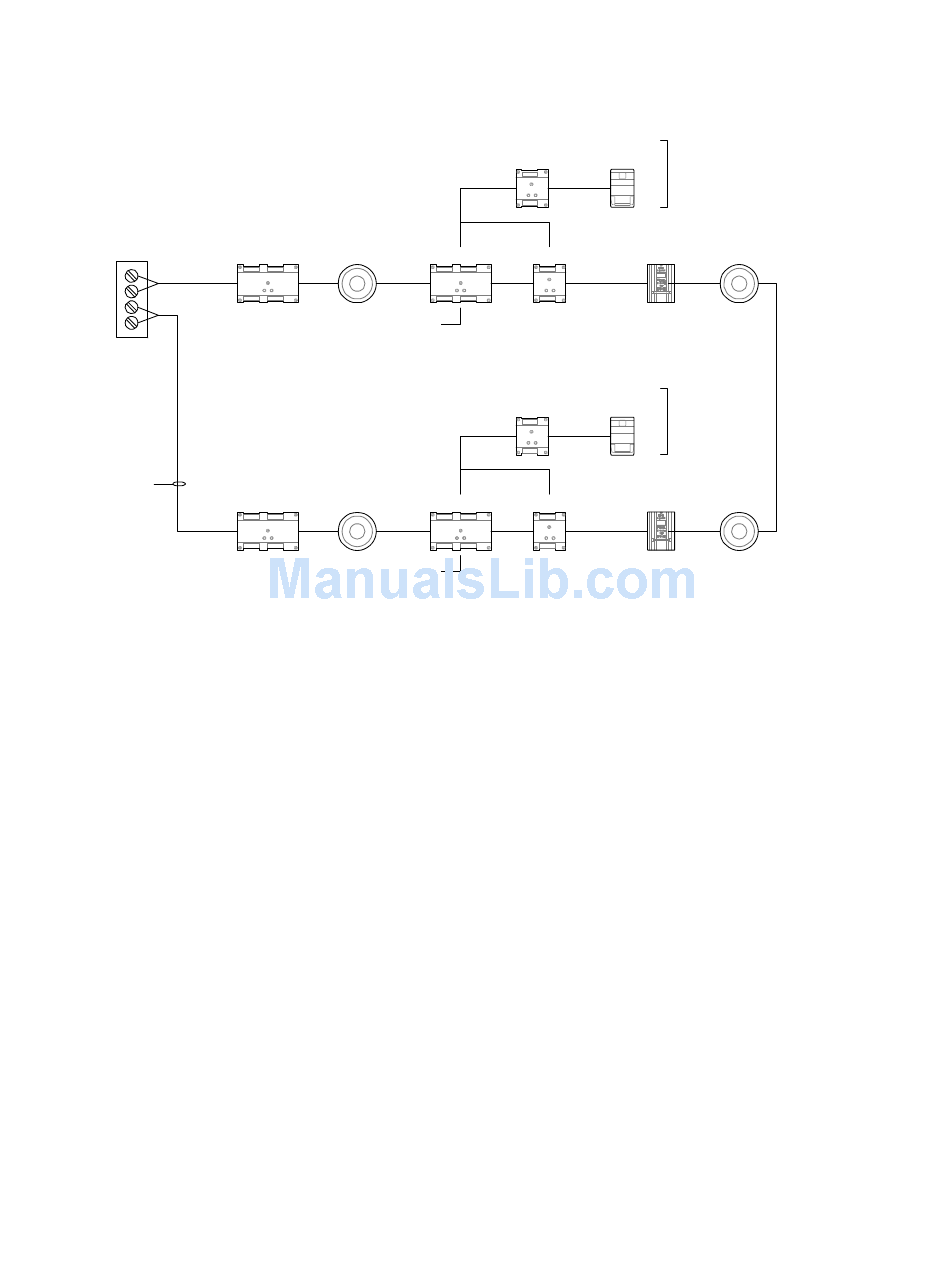

Figure 5-2: Signature wiring for notification circuit signal synchronization
5.10
Figure 5-2 shows a Signature circuit, wired as Class A, and using
isolation modules or bases for each IDC and NAC.
IM
IPHS
AUX riser
IM
IPHS
AUX riser
Figure 5-3 Shows two NACs on a Signature data circuit. Each
NAC is controlled by a SIGA-CC1S module, one for audible
appliances, and one for visible appliances.
As in Figure 5-1, this configuration allows the audible appliances
to be silenced independently of the visible appliances. This
operation is optional, and may or may not be required for your
project.
The SIGA-CC1S modules provide signal synchronization for
both NACs.
Sync Temporal
module horn/strobe
CC1 CR
Sync Temporal
module horn/strobe
CC1 CR
EST3 Installation and Service Manual
Notification
zone 1
270 IPHS
Isolater
base
Notification
zone 2
270 IPHS
Isolater
base
