Panasonic KX-TS500MX Operating Instructions

Integrated telephone system. pulse-or-tone dialing capability.
Hide thumbs


Advertisement

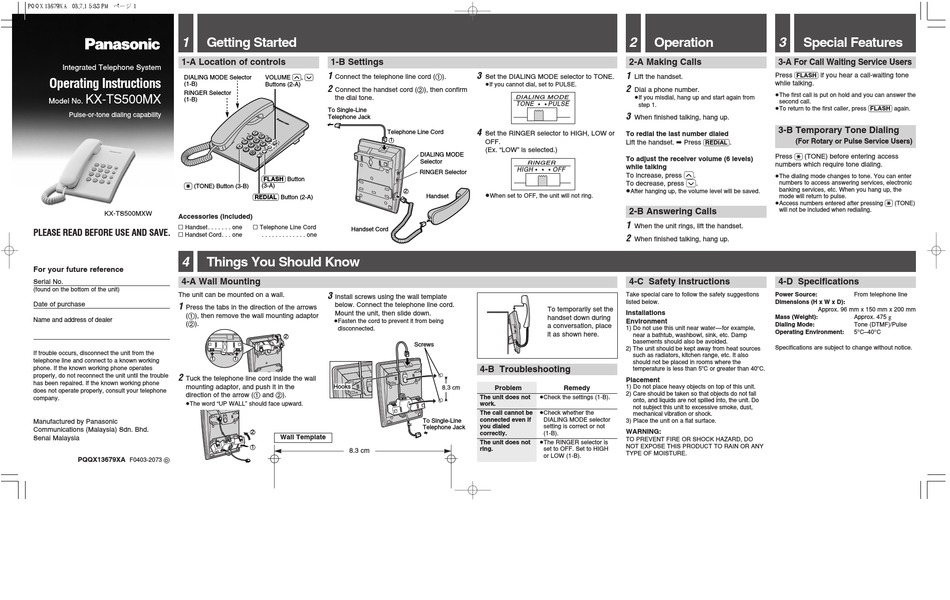

PQQX13679XA 03.7.1 5:38 PM ページ 1
1

Getting Started

1-A Location of controls
Integrated Telephone System
DIALING MODE Selector
Operating Instructions
(1-B)
RINGER Selector
KX-TS500MX
(1-B)
Model No.
Pulse-or-tone dialing capability
($) (TONE) Button (3-B)
KX-TS500MXW
Accessories (included)
∑ Handset. . . . . . . one
PLEASE READ BEFORE USE AND SAVE.
∑ Handset Cord. . . one
4
Things You Should Know
For your future reference
4-A Wall Mounting
Serial No.
(found on the bottom of the unit)
The unit can be mounted on a wall.
Date of purchase
1
Press the tabs in the direction of the arrows
(1), then remove the wall mounting adaptor
Name and address of dealer
(2).
If trouble occurs, disconnect the unit from the
telephone line and connect to a known working
phone. If the known working phone operates
properly, do not reconnect the unit until the trouble
2
Tuck the telephone line cord inside the wall
has been repaired. If the known working phone
mounting adaptor, and push it in the
does not operate properly, consult your telephone
direction of the arrow (1 and 2).
company.
≥The word "UP WALL" should face upward.
Manufactured by Panasonic
Communications (Malaysia) Sdn. Bhd.
Senai Malaysia
PQQX13679XA
F0403-2073 D
1-B Settings
1
VOLUME (^), (_)
Connect the telephone line cord (1).
Buttons (2-A)
2
Connect the handset cord (2), then confirm
the dial tone.
To Single-Line
Telephone Jack
Telephone Line Cord
1
(FLASH) Button
(3-A)
(REDIAL) Button (2-A)
∑ Telephone Line Cord
Handset Cord
. . . . . . . . . . . . . one
3
Install screws using the wall template
below. Connect the telephone line cord.
Mount the unit, then slide down.
≥Fasten the cord to prevent it from being
disconnected.
2
1
1
Hooks
2
Wall Template
1
8.3 cm
3
Set the DIALING MODE selector to TONE.
≥If you cannot dial, set to PULSE.
DIALING MODE
TONE
PULSE
4
Set the RINGER selector to HIGH, LOW or
OFF.
(Ex. "LOW" is selected.)
DIALING MODE
Selector
RINGER
HIGH
OFF
RINGER Selector
2
When set to OFF, the unit will not ring.
Handset
To temporarily set the
handset down during
a conversation, place
it as shown here.
Screws
4-B Troubleshooting
8.3 cm
Problem
Remedy
The unit does not
≥Check the settings (1-B).
work.
The call cannot be
≥Check whether the
connected even if
DIALING MODE selector
To Single-Line
you dialed
setting is correct or not
Telephone Jack
correctly.
(1-B).
The unit does not
≥The RINGER selector is
ring.
set to OFF. Set to HIGH
or LOW (1-B).
2
Operation
3

Special Features

2-A Making Calls
3-A For Call Waiting Service Users
(FLASH)
1
Press
Lift the handset.
while talking.
2
Dial a phone number.
≥The first call is put on hold and you can answer the
≥If you misdial, hang up and start again from
second call.
step 1.
≥To return to the first caller, press (FLASH) again.
3
When finished talking, hang up.
3-B Temporary Tone Dialing
To redial the last number dialed
Lift the handset. ➡ Press
(For Rotary or Pulse Service Users)
(REDIAL)
.
Press
($)
(TONE) before entering access
To adjust the receiver volume (6 levels)
numbers which require tone dialing.
while talking
To increase, press (^).
≥The dialing mode changes to tone. You can enter
To decrease, press (_).
numbers to access answering services, electronic
banking services, etc. When you hang up, the
After hanging up, the volume level will be saved.
mode will return to pulse.
≥Access numbers entered after pressing ($) (TONE)
2-B Answering Calls
will not be included when redialing.
1
When the unit rings, lift the handset.
2
When finished talking, hang up.
4-C Safety Instructions
4-D Specifications
Take special care to follow the safety suggestions
Power Source:
listed below.
Dimensions (H x W x D):
Installations
Mass (Weight):
Environment
Dialing Mode:
1) Do not use this unit near water—for example,
Operating Environment:
near a bathtub, washbowl, sink, etc. Damp
basements should also be avoided.
Specifications are subject to change without notice.
2) The unit should be kept away from heat sources
such as radiators, kitchen range, etc. It also
should not be placed in rooms where the
temperature is less than 5oC or greater than 40oC.
Placement
1) Do not place heavy objects on top of this unit.
2) Care should be taken so that objects do not fall
onto, and liquids are not spilled into, the unit. Do
not subject this unit to excessive smoke, dust,
mechanical vibration or shock.
3) Place the unit on a flat surface.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR ANY
TYPE OF MOISTURE.
if you hear a call-waiting tone
From telephone line
Approx. 96 mm x 150 mm x 200 mm
Approx. 475 g
Tone (DTMF)/Pulse
5°C–40°C
