Labgear 27884LAB User Manual page 2

8mm
10mm
centre wire
braid
5mm
1
2
3
4
5

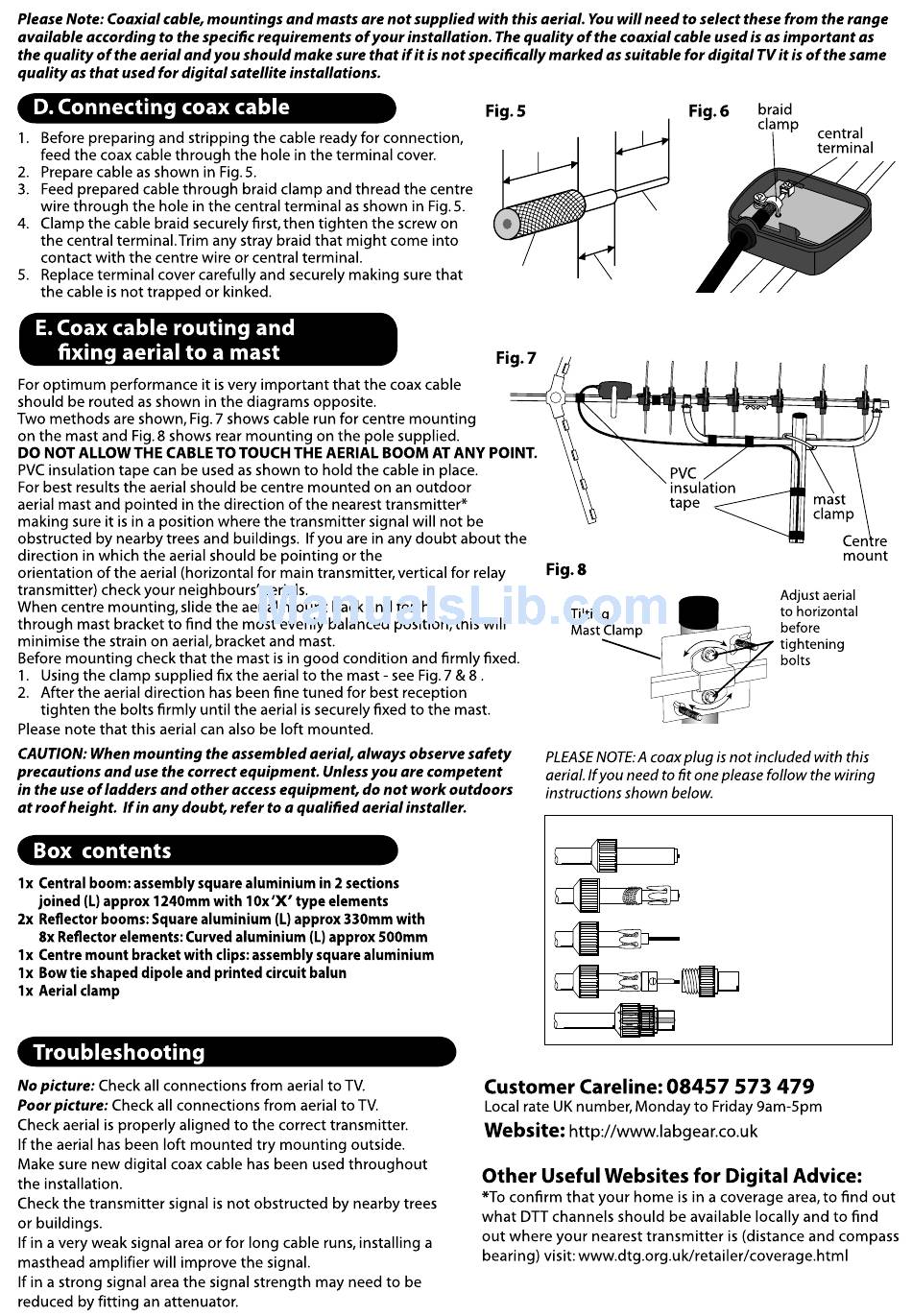

Coax plug wiring instructions
1 Unscrew coax plug housing and slide cap
over cable.
2 Strip 23mm of cable outer sheath.
Gather copper braid, wrap around outer
sheath, slide claw over braid and crimp.
3 Strip 18mm of inner insulation to leave 5mm
exposed
4 Undo screw on plug/clamp, slide clamp over
inner wire & tighten screw. Reassemble plug
5 Trim inner wire flush with plug.
