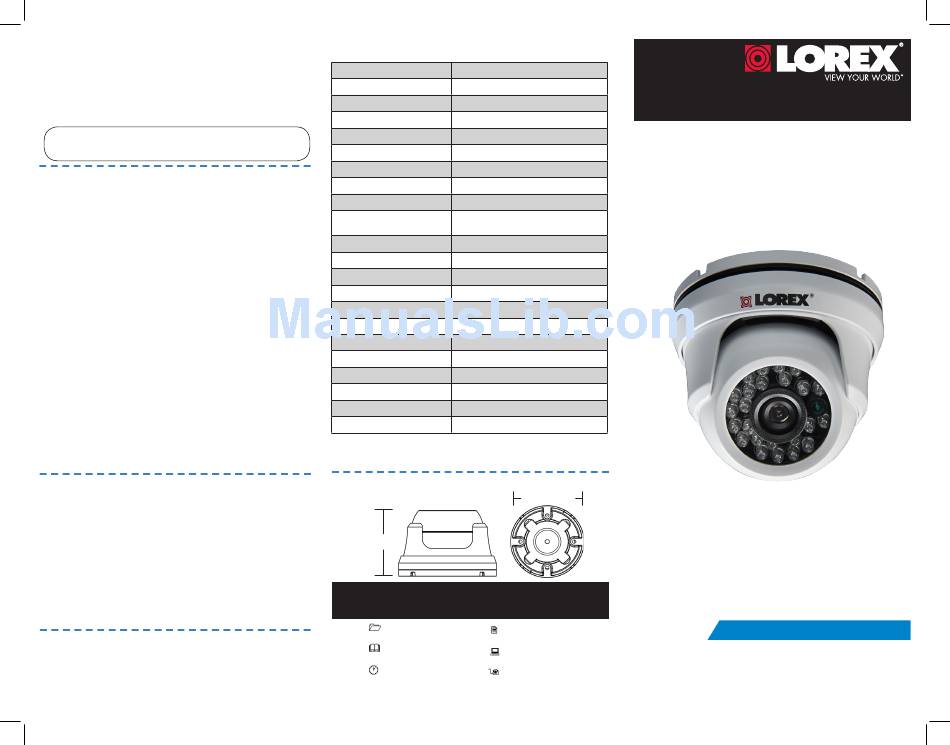

Lorex LDC7722 SERIES Quick Start Manual

Contents
• Weatherproof IR dome camera*
• Mounting screws (x4) / drywall anchors (x4) / allen key (x1)*
• 60ft BNC / power extension cable*
• 12V DC power adapter**
*Model LDC7722PK4 is a 4-pack that includes four of the listed items.
** A "4-in-1" Power Adapter that provides power to four cameras or individual power adapters
may be provided, depending on product configuration.
WARNING - A REGULATED UL / CSA APPROVED 12V DC power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Features
• 1/3" Sony Exmor megapixel image sensor (900TVL resolution /
960H)*
• Lightweight yet extremely durable Polycarbonate housing
• Integrated automatic Infrared Cut Filter (ICR) ensures accurate color
representation in all lighting conditions
• Day/Night mode: Picture automatically switches to B&W delivering
better clarity in low light conditions
• BrightNight viewing with enhanced low light image sensor
• Close-up recognition at night with auto light compensation prevents
wash-out effect
• Night vision range up to 130ft (40m) / 90ft (28m) **
• Split glass design minimizes IR reflection
• Anti-glare feature ensures clear images under strong lighting conditions
• 3.6mm wide-angle lens captures a wide field of view (92º diagonal)
• ClearNight imaging technology ensures clear night vision and
improves recording efficiency up to 30%
• 3-Axis design for wall / ceiling mounting
• Ideal for outdoor & indoor applications (IP66 Rated)***
• Cold climate resistance (-4ºF / -20ºC minimum operating temperature)
Disclaimers:
* When connected to a 960H capable DVR.
** Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor
night time ambient lighting. Actual range and image clarity depends on installation location, viewing
area, and light reflection/absorption level of object.
*** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity, and voltage levels
noted in 'Camera Specifications'.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense
light.
• Use only the supplied regulated power supply. Use of a non-regulated, non-
conforming power supply can damage this product and voids the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners.
• The supplied extension cable is rated for surface mounting only.
• Cables for in-wall / floor-to-floor installations are sold separately.

Installation Tips

• Point the camera where there is the least amount of obstructions (i.e. tree
branches).
• Install the camera in a location that is difficult for vandals to reach.
• Secure cabling so that it is not exposed or easily cut.
• Camera rated for outdoor use. Installation in a sheltered location
recommended.

Camera Specifications

Image Sensor 1/3" Sony Exmor™ Megapixel CMOS
Video Format NTSC
Effective Pixels H: 1305 V: 1049
Resolution 900 TV Lines
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 48dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/100,000 sec.
Min. Illumination 0.01 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 3.6mm F2.0 / Fixed
FOV (Diagonal) 92°
Termination BNC Type
IR LED Qty. / Type 24 IR LEDs / 850nm
Night Vision Range* 130ft (40m) / 90ft (28m)
Power Requirement 12V DC ±10%
Power Consumption Max. 320mA (w/IR)
Operating Temp. Range –4° ~ 122°F / –20° ~ 50°C
Operating Humidity Range < 80% RH
Indoor / Outdoor** Both (IP66)
Weight (including stand) 0.7lbs / 0.3kg
* Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and total darkness. Actual range and image clarity depends on installation location, viewing
area, and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
70mm / 2.8"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information Specification Sheets
User Manuals
Software Upgrades
Quick Start Guides
Firmware Upgrades
Copyright © 2014 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE

Quick Start Guide

English Version 2.0
93mm / 3.7"
900 TVL OUTDOOR
IR DOME CAMERA
LDC7722 SERIES
