Lorex VANTAGE LDC6081 Quick Start Manual

Contents

• Weatherproof IR dome camera
• Mounting screws x 4
• Rubber weatherproofing plugs x 2
• 60ft. BNC / power extension cable
• BNC female / RCA male adapter
• Power adapter
- A REGULATED UL / CSA APPROVED power supply is
WARNING
REQUIRED for use with this camera. Use of a non-regulated, non-
conforming power supply can damage this product and voids the
warranty.

Features

• Advanced Sony Super HAD™ II image sensor
• Video image processor produces sharp and clear video at
600 TV lines of resolution
• 4–9mm manual zoom lens for flexible viewing angle
(39–93º diagonal)
• ClearNight imaging technology ensures clear night vision and
improves recording efficiency up to 30%
• Night vision up to 75ft. (23m) away in total darkness*
• Split glass design minimizes IR reflection
• IP66 rated aluminum housing for indoor / outdoor
installations**

Disclaimers:

* Infrared illumination range under ideal conditions. Actual range and clarity may vary depending on
scene / object reflection and camera application.
** Not intended for submersion in water. Installation in a sheltered location recommended.

Warning/Caution

• Read this guide carefully and keep it for future reference
• Follow all instructions for safe use of the product
• Use the camera within given temperature, humidity and voltage
levels noted in Camera Specifications
• Do not disassemble the camera
• Do not point the camera directly towards the sun or a source of
intense light
• Use only the supplied regulated power supply. Use of a non-
regulated, non-conforming power supply can damage this
product and voids the warranty
• The supplied extension cable is rated for surface mounting only
• Cables for in-wall / floor-to-floor installations are sold
separately

Installation Tips

• Point the camera where there is the least amount of obstructions
(i.e. tree branches)
• Install the camera in a location that is difficult for vandals to
reach
• Secure cabling so that it is not exposed or easily cut
• Camera rated for outdoor use. Installation in a sheltered
location recommended

Camera Specifications

Image Sensor 1/3" Sony Super HAD™ II
Video Format NTSC
Effective Pixels H: 768 V: 494
Resolution 600 TV Lines
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 50dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/100,000 sec.
Min. Illumination 0.2 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 4–9mm F1.4 / Varifocal
FOV (Diagonal) 39–93°
Termination BNC Type
IR LED Qty. / Type 28 pieces / 850nm
Night Vision Range* 75ft / 23m
Power Requirement 12V DC ±10%
Power Consumption Max. 400mA (w / IR)
Operating Temp. Range 14° ~ 122°F / –10° ~ 50°C
Operating Humidity Range < 90% RH
Environmental Rating** IP66
Weight (including stand) 1.6lbs. / 0.7kg
* IR Illumination Range under ideal conditions. Objects at or beyond this range may be partially or
completely obscured, depending on the camera application.
** Not intended for submersion in water. Installation in a sheltered location recommended.

Dimensions

102mm / 4.1"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
Specification Sheets
User Manuals Software Upgrades
Quick Start Guides Firmware Upgrades
Copyright © 2011 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product design,
specifications and prices, without notice and without incurring any obligation. E&OE

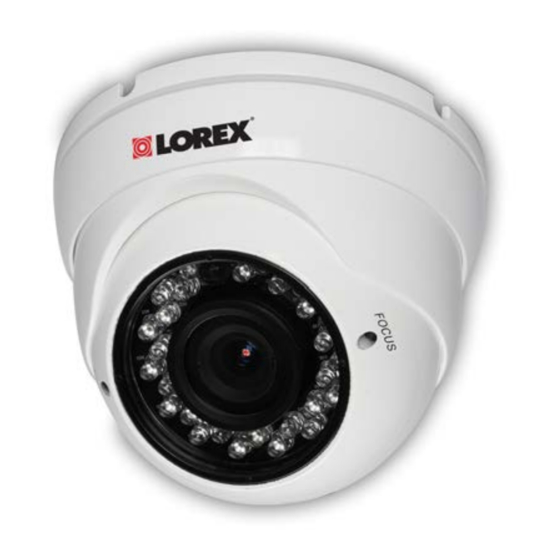

VARIFOCAL NIGHT VISION DOME CAMERA
QUICK START GUIDE
120mm / 4.8"
SUPER RESOLUTION WEATHERPROOF
English Version 2.0
LDC6081
