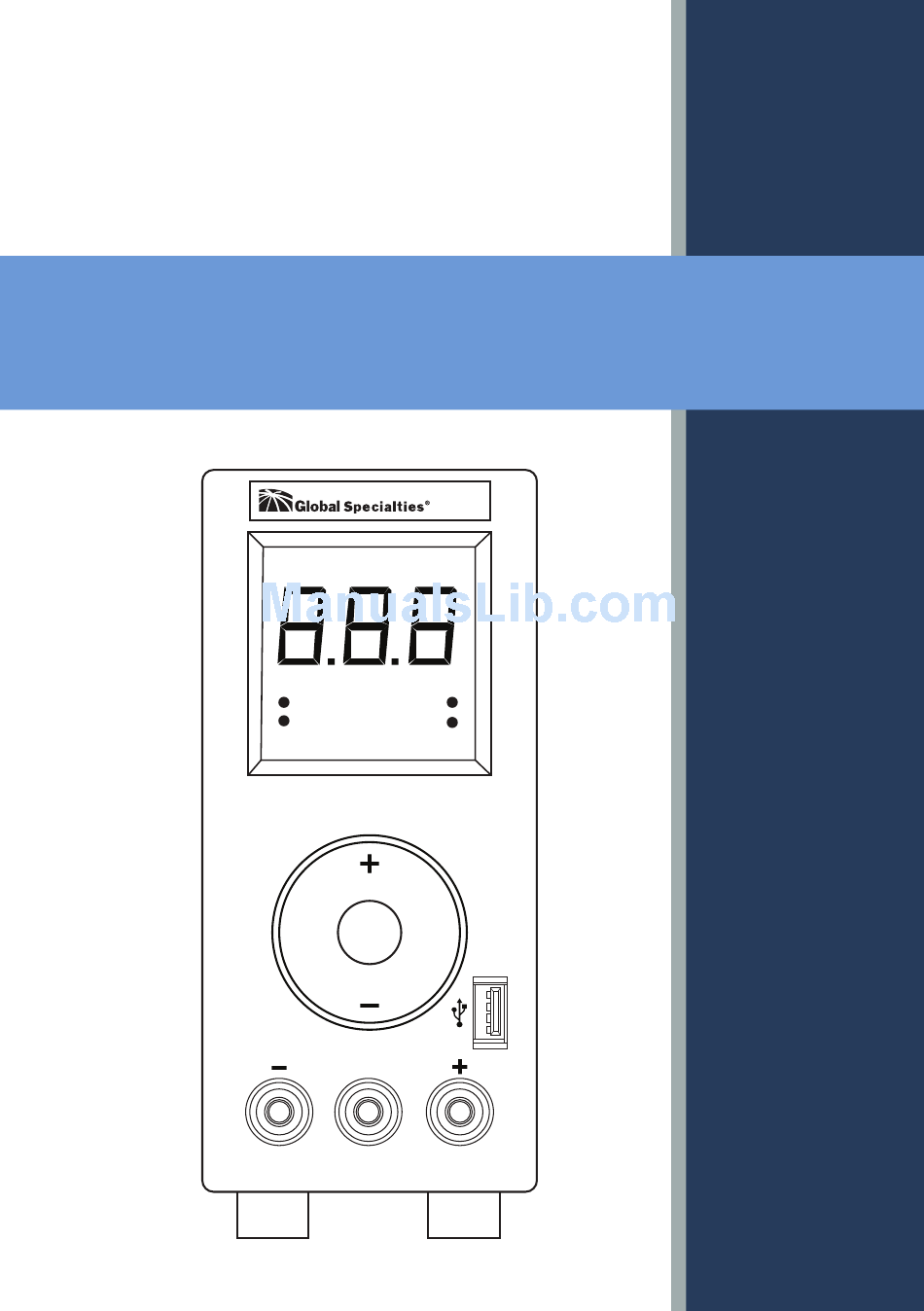

- Page 1 1325 80W (16V/5A) Power Supply User with USB Output Manual 1325 Model: 1325- 110 V Power Supply INPUT: 110 VAC, 60 Hz ~, 1.6 A OUTPUT: 1-16 VDC, 0.5A USB: 5 VDC, 1.2 A Volt. Amp. C.V. C.C. OUTPUT ON/OFF CHARGER OUTPUT 5 A MAX.
-
Page 2: Safety Summary
Safety Summary The following safety precautions apply to both operating and maintenance personnel and must be observed during all phases of operation, service, and repair of this instrument. Before applying power, follow the installation instructions and become familiar with the operating instructions for this instrument. -
Page 3: Warning And Caution
DO NOT SUBSTITUTE PARTS OR MODIFY THE INSTRUMENT Do not install substitute parts or perform any unauthorized modifications to this instrument. Return the instrument to Global Specialties (Cal Test Electronics) for service and repair to ensure that safety features are maintained. WARNINGS AND CAUTIONS... -
Page 4: Compliance Statements
the specified voltage and current ratings. CAUTION This product uses components which can be damaged by electro-static discharge (ESD). To avoid damage, be sure to follow proper procedures for handling, storing and transporting parts and sub-assemblies which contain ESD- sensitive components. Compliance Statements Disposal of Old Electrical &... - Page 5 80 W. By using a digital + / - keypad operation control, you can easily set the output voltage and current levels. The 1325’s small size and quiet operation make it ideal for laboratory, work shop, or educational applications where bench space is limited.
-
Page 6: Controls And Indicators

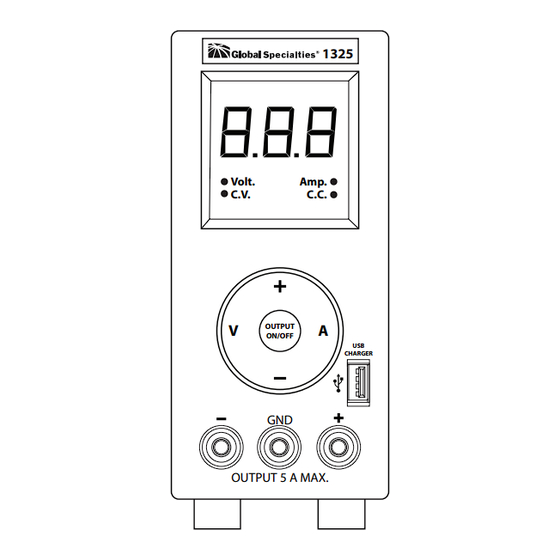

1.2 Controls & Indicators 1325 Model: 1325- 110 V Power Supply INPUT: 110 VAC, 60 Hz ~, 1.6 A OUTPUT: 1-16 VDC, 0.5A USB: 5 VDC, 1.2 A Volt. Amp. C.V. C.C. OUTPUT ON/OFF CHARGER OUTPUT 5 A MAX. Figure 1 Front and Rear Panel LCD Display Panel. -
Page 7: Operating The Power Supply
2 Operating the Power Supply 2.1 Connection and Operation Procedure Plug the unit into 110 VAC grounded outlet. Switch on the power supply using the toggle switch on the back and the LED display will come on showing “OFF” indicating that output is off. The “Volt.” indicator will light showing that you are displaying voltage. -
Page 8: Ground Connection
When the load current drops below the preset current limiting value, the supply returns to constant voltage (CV) mode. 2.3 Tracking Output Over Voltage Protection (OVP) This is to protect the connected load in the event that the output voltage control circuit malfunctions. In the case where the output voltage reaches 15% higher than the set voltage, Over Voltage Protection will engage. -
Page 9: Specifications
3 Specifications All specifications apply to the unit after a temperature stabilization time of 15 minutes over an ambient temperature range of 25 °C ± 5 °C. 1325 Power Supply Electrical Specificaitons Output Voltage 16 VDC – Output Current 0-5 A... -
Page 10: Environmental Conditions
Output Voltage 5 V (±5%) Output Current 1.2 A Max Environmental Conditions max RH of 80% at 31°C decreasing Operating Temp/Humidity linearly to 50% at 40°C Altitude up to 2,000 m Polution Degree Polution Degree 2 Mechanical Characteristics Weight 3.0 lbs (1.4 kg) 2.8 x 6.0 x 7.9 in Dimensions (70 x 150 x 200 mm) -
Page 11: Service And Warranty Information
If you have a need for any calibration or repair services, please visit us on the web at: globalspecialties.com. See the “Service” tab. Or contact us via the “Contact” tab. You may also contact us at: Global Specialties® (A Cal Test Electronics Company) 22820 Savi Ranch Parkway... - Page 12 450864-001 Rev. B...
