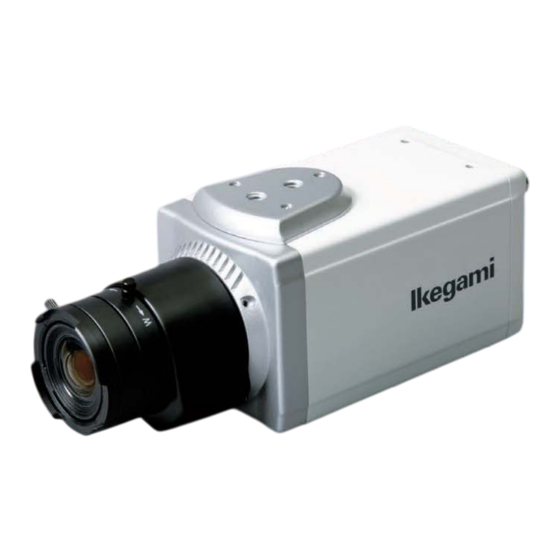

Ikegami ICD-520 Specification

High Resolution Wide Dynamic Range Camera

High Resolution High Sensitivity
700TVL 0.0007 lx / F1.2

FEATURES

High Resolution Wide Dynamic Range camera designed by broadcast industry specialists
to meet the stringent demands of today's CCTV Professional.
The newest installation in our history of elite quality cameras, Ikegami is proud to announce the ICD-520/P.
This camera now comes with higher resolution- an impressive 700TVL- plus the added benefit of Wide
Dynamic Range function. The result is higher sensitivity in lower light levels (when the camera will
automatically switch to a Monochrome output for improved low light performance).
0.0007 lx, 700TVL High Resolution Pictures
The ICD-520/P achieves a horizontal resolution of 700 TVL
w i t h 4 8 0 , 0 0 0 ( N T S C ) / 5 7 0 , 0 0 0 ( P A L ) p i x e l s , e n a b l i n g
reproduction of exceptionally clear and detailed images in
ultra-low light conditions. The ICD-520/P performs at levels
as low as 0.0007 lx minimum scene illumination performance
(in monochrome mode)!
52dB, High Picture Quality and Low Smear and Noise
The improved DSP circuit permits 52dB Signal-to-Noise ratio
and Low Smear(-105dB). By the factor, a clear image can be
captured even under strong light.
Wide Dynamic Range (WDR)
The WDR function provides clear and high quality pictures in
high contrast environments by adjusting exposure- resulting in
a corrected image with clear details results. The wide dynamic
range is 5 levels selectable.
Monitor Selection Switch
The ICD-520/P features a monitor selection switch for
LCD or CRT viewing.
High Picture Quality
52dB
Conventional Model
Conventional Model
Auto White Balance
The ICD-520/P features automatic tracking white balance
control (ATW) and automatic white balance control (AWC).
The result is better color tracking in difficult lighting conditions
(such as sodium light).
Focus EZ Function
A button located at the back of the ICD-520/P sets the
auto-iris lens aperture open, even in broad daylight. This
allows the installer to set an accurate focus with the best
depth of field. The EZ focus button displays an adjustment
bar that makes it easy to achieve perfect focus.
ICD-520/P
ICD-520/P
