Ikegami ICD-505 Specifications

High Performance DSP Color Camera
High sensitive 1/3 inch CCD with ON-Chip- Micro Lens and
high performance AGC signal processing. The camera delivers
high sensitivity with a minimum illumination 0 . 3 5 lux/ F1.2
Lower Smear level -110dB, low noise design and optimum detail
compensation by DSP provide excellent 48dB S/N ratio also crisp
and sharpness images. It is high resolution with over 480 TV lines.
Auto Tracking White Balance (ATW) is featured.Appropriate
correction can always be achieved to compensate for changes
in color temperature of the scene.
High sensitive 1/3 inch CCD with a minimum illumination of
0.07 lux/ F1.2
Thanks to inverting a left and right image, ICD-38/ 38E can settle
your reversed image problem with a prism or L-angle pinhole lens.
Automatic Electronic Shutter (AES) and a hight quality
Back Light Compensation (BLC) are featured.
Super Cube DSP Color Camera
Automatic Electronic Shutter (AES) and a high quality Back
Light Compensation (BLC) are featured.
The camera supports AC Line Lock and Crystal Internal Lock
Available Auto Gain Control (AGC) ON/OFF switch
Selectable between Video auto iris, DC auto iris and Manual
iris lenses.

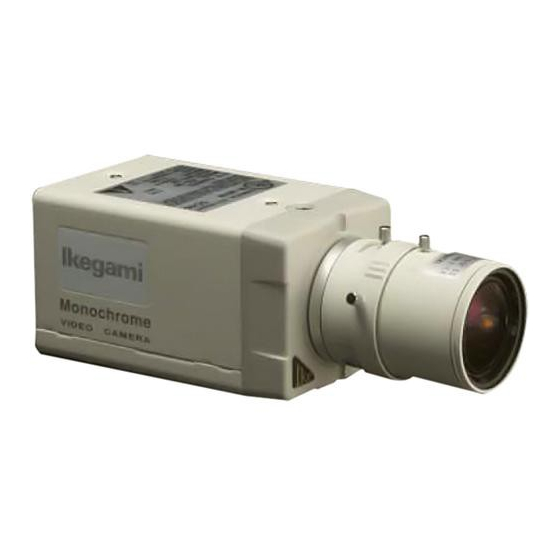

High Performance Black & White Camera
The camera supports AC Line Lock and Crystal Internal Lock
Selectable between Video auto iris, DC auto iris and Manual
iris lenses.
