SPECIFICATIONS

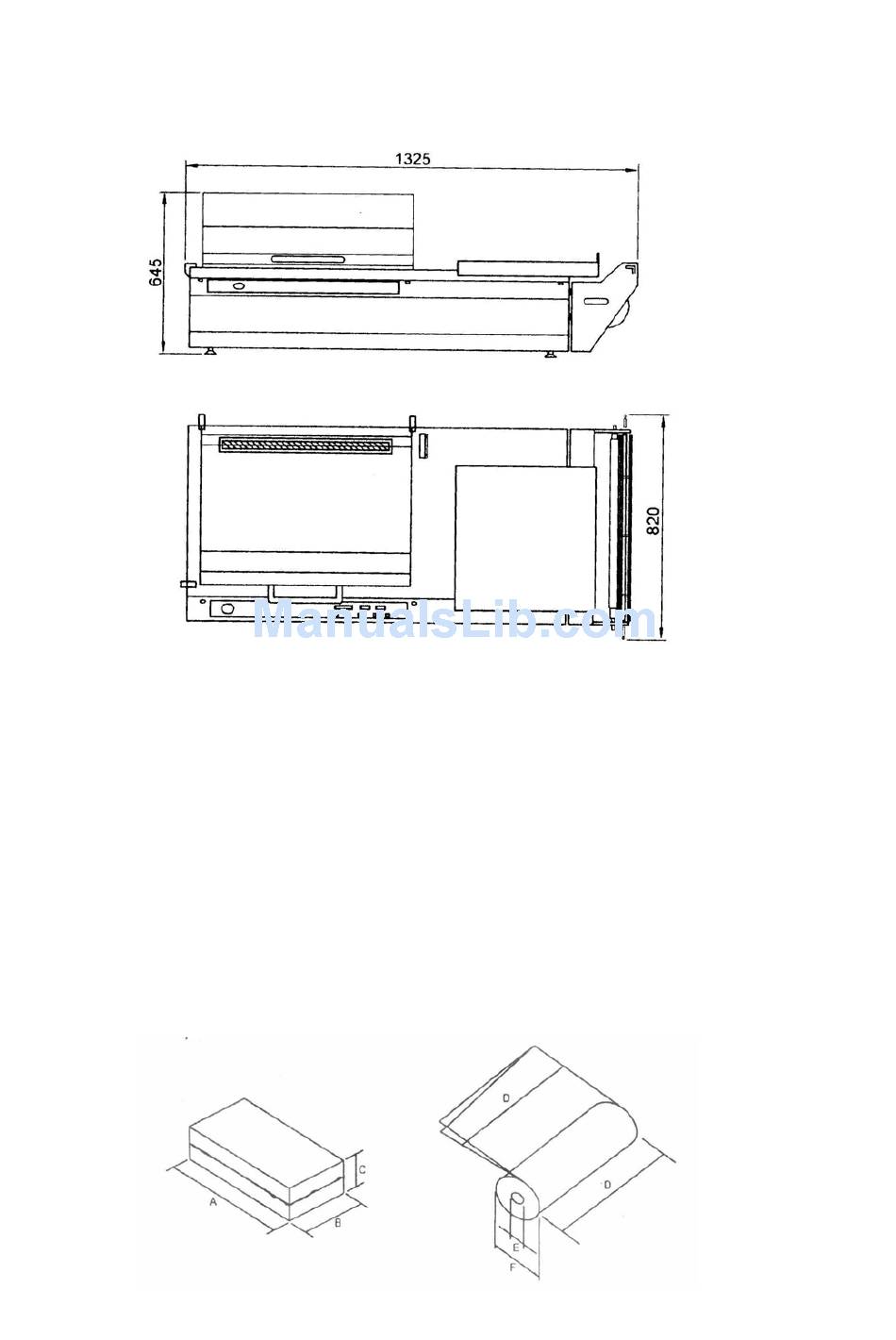

OVERALL DIMENSIONS
SPECIFICATIONS
-Weight of machine (without stand): 85kg
-Height of working table (on stand) 370mm
-The machine height of working incl. stand 910mm
-Dimensions of sealing:420×550
-Power:3.77kw
Voltage: 230v/1-phase
-packaging capacity:
min: A×B×C 50×50×1mm
max: A×B×C 520×390×250mm
NOTES:B+C must never exceed 550;it is not possible to create packages with the
maximum dimension A×B×C,
-film to be used for packaging :center-fold sealing film, thickness 60 gauge.
dimensions(D-F-E) 600×250×75mm
