Step 4: Connect the middle (large) section to the
front (small) section

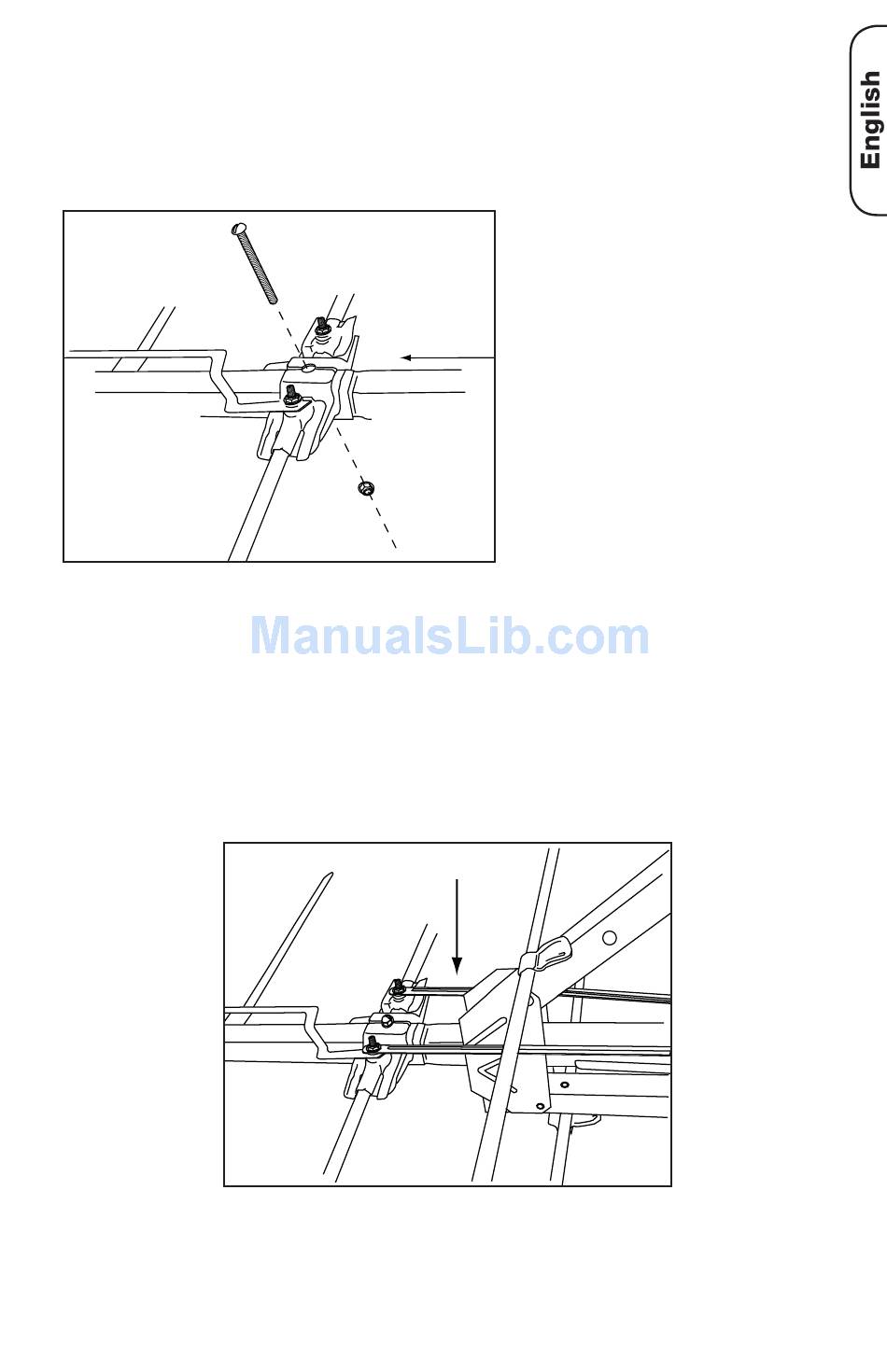

Find the middle (large) section. Locate the end of the middle section that
matches fi gure 4.
Middle
section
Fig. 4

Step 5: Connect the phasing lines

Place the phasing lines from the front section over the studs. Secure them to
the studs with #10 fl ange nuts and washers. Tighten securely.
section
Phasing Lines
Fig. 5
Remove the nut and screw in
the center. Slide the narrow
boom of the front (small)
section into the middle (large)
section. Make sure the
phasing lines are on the top
side of the small boom and the
black plastic element holders
Front
are also on this same side.
This is the top of the antenna.
(See fi gure 5.)
Tap lightly with a rubber mallet
on the end of the small boom
aligning the holes for the
screw. (See fi gure 4.)
Re-install the screw and nut;
be sure to tighten securely.
3
