Maintenance

Battery replacement

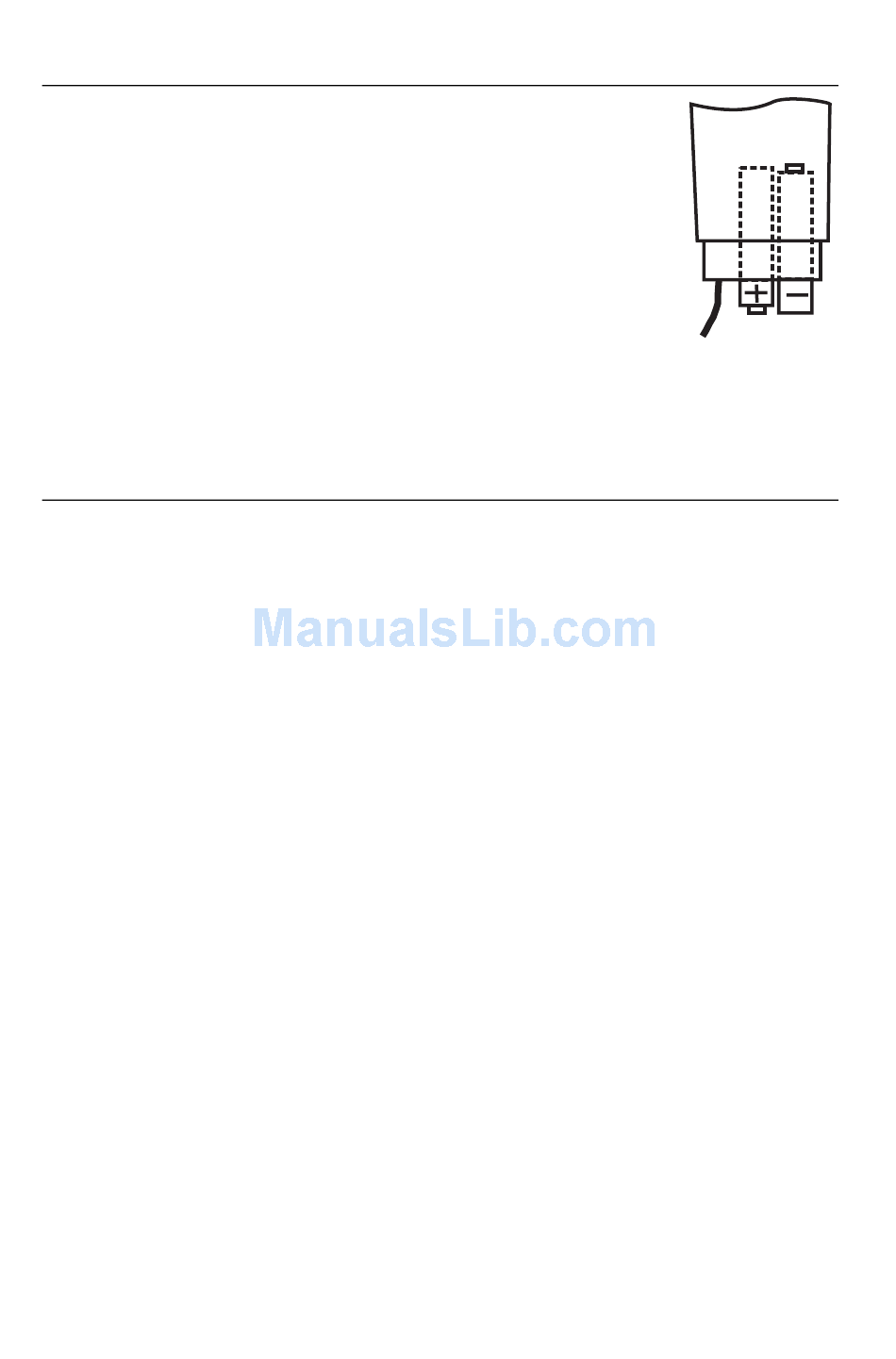

1. Disconnect the meter from any test device or circuit before
opening the tester.
2. Loosen the recessed Phillips head screw at the bottom of the
tester. Do not remove the screw.
3. Hold the meter and pull the lower portion of the meter off until
the batteries are exposed.
4. Replace the two 'AAA' batteries observing polarity and dispose
of the old batteries properly.
5. Slide the meter back together and replace the screw.

Cleaning and Storage

Before cleaning the tester, ensure that the test leads are not connected to any circuit or
device. Wipe the meter only with a damp cloth as needed. Do not apply abrasives, solvents,
or other cleaners to the surface of the meter. Store with the battery removed and avoid
extreme temperature and humidity.

Specifications

Voltage LED steps
ACV frequency range
LED enable input voltage
Accuracy
Range selection
Max measuring current
Display delay
Input Impedance
Continuity test
Low impedance test
Operation time:
Power supply
Battery life
Operating Temperature
Storage Temperature
Operating Humidity
Operating Altitude
Safety
Approvals
Dimensions
Weight
AC: 24, 48, 120, 208, 240, 277, 480, 600
DC: 6, 12, 24, 36, 48, 110, 220, 400
50/60Hz
>4.5V AC/DC
-30% to 0% of the indication
Automatic
≤1.2mA (600VAC); ≤1.0mA (400VDC)
LED indication <0.1s
1MΩ (approx)
Range 0 to 400kΩ, guaranteed on < 50kΩ; <10µA test
current;
12-250VAC/DC; impedance <6kΩ;
30 seconds on/10 minute off duty cycle
2 x "AAA" 1.5V alkaline batteries, 50mA max
Approx. 8 hours continuous use typical
o
14 to 131 F (-10 to 55
o
-22 to 140 F (-30 to 60
10 to 85% RH (non-condensing)
7000 ft. (2000 meters) maximum
This meter is intended for origin of installation use and
protected, against the users, by double insulation per
EN61243-3 and IEC61243-3 to Category IV 600V and
Category III 1000V; Pollution Degree 2.
CE, IP64
9.4 x 3 x 1.6" (240 x 78 x 40mm)
9.2oz (260g)
5
o
C)
o
C)
VT10 V2.0 08/06
