  • Page 1: Operating Instructions

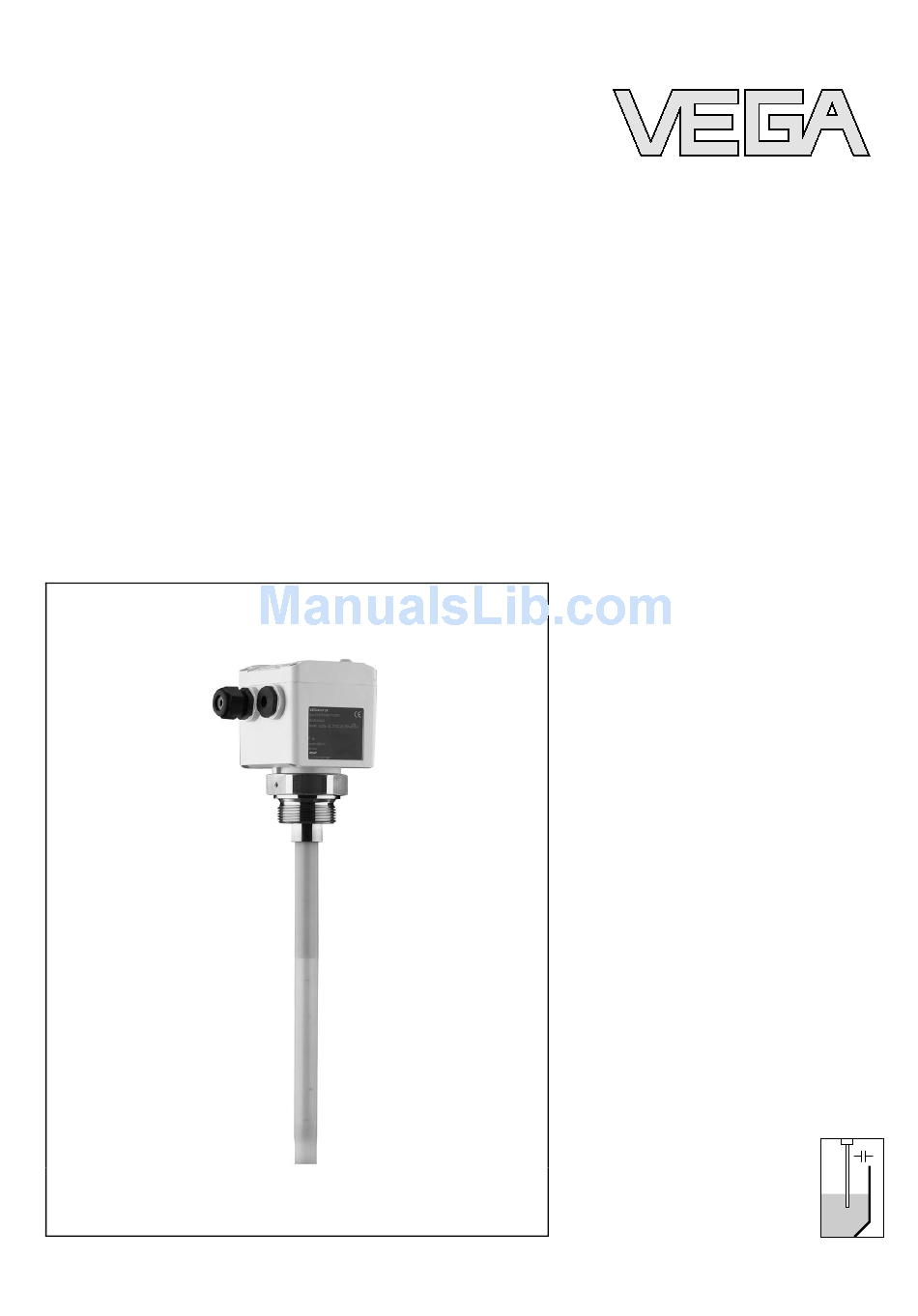

    Operating Instructions VEGACAP 27 - double relay (DPDT) Capacitive...

  • Page 2: Table Of Contents

    Dismounting steps ..... . Disposal ......VEGACAP 27 - - double relay (DPDT)
  • Page 3 "Product description". Instructions manuals for accessories and replacement parts Tip: To ensure reliable setup and operation of your VEGACAP 27, we offer accessories and replacement parts. The associated documents are: Operating instructions manual "Oscillator CAP E31R" VEGACAP 27 - - double relay (DPDT)

  • Page 4: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGACAP 27 - - double relay (DPDT)

  • Page 5: For Your Safety

    During work on and with the device the required personal protection equipment must always be worn. 2.2 Appropriate use VEGACAP 27 is a sensor for level detection. You can find detailed information on the application range in chapter "Product description".

  • Page 6: Safety Approval Markings And Safety Tips

    2.5 Safety approval markings and safety tips The safety approval markings and safety tips on the device must be observed. 2.6 CE conformity VEGACAP 27 is in CE conformity with EMC (89/336/EWG) and LVD (73/23/EWG). Conformity has been judged according to the following standards:...

  • Page 7: Product Description

    - if necessary, further documents VEGACAP 27 consists of the following components: Components Housing cover Housing with electronics Process fitting with electrode Fig. 1: VEGACAP 27 - with plastic housing Housing cover Housing with electronics Process fitting active screen segment active probe...

  • Page 8: Principle Of Operation

    "serial number search". In addition to the type label outside on the instrument, the serial number is also available inside the instrument. 3.2 Principle of operation VEGACAP 27 is a level switch with fully insulated, capacitive Area of application electrode with screen segment and active tip for level detection.

  • Page 9: Operation

    The capacitance change is converted by the oscillator into a switching command. VEGACAP 27 is a compact instrument, i.e. it can be operated Supply without external evaluation system. The integrated electronics evaluates the level signal and outputs a switching signal. With this switching signal, a connected device can be operated directly (e.g.

  • Page 10: Storage And Transport

    Not exposed to corrosive media Protected against solar radiation Avoiding mechanical shock and vibration Storage and transport temperature see "Supplement - Storage and transport tem- perature Technical data - Ambient conditions" Relative humidity 20 … 85 % VEGACAP 27 - - double relay (DPDT)

  • Page 11: Mounting

    (e.g. from cleaning processes) or cooled or heated vessels. Fig. 3: Measures against moisture penetration Do not hold VEGACAP 27 on the probe. Especially with heavy Transport flange versions or long rod versions, the sensor can be damaged simply by the weight of the instrument.

  • Page 12: Mounting Instructions

    Agitators and fluidization to be subjected to strong lateral forces. For this reason, do not use an overly long probe for VEGACAP 27, but check if you can mount a short level switch on the side of the vessel in horizontal position.
  • Page 13 Mounting Fig. 4: Inflowing medium VEGACAP 27 - - double relay (DPDT)

  • Page 14: Connecting To Power Supply

    Take note of the general installation regulations. As a rule, connect VEGACAP 27 to vessel ground (PA), or in case of plastic vessels, to the next ground potential. On the side of the housing there is a ground terminal between the cable entries.
  • Page 15 Connecting to power supply – Fig. 5: Wiring plan Relay output Relay output Voltage supply VEGACAP 27 - - double relay (DPDT)

  • Page 16: Set Up

    Note: As a rule, always set the mode with the mode switch (5) before starting setup VEGACAP 27. The switching output will change if you set the mode switch (5) afterwards. This could possibly trigger other connected instruments or devices.
  • Page 17 When placing the housing cover, make sure that the inspection glass is above the signal lamp (LED) of the oscillator. To adjust VEGACAP 27, loosen first of all the four screws on the upper side of the instrument with a screwdriver and remove the housing cover.
  • Page 18 Tab. 1: Number of additional turns for the potentiometer (6) Note: With the measurement of products with very low dielectric values, the number of turns can be reduced up to 1 according to the chart. VEGACAP 27 - - double relay (DPDT)

  • Page 19: Functional Chart

    Relay deener- gized Mode B Dry run protection (6) (7) Relay energized Mode B Dry run protection (6) (7) Relay deener- gized Failure of the supply voltage (mode A/B) (6) (7) Relay deener- gized VEGACAP 27 - - double relay (DPDT)
  • Page 20 Set up Level Switching sta- Control lamp Failure (6) (7) Relay deener- gized VEGACAP 27 - - double relay (DPDT)

  • Page 21: Maintenance And Fault Rectification

    Maintenance and fault rectification 7 Maintenance and fault rectification 7.1 Maintenance When used as directed in normal operation, VEGACAP 27 is completely maintenance free. 7.2 Remove interferences The operator of the system is responsible for taken suitable Reaction in case of failures measures to remove interferences.
  • Page 22 1 MW Fig. 21: Check the resistance in the probe Middle pin Variable capacitor (phase) Capacitor Measure the resistance values between the following contacts with an ohmmeter (range MOhm). VEGACAP 27 - - double relay (DPDT)
  • Page 23 In case of higher values, there is a contacting error in the adapter plate or the resistor is defective. No fault if you cannot find a fault in the probe, then exchange the oscillator by a similar replacement electronics (if available). VEGACAP 27 - - double relay (DPDT)

  • Page 24: Exchange Of The Electronics Module

    14 Turn the cable gland right back and check the tightness. The seal ring must completely encircle the cable. 15 Carry out a fresh adjustment. See chapter "Set up, new adjustment". 16 Retighten the housing cover VEGACAP 27 - - double relay (DPDT)

  • Page 25: Instrument Repair

    Please ask the agency serving you for the address of your return shipment. You can find the respective agency on our website www.vega.com under: "Company - VEGA world- wide" VEGACAP 27 - - double relay (DPDT)

  • Page 26: Dismounting

    Correct disposal avoids negative effects to persons and environment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you cannot dispose of the instrument properly, please contact us about disposal methods or return. VEGACAP 27 - - double relay (DPDT)

  • Page 27: Supplement

    100 Nm (74 lbf ft) Max. torque (process fitting - thread) 430 kHz Frequency Output variable Relay output (DPDT), 2 floating spdts Output Turn-on voltage 10 mV - min. 253 V AC, 253 V DC - max. VEGACAP 27 - - double relay (DPDT)
  • Page 28 Storage and transport temperature -40 … +80 °C (-40 … +176 °F) Process conditions -1 … 63 bar/-100 … 6300 kPa (- Process pressure -14.5 … 914 psig) See following diagram Process temperature See following diagram VEGACAP 27 - - double relay (DPDT)
  • Page 29 25 bar (363psi) 100°C 200°C 0°C (32°F) (212°F) (392°F) -10°C (-14°F) Fig. 22: Process pressure - Process temperature - VEGACAP 27 with process fitting of 316L Process pressure Process temperature Temperature range with temperature adapter 63 bar (914psi) 25 bar (363psi) -50°C...
  • Page 30 U >60 V DC, the ambient temperature can be max. 50 °C/122 °F) 1 … 9 VA (AC), approx. 1.5 W (DC) Power consumption Electrical protective measures IP 66/IP 67 Protection Overvoltage category Protection class Approvals Overfill protection according to WHG VEGACAP 27 - - double relay (DPDT)

  • Page 31: Dimensions

    SW 60 ") G1½ / 1½”NPT ø 20 mm ") Fig. 24: VEGACAP 27, threaded version G1½ A = Sensor length, see chapter "Technical data" LA = active tip, see chapter "Technical data" VEGACAP 27 - - double relay (DPDT)
  • Page 32 Supplement SW 60 SW 60 Fig. 25: Temperature adapter (optional) 316L, 316Ti VEGACAP 27 - - double relay (DPDT)

  • Page 33: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellectuelle. Pour plus d'informations, on pourra se référer au site http://www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad industrial. Para mayor información revise la pagina web http://www.vega.com.
  • Page 34 Supplement VEGACAP 27 - - double relay (DPDT)
  • Page 35 Supplement VEGACAP 27 - - double relay (DPDT)
  • Page 36 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2007 33758-EN-070809 Subject to change without prior notice...
