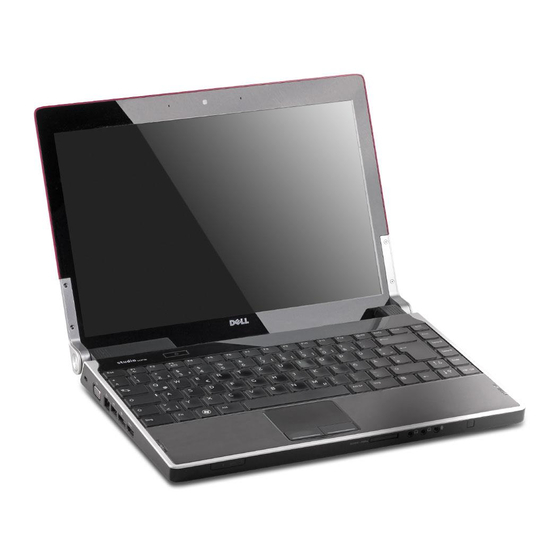

Dell™ Studio XPS™ 1340 Service Manual
Before You Begin
Base Cover
Coin-Cell Battery
Hard Drive
Memory
Rear Caps
Processor Heat Sink
Processor
Wireless Mini-Card
Palm Rest
Notes, Notices, and Cautions
NOTE:
A NOTE indicates important information that helps you make better use of your computer.
NOTICE:
A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION:
A CAUTION indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, XPS, and the DELL logo are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under
license. Microsoft, Windows, Windows Vista, a n d Windows Vista start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or
other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP17S
December 2008 Rev. A00
Keyboard
Display Assembly
Optical Drive
Status Light Board
System Board
eSATA Connector
AC Adapter Connector
Battery Latch Assembly
Flashing the BIOS
