INSTALLATION GUIDE

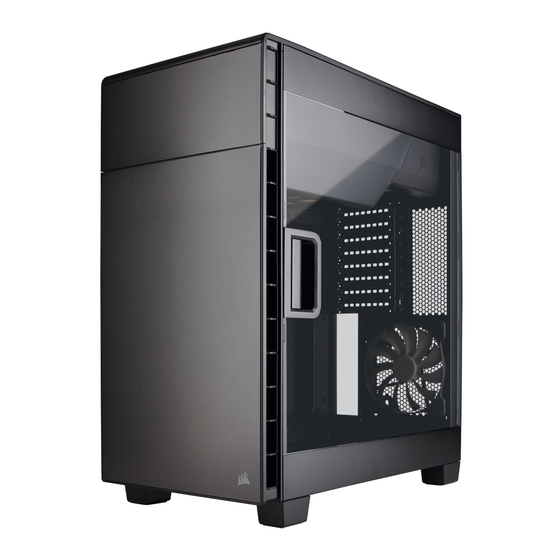

CARBIDE SERIES
®

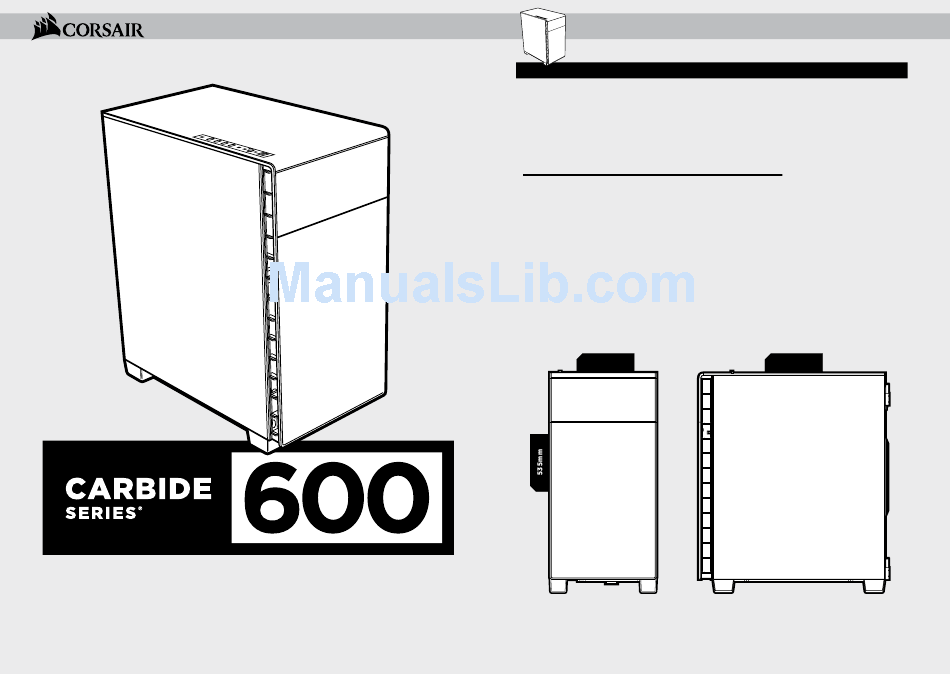

Case Specifications
Length: ...................................................................................................... 454mm
Width: ....................................................................................................... 260mm
Height: ...................................................................................................... 535mm
Weight: .......................................................................................................9.85kg
Maximum GPU length: ....................................................................... 368mm
Maximum CPU cooler height: ......................................................... 200mm
Maximum PSU length: ........................................................................ 210mm
Radiator compatibility:
Front: .............................................................2 x 120mm or 2 x 140mm
Bottom: .........................................................3 x 120mm or 2 x 140mm
Rear: ...............................................................1 x 120mm or 1 x 140mm
260mm
600
454mm
Advertisement
Related Manuals for Corsair SERIES 600
Summary of Contents for Corsair SERIES 600
- Page 1 CARBIDE SERIES ® Case Specifications Length: ...................... 454mm Width: ....................... 260mm Height: ...................... 535mm Weight: .......................9.85kg Maximum GPU length: ............... 368mm Maximum CPU cooler height: ............200mm Maximum PSU length: ................ 210mm Radiator compatibility: Front: .............2 x 120mm or 2 x 140mm Bottom: ............3 x 120mm or 2 x 140mm Rear: ...............1 x 120mm or 1 x 140mm 260mm...
- Page 2 CARBIDE SERIES ® Accessory Kit Contents Case Features (x3) Corsair AF140L fans included Bottom triple 120mm or dual 140mm fan mounts compatible with 240/280/360mm radiators Rear 120/140mm fan mount compatible with 120/140mm fan or radiator Front dual 120mm or dual 140mm fan mounts compatible with 240/280mm radiators (x2) USB 3.0, (x2) USB 2.0, Headphone/Mic, Three-speed fan controller, Power/Reset...
- Page 3 CARBIDE SERIES ® 1. Removing the Side Panels (600C) 2. Installing the Motherboard Pull the latch to release the Snap your motherboard’s I/O acrylic side panel, then lift the shield into the cutout. panel off of the hinge. Align the motherboard with the standoffs in the case.
- Page 4 CARBIDE SERIES ® 4. Installing HDDs 6. Installing the Power Supply Step 1 – Place the drive into Remove the thumbscrews the 3.5” drive tray. securing the power supply mounting bracket to the back of the case. 600C_600Q Step 5 Attach bracket to the power supply with screws (included Step 1...
- Page 5 CARBIDE SERIES ® 8. Removing the Front and Top Fascia 10. Connecting the Fan Controller From inside the case, carefully 1. Connect the SATA power push the tabs securing the connector to the PSU SATA front or top to the case, power cable.
- Page 6 CARBIDE SERIES ® Frequently Asked Questions 1. How do I remove the I/O Panel ? 2. Does the polarity matter with the I/O panel’s power and Remove the top panel as mentioned in Step 8: reset header? No, only the LED headers. 3.
