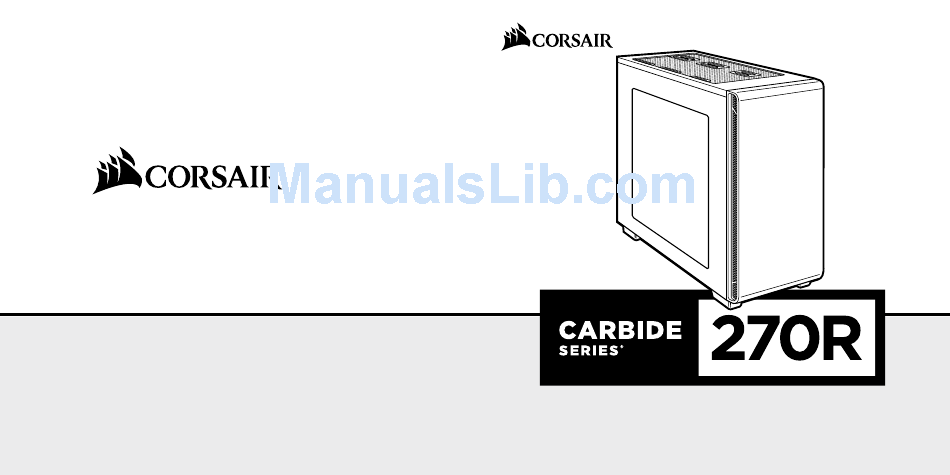

  • Page 1 INSTALLATION GUIDE...
  • Page 2 CARBIDE SERIES 270R Case Specifications Accessory Kit Contents Length: ................509mm Width: ................210mm Height: ................460mm Maximum GPU Length: ...........370mm Maximum CPU Height: ..........170mm Fan screws (short) MBD/HDD screws ODD/SSD screws Motherboard standoffs Maximum PSU Length: ..........225mm 210mm 509mm Cable ties Long fan screws...
  • Page 3 CARBIDE SERIES 270R Case Features Windowed Side Panel Solid Side Panel 120mm Fan 120mm LED Fan (Windowed Version Only) PSU Dust Filter Removable HDD Trays Removable SSD Trays Front Bezel...
  • Page 4 CARBIDE SERIES 270R Removing the Side Panels Installing the Motherboard...
  • Page 5 CARBIDE SERIES 270R Installing HDDs Installing SSDs...
  • Page 6 CARBIDE SERIES 270R Installing PCI-E Cards Installing PSU...
  • Page 7 CARBIDE SERIES 270R Installing the Front I/O Connectors Removing the Front Bezel USB 3.0 HDD LED POWER SW POWER LED – HD AUDIO RESET SW POWER LED +...
  • Page 8 CARBIDE SERIES 270R Frequently Asked Questions 1. Does the polarity matter with the I/O panel’s power and reset header? No, only the LED headers. 2. Where can I mount a fan? Fan Mount Locations Front 3x120mm / 2x140mm 2x120mm / 140mm...
