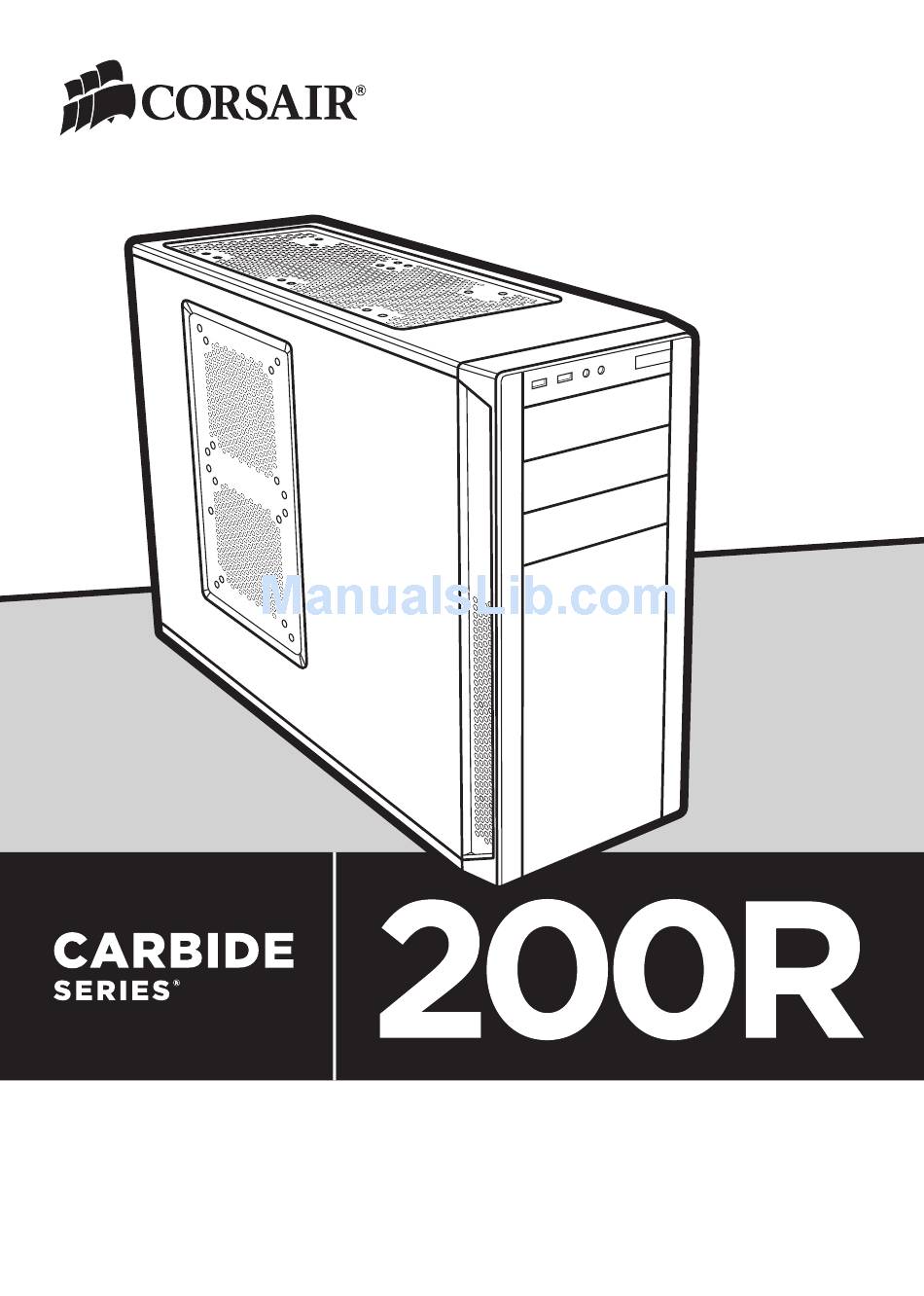

- Page 1 INSTALLATION GUIDE...
- Page 2 Fan screws (long) Easy builds Less work. More play. Build with the Carbide Series 200R and the only time you’ll need to pick up a screwdriver is to install the motherboard. Side panel thumbscrews PCI-E expansion card thumbscrew mounts ...
- Page 3 CARBIDE SERIES 200R MID-TOWER CASE BRILLIANT DESIGN, INSIDE AND OUT ® ™ Dual 120mm/140mm fan mounts Built-in cable routing cutouts compatible with 240mm/280mm radiators Tool-free optical drive bays Dual 120mm/140mm fan mounts Tool-free 3.5" hard drive cage with 2.5" compatibility USB 3.0 (x2) Headphone/Mic, Power/Reset...
-
Page 4: Removing The Side Panels
Removing the side panels Installing the motherboard Install your motherboard’s I/O shield Unscrew thrumbscrews and remove, (see motherboard manual for guidance) then pull side panels outward Align motherboard with the stando s in the case Secure with included screws ( MBD/HDD screws) -
Page 5: Installing The Pci-E/Pci Cards
Installing the Power Supply (PSU) Installing the PCI-E/PCI Cards Remove thumbscrews and corresponding slot cover(s) Place PSU on the bottom of the case Install the add-on card & secure with thumbscrew Align holes & secure with screws NOTE: PSU can be installed in either fan up or fan down orientation... - Page 6 Installing 5.25" Drive/Devices Installing 3.5" HDD/ 2.5" SSD Place the drive into the tool-free cage until you feel it secure Remove the front panel blank for the 5.25" drive bay To remove the drive, pull tab to release Insert the drive, pulling back the tool-free latch until it aligns with the mounting holes on your device, then release...
-
Page 7: Installing Front I/O Connectors
Attach case fan cables to motherboard headers Installing front I/O connectors See motherboard manual for front panel See motherboard manual for fan header locations header locations and pin-outs USB 3.0 HDD LED POWER SW POWER LED – HD AUDIO RESET SW POWER LED +...
