INSTALLATION GUIDE

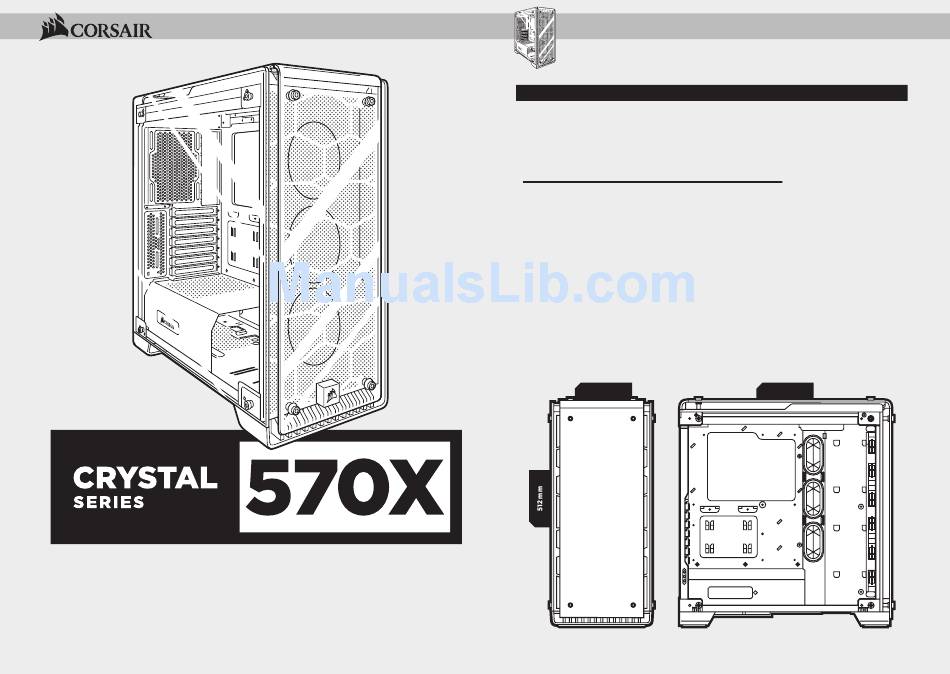

CRYSTAL SERIES 570X
Case Specifications
Length: ...................................................................................................... 480mm
Width: ....................................................................................................... 234mm
Height: ...................................................................................................... 512mm
Maximum GPU length: ....................................................................... 370mm
Maximum CPU cooler height: ......................................................... 170mm
Maximum PSU length: ........................................................................ 225mm
Fan locations:
Front: .........................................................................3 x 120/2 x 140mm
Top: ....................................................................................2 x 120/140mm
Rear: ................................................................................................... 120mm
Radiator compatibility:
Front: ............................................................................... 280mm/360mm
Top: ..................................................................................................... 240mm
Rear: ................................................................................................... 120mm
234mm
480mm
Advertisement
Table of Contents
Related Manuals for Corsair CRYSTAL SERIES 570X
Summary of Contents for Corsair CRYSTAL SERIES 570X
- Page 1 CRYSTAL SERIES 570X Case Specifications Length: ...................... 480mm Width: ....................... 234mm Height: ...................... 512mm Maximum GPU length: ............... 370mm Maximum CPU cooler height: ............170mm Maximum PSU length: ................ 225mm Fan locations: Front: .................3 x 120/2 x 140mm Top: ..................2 x 120/140mm Rear: ....................
- Page 2 CRYSTAL SERIES 570X Accessory Kit Contents Case Features Tempered Glass Side Panels Tempered Glass Front Fascia Tempered Glass Top Panel Dust Filters Rear HDD Mounts Rear SSD Mounts Removable Fan Trays PSU Cover Cable ties MBD/HDD screws SSD/ODD screws (x3) SP120 front fans (570X RGB uses SP120 RGB)
- Page 3 CRYSTAL SERIES 570X 1. Removing the Side Panels 3. Installing HDDs Remove the thumbs screws Step 1 – Place the drive into and pull the side panel off. the 3.5" drive tray. 600C_600Q Step 5 Step 1 Step 2 – Slide the drive and...
- Page 4 CRYSTAL SERIES 570X 5. Installing the Power Supply 7. Removing the Front and Top Panels Install the PSU into the Remove the thumb screws and lower chamber of the case, pull off the glass panel. and secure with four screws from behind.
- Page 5 CRYSTAL SERIES 570X 9. Removing Fan Trays Frequently Asked Questions 1. Does the polarity matter with the I/O panel’s power Unscrew fan tray and slide out from chassis to install fans and and reset header? radiators outside of chassis. No, only the LED headers.
