Summary of Contents for Studer Xcom-GSM

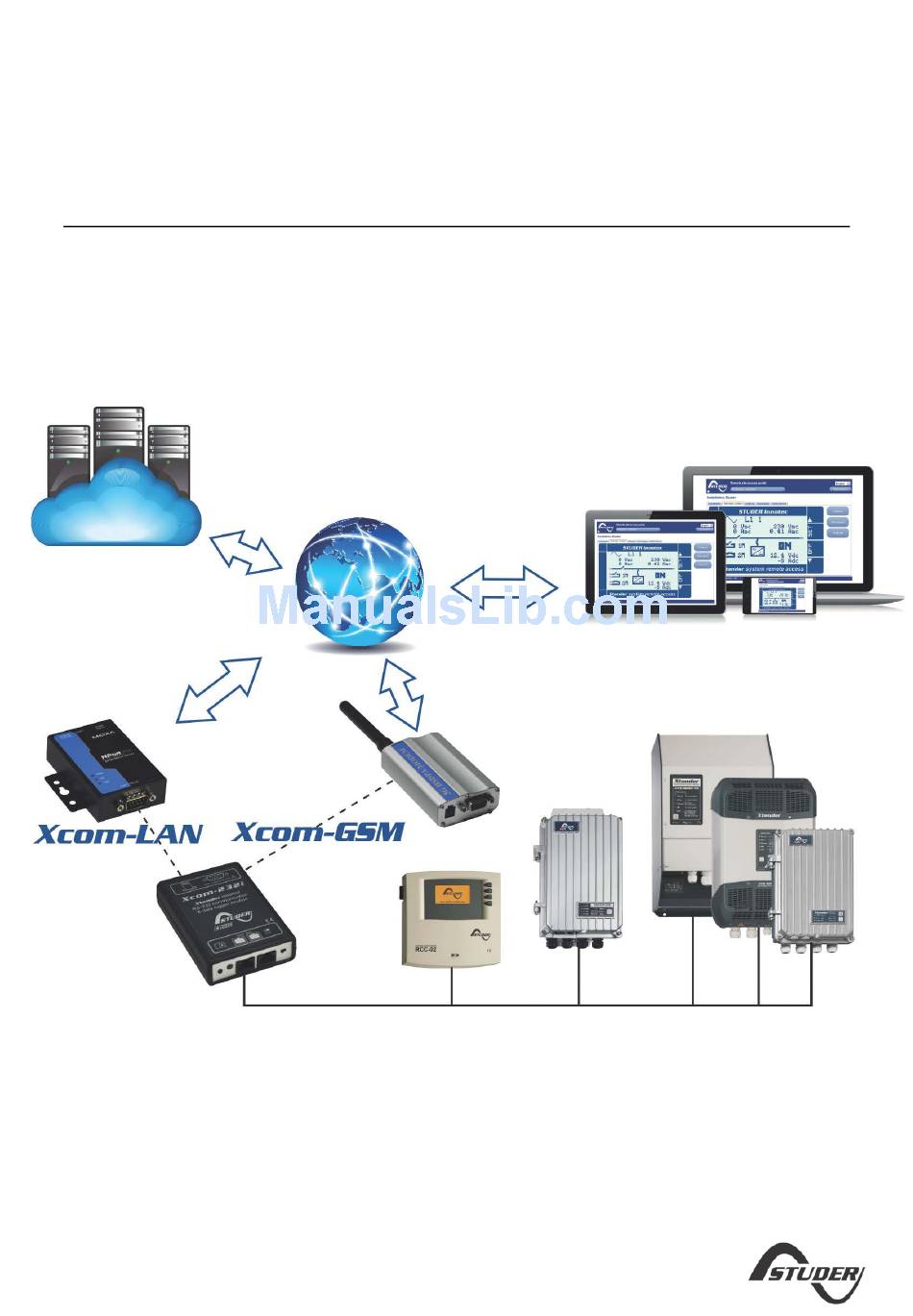

- Page 1 Xcom-GSM / Xcom-LAN Remote communication sets for Xtender and VarioTrack systems User Manual Studer Innotec SA 2013 V1.0.5...
- Page 2 Studer Innotec SA Xcom-GSM/Xcom-LAN V1.0.5 User manual...
-
Page 3: Table Of Contents
MOUNTING AND INSTALLATION ......................7 Installation of the Xcom 232i ......................7 WIRING ..............................7 Xcom-GSM set ............................7 3.1.1 Contents of the remote communication set Xcom-GSM ............8 3.1.2 Mounting place ..........................8 3.1.3 Installing the SIM card ........................8 3.1.4... - Page 4 Studer Innotec SA Xcom-GSM/Xcom-LAN V1.0.5 User manual...
-
Page 5: Introduction
Xcom-LAN, for systems connected to a wired Local Area Network giving access to the internet WEB Xcom-GSM, for systems with no available LAN but access to the GSM network, either by GPRS (worldwide) or by 3G (WCDMA). The present manual is valid for both the Xcom-LAN and Xcom-GSM remote communication sets. -
Page 6: Exclusion Of Warranty
Installation, commissioning, use and maintenance of this device cannot be supervised by Studer Innotec SA. For this reason, we do not accept any liability for damage, costs or losses resulting from an installation that does not comply with the instructions, by a faulty operation or by inadequate maintenance. -
Page 7: Mounting And Installation
3.1 X -GSM In order to install the Xcom-GSM set, there need to be sufficient GSM network coverage on the site of the Xtender or VarioTrack system. The network also has to conform to one of the following standards: GSM / GPRS / EDGE / UMTS / HSDPA on these frequencies 850 / 900/ 1800 / 1900 / 2100 MHz. -
Page 8: Contents Of The Remote Communication Set Xcom-Gsm
Studer Innotec SA Xcom-GSM/Xcom-LAN 3.1.1 Contents of the remote communication set Xcom-GSM The remote communication set Xcom-GSM is delivered with the material listed below: 1 Xcom-232i • 2m communication cable • 1 MicroSD with adaptor • 1 M400 cellular modem •... -
Page 9: Xcom-Lan Set
2) Connect the serial cable between the Ethernet gateway and the Xcom-232i 3) Connect the power cable between the Ethernet gateway and the Xcom-232i 4) Connect the Studer communication cable between the Xcom-232i and the Xtender or VarioTrack installation The termination switch next to the 2 RJ 45 connectors on the Xcom-232i must be set in position T. -
Page 10: Configuring The Xcom-232I
The use of a RCC-02/03 will facilitate the installation of the Xcom-232i. It will show messages in case of error. 4.1 D OWNLOAD THE SOFTWARE Figure 4.1 : Studer Innotec SA website Go on the Studer Innotec website: http://www.studer-innotec.com -> Support -> Download Center -> Softwares and Updates Download the package "Xcom Configurator". -
Page 11: Set The Parameters
Generate the configuration file Figure 4.3 : Choose Ethernet mode 4.4.2 For Xcom-GSM To use the Xcom-232i with the GSM modem, choose “Modem” as serial port mode. Then enter the "Access Point Name" (APN) of the internet service provider (ISP). If the ISP requires a username and a password, use them to fill in the fields "Access Point User Name"... -
Page 12: Generate The Configuration File
Studer Innotec SA Xcom-GSM/Xcom-LAN Example for Swisscom in Switzerland: Figure 4.5 : Example with parameters for Swisscom 4.5 G ENERATE THE CONFIGURATION FILE If the parameters were successfully set, this message box will appear: Figure 4.6 : Parameters set and successful generation of GUID Close the message box and a text file with your GUID will appear. -
Page 13: Remove The Sd Card
Studer Innotec SA Xcom-GSM/Xcom-LAN If an error occurs during the GUID generation, this message box will appear. Please verify that the selected drive for the SD card is correct. If an adaptor is used for the SD card, please verify that there is no lock protection. -
Page 14: Creation Of Your Account
Studer Innotec SA Xcom-GSM/Xcom-LAN 4.8 C REATION OF YOUR ACCOUNT To access the installation remotely, the web portal https://xcom.studer-innotec.com provided free of charge. To set up a user account on this web portal, please follow the instructions below. If a user account already exists, please proceed to chapter “4.9 Registration of installation”. -
Page 15: Registration Of Installation
Studer Innotec SA Xcom-GSM/Xcom-LAN 4.9 R EGISTRATION OF INSTALLATION In order to access the installation you need to enter the GUID previously generated for your installation, see chapter 4.5. 1. Click on the button "Add a new installation". 4.12 : "Add a new installation" button 2. -
Page 16: Installation Completed
Xcom-GSM/Xcom-LAN 4.10 I NSTALLATION COMPLETED The installation is now completed and you can access your system from anywhere with internet access through Studer’s web portal https://xcom.studer-innotec.com XCOM PORTAL The user interface has been conceived to be simple and intuitive. 5.1 H The home page lists all available installations to the logged-in user divided into two categories. -
Page 17: Notes
Studer Innotec SA Xcom-GSM/Xcom-LAN NOTES ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________... - Page 18 Studer Innotec SA Xcom-GSM/Xcom-LAN ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________...
- Page 19 Studer Innotec SA Xcom-GSM/Xcom-LAN User Manual V1.0.5...
- Page 20 Studer Innotec SA Rue des Casernes 57 1950 Sion – Switzerland Tel. : +41(0) 27 205 60 80 Fax : +41(0) 27 205 60 88 info@studer-innotec.com www.studer-innotec.com...
