EU DECLARATION OF CONFORMITY ....................6 INSTALLATION ............................7 Mounting ............................. 8 3.1.1 Connecting the communication bus ................8 DESCRIPTION OF THE COMMUNICATION MODULE XCOM-232I ............. 9 Front ..............................9 Back ..............................11 MicroSD card ............................ 11 RS-232 COMMUNICATION ....................... 12 DATA LOGGER ...........................
During production and assembling, each Xcom-232i gets several controls and tests. They are carried out in full respect of fixed procedures. Each Xcom-232i is given a serial number allowing a perfect follow-up of the controls, in conformity with the specific data of every device. For this reason, it is very important to never remove the descriptive sticker bearing the serial number.
Installation, commissioning, use and maintenance of this device cannot be supervised by the company Studer Innotec SA . For this reason, we do not accept any liability for damages, costs or losses generated either by an installation that is not conforming to the prescriptions, by a defective operation or by poor maintenance.
Studer Innotec SA Xcom-232i EU DECLARATION OF CONFORMITY The communication module Xcom-232i described in this manual meets the requirements specified in the following EU directives and norms: Low Voltage Directive (LVD) 2014/35/EU - EN 62368-1:2014 Electromagnetic Compliance (EMC) Directive 2014/30/EU...
Xcom-232i INSTALLATION The Xcom-232i is to be mounted as close as possible to the supervision or SCADA control system (PC, programmable logic controller, microcontroller) due to the more restrictive limits of the RS- 232 connection as compared with the Xtender communication bus.
Xcom-232i OUNTING The Xcom-232i can be mounted directly on any support by means of the supplied fixing plate, on a smooth surface with double-side adhesive (see Figure 9 (p. 16)) or on a DIN rail using the supplied DIN clips.

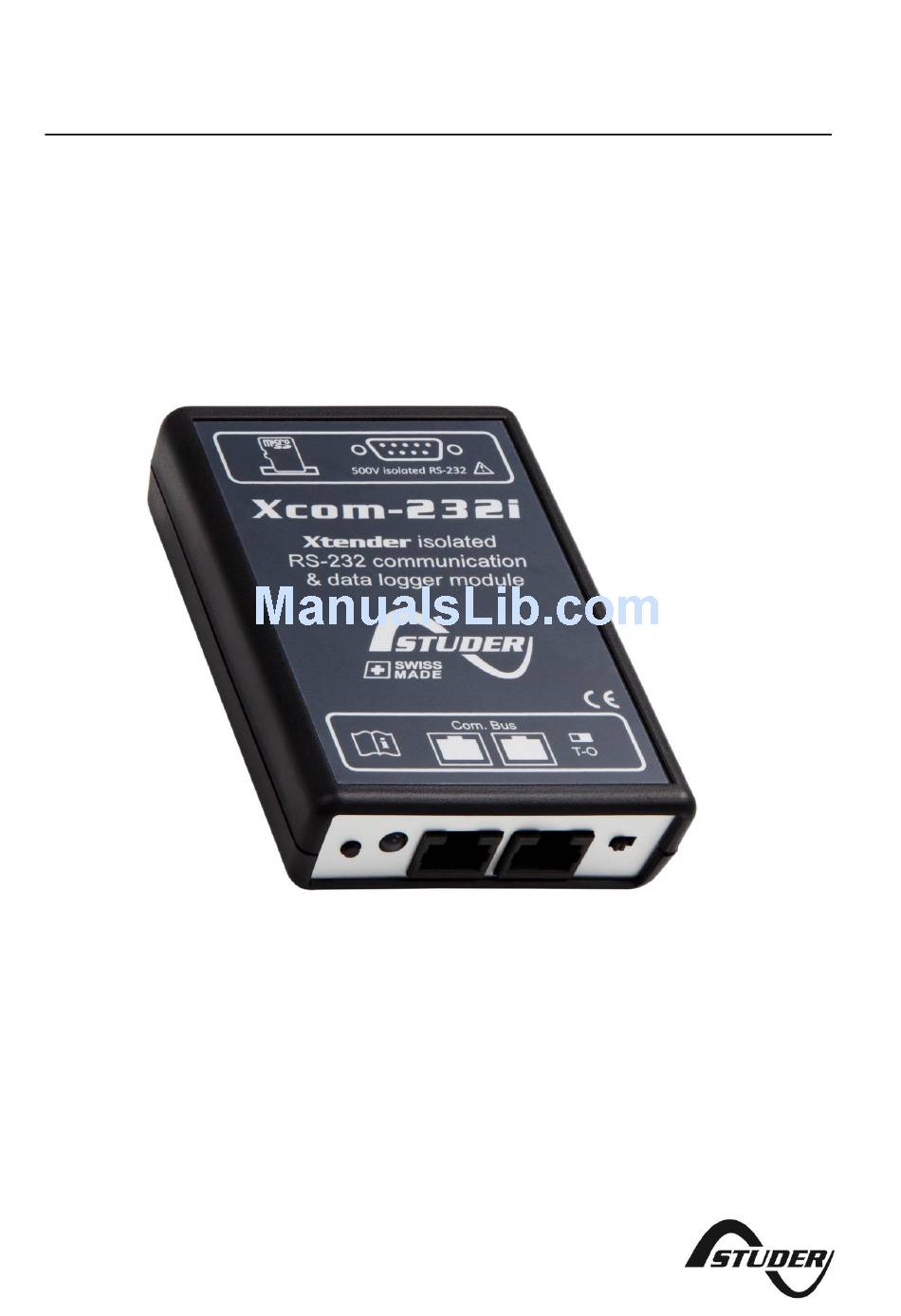

Xcom-232i DESCRIPTION OF THE COMMUNICATION MODULE XCOM-232I The communication module Xcom-232i consists of different parts with various functions. Here below, you will find the description of each part and of its function(s). RONT Front and isometric view of the Xcom-232i...
Page 10
Studer Innotec SA Xcom-232i MicroSD card full: If the Xcom-232i detects that the MicroSD card is full, the signalisation LED blinks in red with a cyclical ratio of 10 % (Ton = 10 % | Toff = 90 %). Data logging: When the data logging function is activated, the signalisation LED is green (Ton = 100% | Toff = 0 %).
HC. It is incompatible with MicroSD XC cards as well as cards with a capacity higher than 32 GB. Update of a remote RCC-02/-03 or of another Xcom-232i must be done directly on the connected device. User manual V 1.3.0...
Xcom-232i RS-232 COMMUNICATION The Xcom-232i is equipped with a serial port RS-232 which makes it possible to view and to program remotely one or several Xtenders operating in a system. This serial port allows to read all information that can be displayed on the remote control’s screen and also to modify the configuration parameters.
SA offers two different analysis tools. The Xtender data analysis tool is of Microsoft® Excel® 2007 type which allows reading the CSV files generated by the Xcom-232i. This tool shapes and gathers the data of each Xtender and then displays them graphically. In this way the data become readable and understandable at a glance.
Xcom-232i SOFTWARE UPDATING In order to benefit from new functionalities make sure to update the Xcom-232i software from time to time as well as the software of the other integrated products of the Xtender system (Xtender inverter/chargers, VarioTrack and VarioString MPPT solar charge controllers and BSP Battery status processors).
