Summary of Contents for NetCommWireless NTC-400 Series

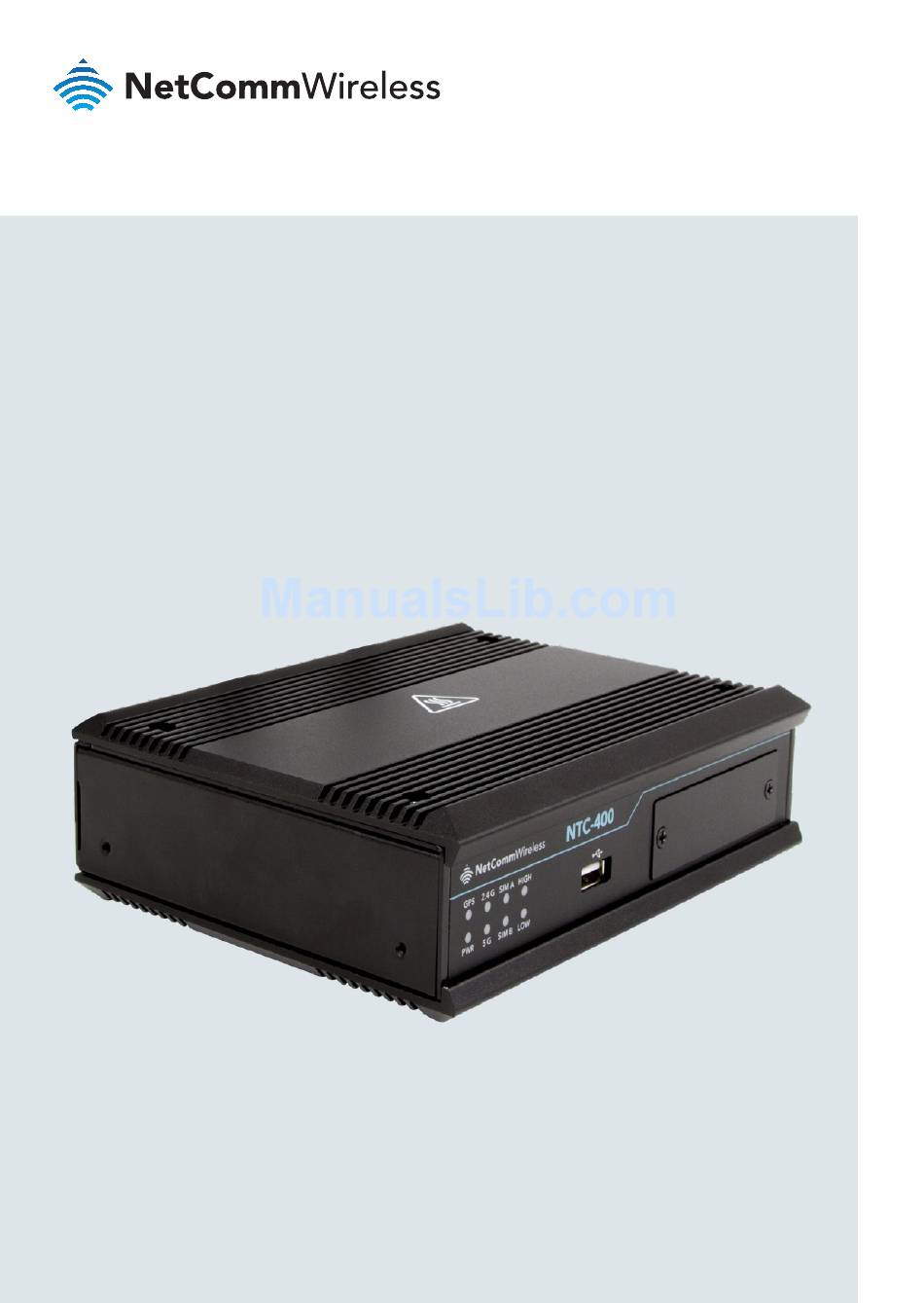

- Page 1 Quick Start Guide NTC-400 Series Router...
- Page 2 This quick start guide is designed to get you up and running quickly and familiarise you with the NTC-400 Series router. More advanced set up instructions are provided in the user guide which can be downloaded from http://www.netcommwireless.com/product/m2m/ntc-400...
-
Page 3: Package Contents
NTC-400 Series Router Package contents The NTC-400 Series package includes: 1 x NTC-400 Series Router 1 x Quick Start Guide 2 x 2.4GHz / 5GHz 2 x Wall mounting WiFi antennas brackets 1 x 8-pin Terminal block 4 x Wall mounting... -
Page 4: Terminal Block
Terminal block The 8-pin Terminal block provides the following interfaces: Power (PWR) Ground (GND) Ignition (IGN) Digital Input 1 (DI-1) Digital Input 2 (DI-2) Digital Output (DO) RS232 Serial (TX/RX) -
Page 5: Power Requirements
NTC-400 Series Router Power requirements The NTC-400 Series router accepts DC power in the range of 9 V to 36 V. Follow the above illustration to ensure that the power source is connected with the correct polarity. I/O specifications MODE... -
Page 6: Sim Cards
SIM cards SIM cards are inserted into the SIM slots located on the front panel of the device. To access the SIM card slots, remove the protective plate using a screwdriver. NOTE: SIM B is disabled on units purchased through Telstra. On these units, insert the SIM card into slot A. -
Page 7: Configuring The Router
1. Connect and power up the NTC-400 Series router. 2. Connect a standard straight-through Ethernet cable to your client PC and the other end to any of the LAN ports on the back of the NTC-400 Series router. Continue to the “Accessing the web interface” section. -
Page 8: Unlocking The Sim Card
Unlocking the SIM card If the inserted SIM card is PIN locked, navigate to Basic Network > WAN & Uplink > Internet Setup > WAN-1 > Edit > Connection with SIM-A / SIM B card > PIN Code to enter the PIN Code. Click the Save button to save your changes. - Page 9 NTC-400 Series Router Updating the APN The default connection profiles for both SIM-A and SIM-B are configured for manual configuration. If the SIM you have inserted is from a carrier that allows a blank APN, the router should automatically connect to the Internet. However, if you wish to configure the APN manually, navigate to Basic Network >...
-
Page 10: Connection Status
Verifying the connection status When the NTC-400 Series router is connected to the Internet, the “HIGH” or “LOW” LED on the front of the device lights up to indicate the current signal strength. To check the connection status from the web interface, navigate to Status >... -
Page 11: Mounting The Router
NTC-400 Series Router Mounting the router Attach the mounting brackets to the sides of the NTC-400 Series router with the supplied screws as shown below. - Page 12 Product Warranty For warranty information please visit http://www.netcommwireless.com/product/ntc-400 Safety and product care Please refer to the user guide for safety and product care information. NETCOMM WIRELESS LIMITED ABN 85 002 490 486 Head Office, 18-20 Orion Road Lane Cove, Sydney, NSW 2066, Australia...
